LG A2UH146FA0 - Page 20

20 Free Joint Multi Air Conditioner

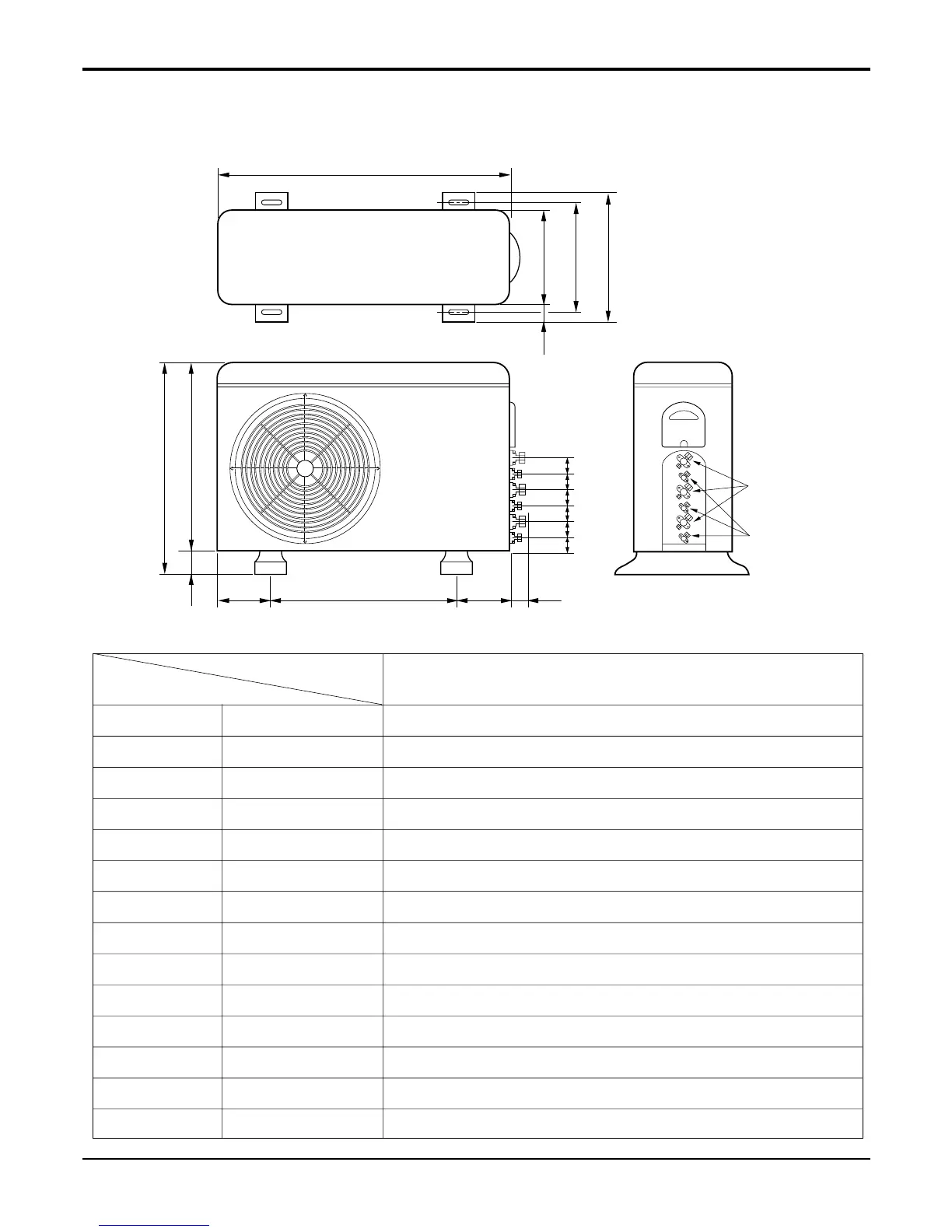

Dimensions
W
L6L7 L8 L9
L4
H
D
L1
L2
L3
L5
L10
Gas side
3-way valve
Liquid side
2-way valve
L11 L11 L11L11L11
2-3 A3UC216FA0, A3UH216FA0
W mm 870
H mm 655
D mm 320
L1 mm 360
L2 mm 340
L3 mm 25
L4 mm 630
L5 mm 25
L6 mm 546
L7 mm 160
L8 mm 160
L9 mm 44
L10 mm 64.5
L11 mm 50
A3UC216FA0, A3UH216FA0
MODEL
DIM
