Service Manual 61
R
R
R
1
2
• Before working, refer to "Connecting pipe
and cable to Indoor Unit".
R
Inlet hanger
Hook
Cabinet Bottom

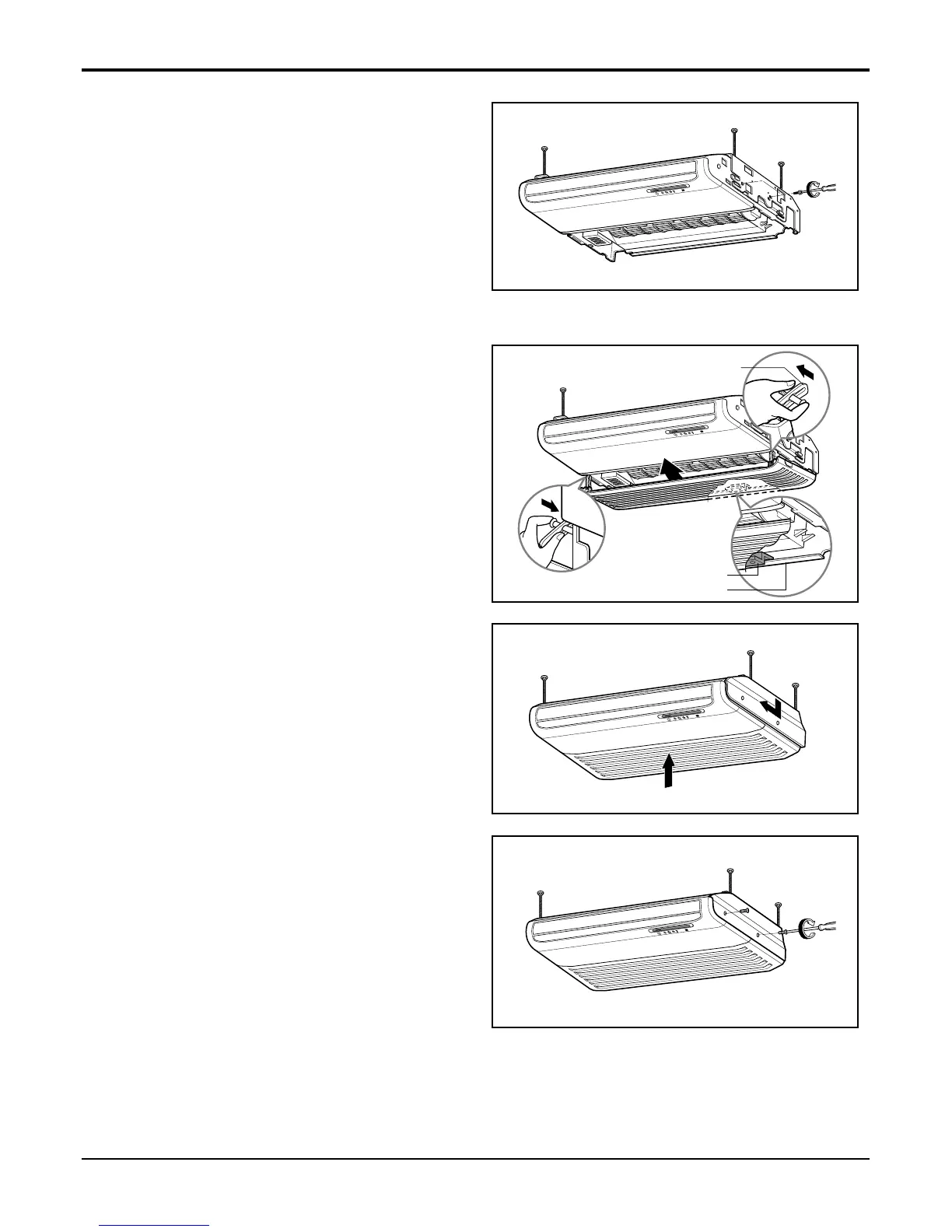

• Secure the unit to the Installation Plates with four M8
bolts and washers.
• Hook up the Inlet Grille Hook to the cabinet.
• Hang the Inlet Hanger to the screw.
• Fit the projection hooks of the side plates to the 'Side
Panel' and the 'Front Panel' by lifting it.
• Fasten the screws.
Installation
