Maximum Length of Pipe and Extra Charge of Refrigerant Charge
Installation
It does not matter which unit is higher.
Standard Length
A,B,C,D A B C D
A2UW146FA0/1/2
A2UW166FA0/1
A2UW186FA0
A3UW186FA0/1
7.5m 25m 25m - - 40m(A+B)
7.5m 20m 20m - - 30m(A+B)
A3UW246FA0
A4UW246FA0
7.5m 25m 25m 25m - 50m(A+B+C)
A4UW306FA0 7.5m 25m 25m 25m 25m 70m(A+B+C+D)
Max piping length each indoor unit
Model
[Outdoor Unit]
Max total piping length

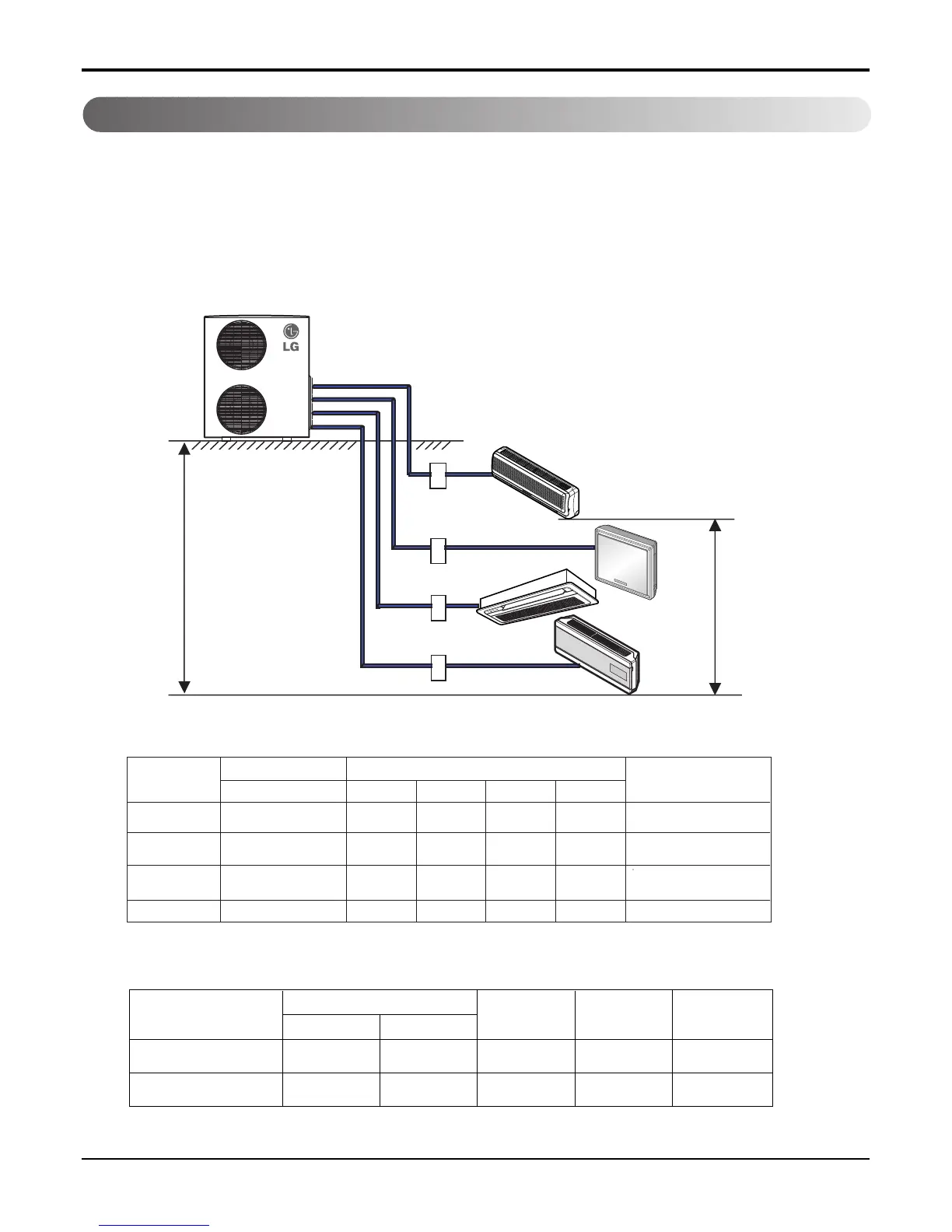

1.1 The maximun allowable level and piping length
15m
7.5m
A
B
C
D
[Outdoor Unit]
[Indoor Unit]
1. TPS Inverter Multi -Multi Piping Type
Indoor Unit Capacity Pipe Size Rated Max Additional
(Btu/h)
Gas Liquid
Length Length Refrigerant
7k, 9k, 12k 3/8"(9.52mm) 1/4"(6.35mm) 7.5m 25m 25g/m
18k, 24k 1/2"(12.7mm) 1/4"(6.35mm) 7.5m 25m 35g/m
1.2 Refrigerant Charge
❈ Extra refrigerant = (Extended length - Rated length) x Additional refrigerant
