Installation
- B1, B2 Chassis
Installation of Unit
Install the unit above the ceiling correctly.
• Apply a joint-canvas between the unit and duct to absorb
unnecessary vibration.
• Apply a filter Accessory at air return hole.
• Install the unit leaning to a drainage hole side as a figure
for easy water drainage.
• A place where the unit will be leveled and that can support
the weight of the unit.
• A place where the unit can withstand its vibration.
• A place where service can be easily performed.

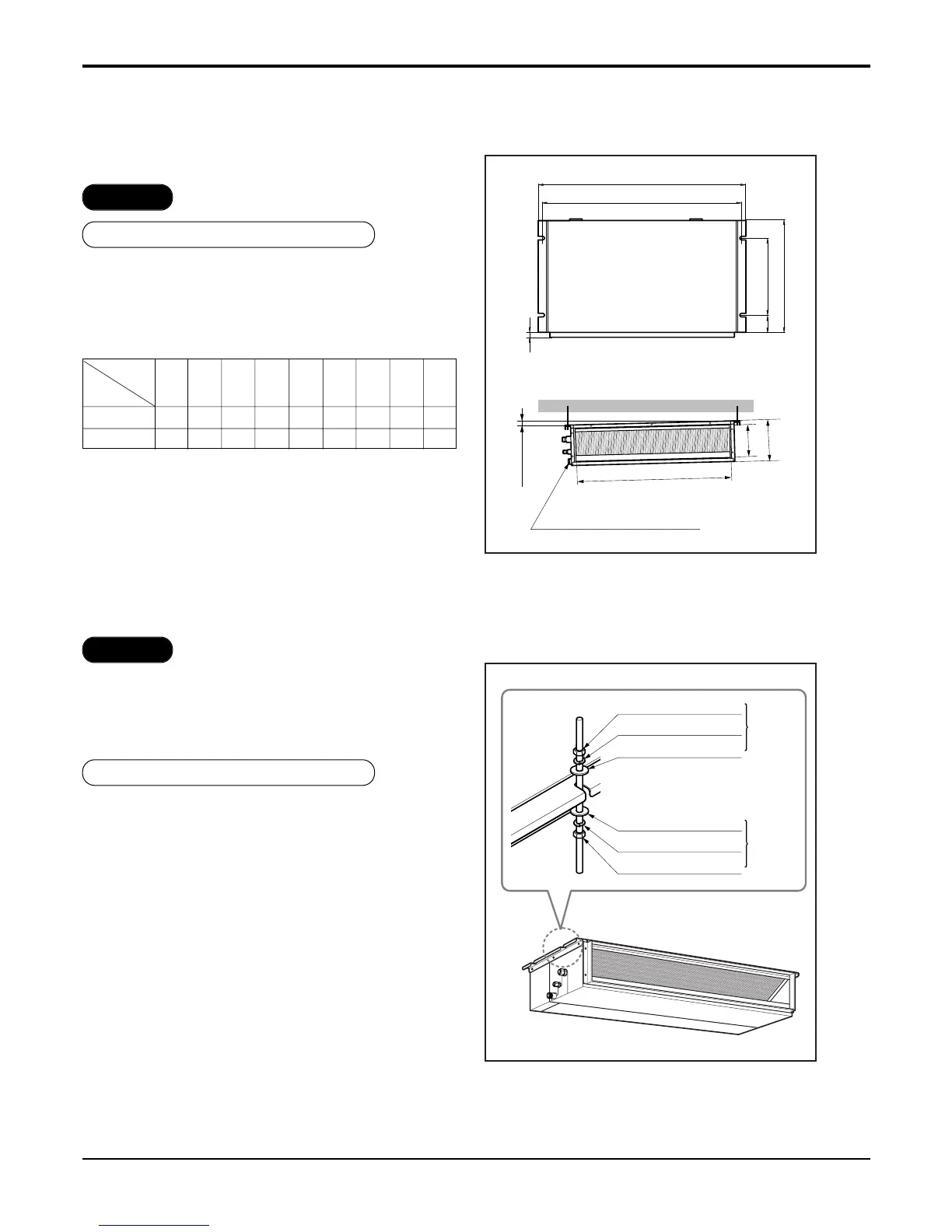

CASE 1
POSITION OF SUSPENSION BOLT
(Unit:mm)
9/12k BTU/h 850 900 383 570 93.5 190 20.6 795 163
18/24k BTU/h 1130 1180 383 570 93.5 190 20.6 1065 163
Dimension
Capacity
ABCDEFGH I
CE
G
D
A
B
M10 Nut
M10 SP. washer
M10 washer
X 4
X 4
(Local
supply)
X 4
M10 Nut
M10 SP. washer
M10 washer
X 4
X 4
(Local
supply)
X 4
1/100
I
F
H
Drainage hole
CASE 2
POSITION OF CONSOLE BOLT
