Installation
Installation
(1) Total main piping length A+B 15 50 50 50
(2) Total branch piping length
L1+L2+L3+L4+L5+L6+(L7)+(L8) 50 50 60 60
(3) Max. each branch piping length L1, L2, L3, L4, L5, L6, L7,L8 15 15 15 15
(4) Total system piping length (Total main) + (Tatal branch) 65 100 110 120
(5) Maxium Level in - out h1 15 30 30 30
(6) Maxium Level in - in h2 7.5 10 10 10
No. Length 4 room 6 room 7 room 8 room
(m)
• This unit may be installed suspended from the ceiling or mounted on the wall.
• This unit may only be installed horizontally , as shown in the diagram below. (Side B is facing up) However, it may
be freely installed in any direction, forward or backward, and to the sides.
• Be sure to secure a 600mm square opening for service and inspection as shown in the diagram below, for both
ceiling - suspended installation and wall-mounted installation.
• BD unit does not require drain treatment as it uses internal insulation.
• Service direction is the side B and C
• The piping for the indoor unit may be led around in direction A
• The inclination of side B must be within ±5 degree forward or backward or to the sides.
5030
(111)
Min 30
Min 400
Min 400
(Servicing space)
(Side view)
(Bottom view)
B
C
505050
505050
(56)
50
(38)
(36)
Main Pipe
Cover ControlBranch Pipe
60300
432
72
(150)
Inspection opening
600
250 or more
600
(298)
250
Ø19.05
Ø9.52
Suspension bolt pitch.
245
(337)
A
(LEV service)
(Controller service)

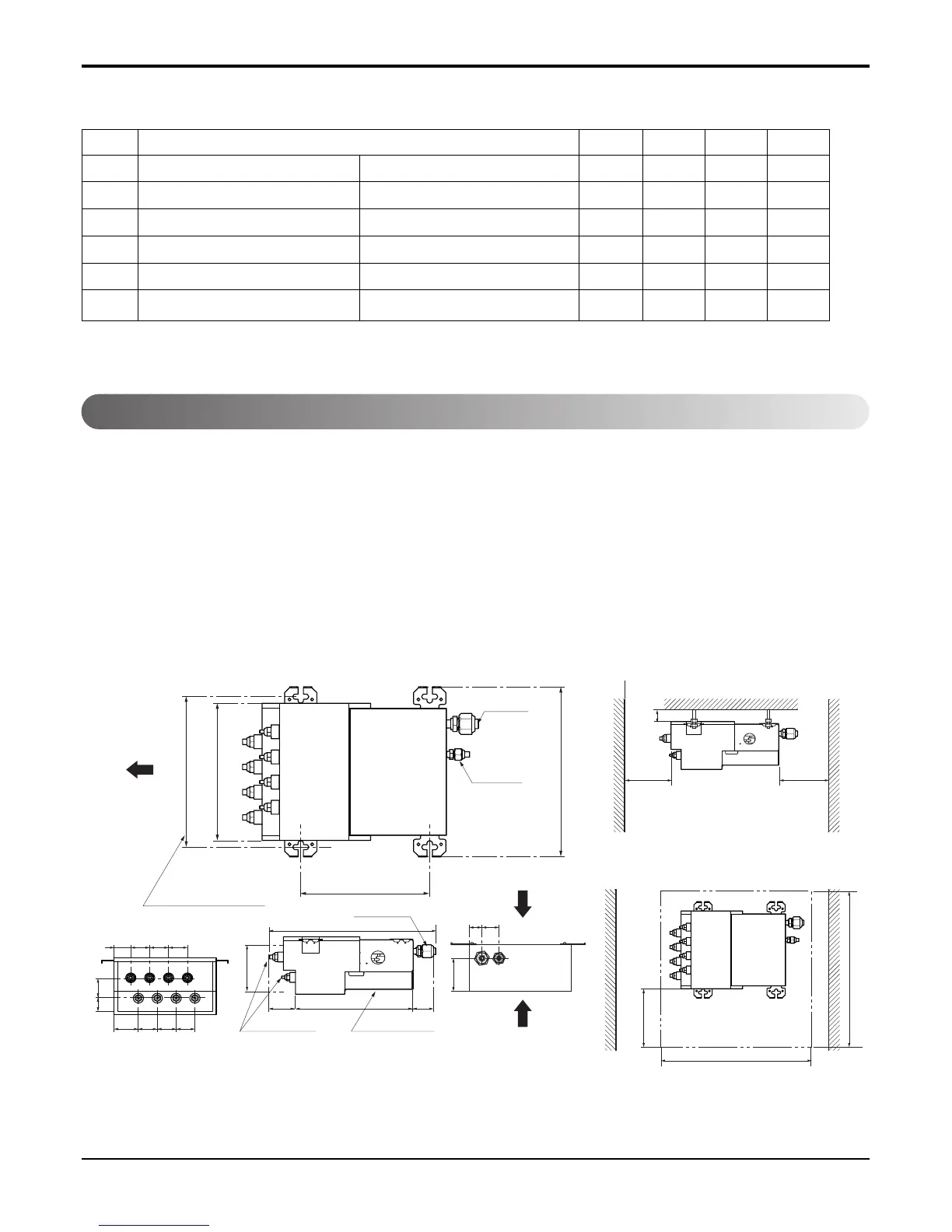

Piping length and elevation
