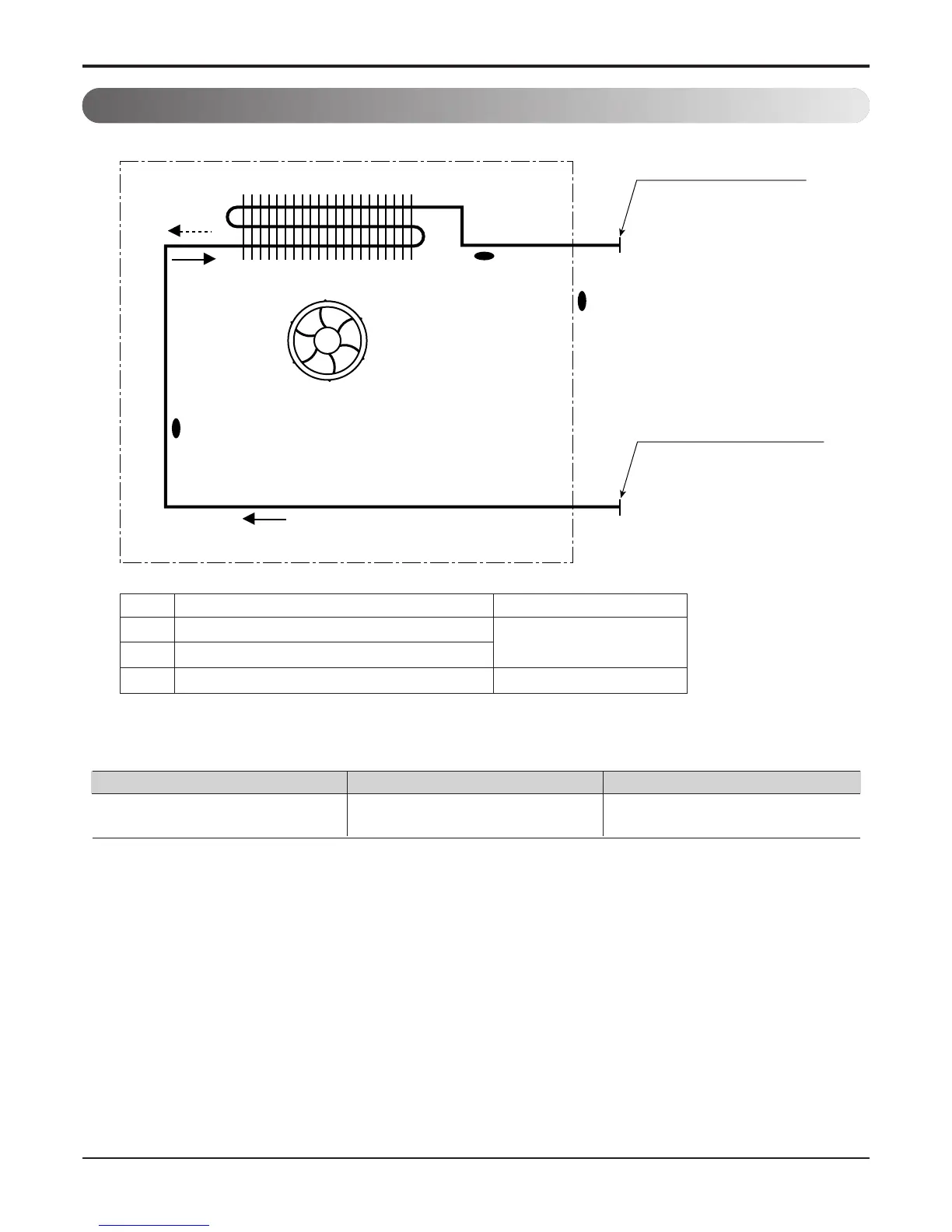

3. Piping Diagrams
Heat exchanger
Gas pipe connection por
t
(flare connection)
Liquid pipe connection por
t
(flare connection)
Cooling
Heating
Turbo fan
Th3
Th1
Th2
LOC. Description PCB Connector
Th1 Thermistor for sunction air temperature
CN-TH1(Indoor)
Th2 Thermistor for evaporator inlet temperature
Th3 Thermistor for evaporator outlet temperature CN-TH2(Indoor)
■ Refrigerant pipe connection port diameters
Model Gas Liquid
AMNW09GAF11[LMAN097HVP]
Ø9.52 Ø6.35
AMNW12GAF11[LMAN127HVP]
[Unit : mm]
