- 5 -
Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

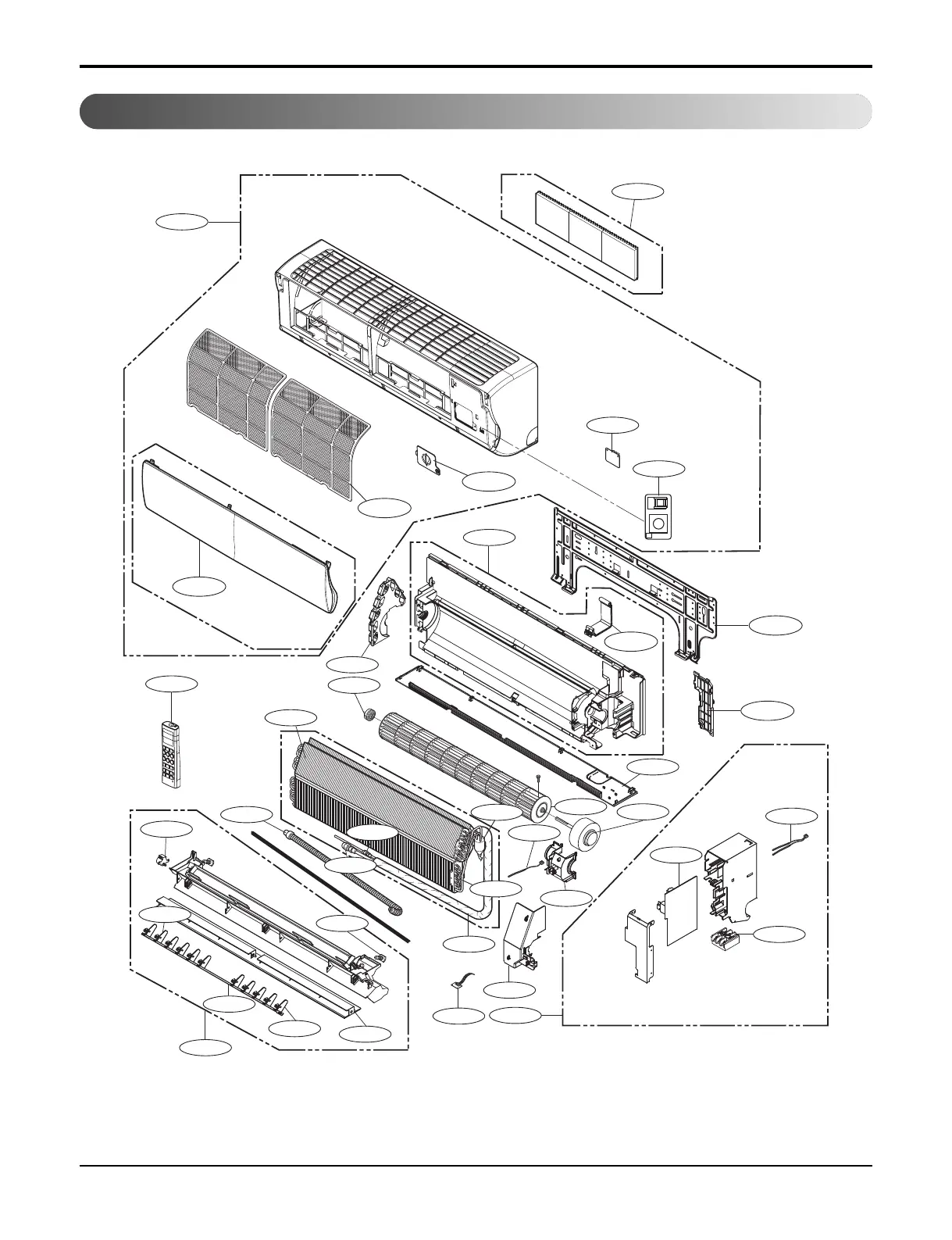

4. Exploded View
263230C
131410
152302
135500B
237202
268711B
346810
135080
135500C
147581
147582B
352150
354210
249951
342800
149304
35211B
749740
135311
145200
359011
146811B
W50400
733010
135500A
149303
W6640A
268711D
135316
152313
263230A
268711G
267110
147582A
W51620A
W51620B
352115
352116
268711J
Note) * Please ensure GCSC since the replacement parts may be changed depending upon the buyer’s request.
Please check the correct parts in View RPL(Replacement Part List) on GCSC.
(GCSC Website http://www.lge.com)
