Outdoor Unit information
Installation of Outdoor Unit
• If an awning is built over the unit to prevent direct sunlight or rain exposure, make sure that heat
radiation from the condenser is not restricted.
• Ensure that the spaces indicated by arrows around front, back and side of the unit.
• Do not place animals and plants in the path of the warm air.
• Take the air conditioner weight into account and select a place where noise and vibration are minimum
• Select a place so that the warm air and noise from the air conditioner do not disturb neighbours.

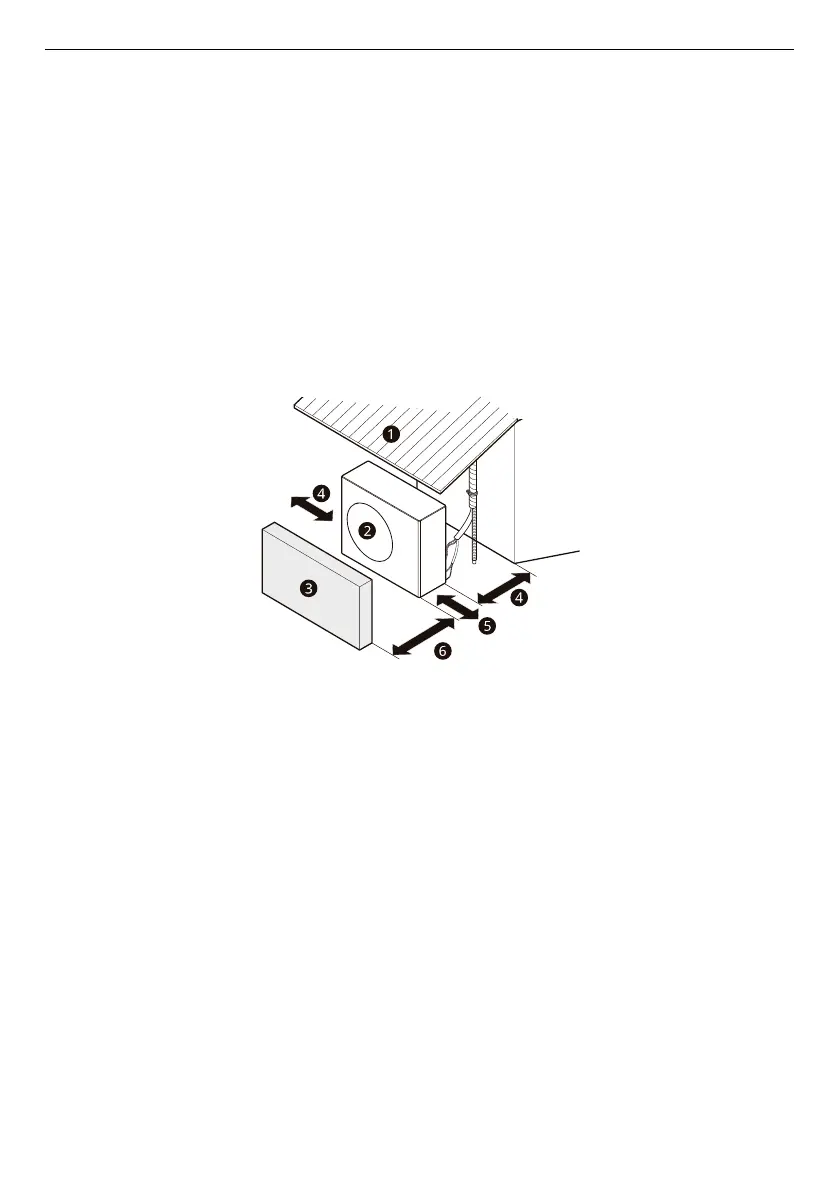

a
Awning
b
Outdoor unit
c
Fence or obstacles
d
More than 300 mm
e
More than 600 mm
f
More than 700 mm
