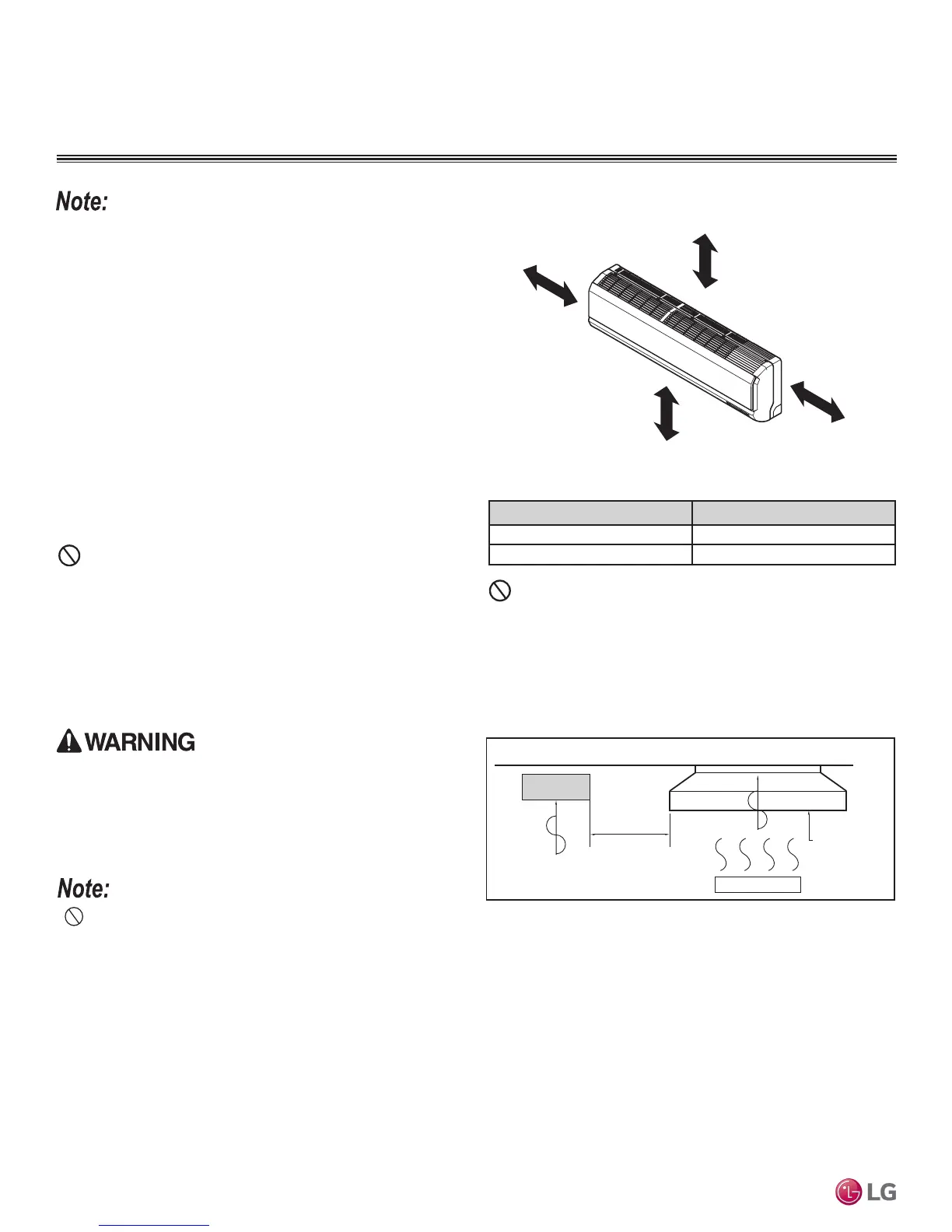

GENERAL INSTALLATION GUIDELINES
Required Indoor Unit Clearances
Follow recommended best practices when choosing an indoor location
for the single zone indoor unit.
Dos
• Follow the table at right for minimum clearance of indoor unit from
the top of the unit to the ceiling.
• Clearance gap between any wall or enclosure and the left or right
side of the unit must be greater than 4 inches. Ensure there is
sufficient maintenance space.
• Unit must be at least 6.5 feet from the floor for adequate clearance.
• Place the unit where drainage can be obtained easily. Condensa-
tion drain must be conveniently routed away from the unit.
• Locate the indoor unit in a location where it can be easily connect-
ed to the outdoor unit within allowable limits.
• Use a metal detector to locate studs in the walls. Anchor unit
following stud location to prevent damage to the wall.
Dont’s
• Do not install the unit near a heat or steam source, or where consid-
erable amounts of oil, iron powder, or flour are used. (These materi-
als may generate condensate, cause a reduction in heat exchanger
efficiency, or the drain to malfunction. If this is a potential problem,
install a ventilation fan large enough to vent out these materials.)
• Do not install near doorway.
• Avoid installing the unit near high-frequency generators.
The unit must not be installed where sulfuric acid and ammable or
corrosive gases are generated, vented into, or stored. There is risk of
re, explosion, and physical injury or death.
The unit may be damaged, may malfunction, and / or will
not operate as designed if installed in any of the conditions
listed.
Installing in an Area Exposed to Unconditioned Air
In some installation applications, areas (floors, walls) in some rooms may be exposed to unconditioned air (room may be above or next to an
unheated garage or storeroom). To countermeasure:
• Verify that carpet is or will be installed (carpet may increase the temperature by three [3] degrees).
• Add insulation between the floor joists.
• Install radiant heat or another type of heating system to the floor.
Install a ventilation fan
with sufficient capacity
Heat or steam source
Include enough
distance
Indoor Unit
Figure 11: Installing Near a Heat or Steam Source.
Minimum clearance
from ceiling - “A”
More than 4 inches
More than
4 inches
At least 6.5 feet from the floor
Figure 10: Single Zone Art Cool Mirror Wall Mount Indoor Unit Clearance
Requirements.
“A” Ceiling Clearance (inches) Indoor Unit Model(s)
5 LAN090HSV5, LAN120HSV5
8 LAN180HSV5, LAN240HSV3
Table 6: Single Zone Art Cool Mirror Indoor Unit Ceiling Clearances.
Dont’s
• Ensure there are no obstacles to air circulation around the unit; keep
proper distances from ceilings, doorways, floor, walls, etc.
• Do not install in an area where operation sound will disturb occu-
pants--place the unit where noise prevention is taken into consid-
eration
• Indoor units (IDUs) must not be placed in an environment where the IDUs may be exposed to harmful volatile organic compounds (VOCs)
or in environments where there is improper air make up or supply or inadequate ventilation. If there are concerns about VOCs in the envi-
ronment where the IDUs are installed, proper air make up or supply and/or adequate ventilation must be provided. Additionally, in buildings
where IDUs will be exposed to VOCs, consider a third party factory-applied epoxy coating to the fan coils for each IDU where the entire coil
is dipped, not sprayed.
• If the unit is installed near a body of water, the installation parts are at risk of corroding. Appropriate anti-corrosion methods must be taken for
the unit and all installation parts.
