GENERAL INSTALLATION GUIDELINES
• Go to the Refrigerant Piping Connections section of this manual for information on indoor unit piping connection installation. See also the
Refrigerant Piping Connections section for drain piping installation.
• Go to the Electrical Installation section of this manual for information on electrical wiring to the indoor unit.
• After all Refrigerant Piping and Electrical Connection procedures are complete, snap the L-bracket closed, and secure the indoor unit to the
installation plate as detailed in Steps 5 and 6 in “Mounting the Indoor Unit to the Installation Plate” on the previous page.
1. To prepare the indoor unit for piping and electrical installation,
disengage bottom on indoor unit from installation plate by
reversing Steps 6, 5, and 4 from the previous procedure, if those
procedures have been performed.
2. Unsnap the piping / drain hose holder (L-bracket) out from the
indoor unit chassis. Prop it open between the indoor unit chassis
and installation plate to separate the bottom of the indoor unit
from the wall. This will allow for more working space.

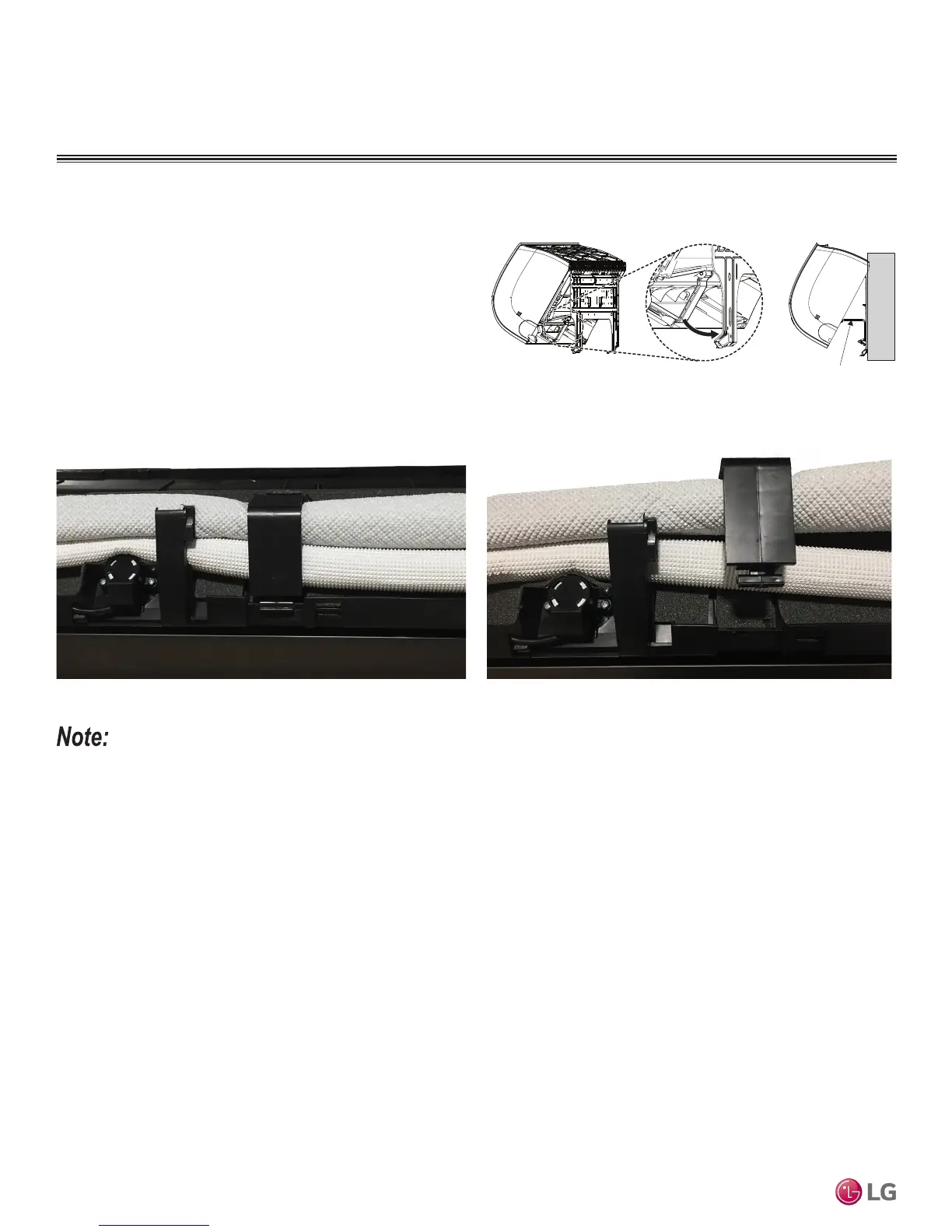

Figure 24: L-bracket Closed (Appearances May Vary Depending on
Indoor Unit Model).
Figure 23: Mounting the Indoor Unit on Installation Plate.
Piping / Drain Hose Holder
Preparing for Piping / Electrical Connections
Figure 25: L-bracket Open (Appearances May Vary Depending on Indoor
Unit Model).
Indoor Unit Mounting
To Next Page
