LG ART COOL LA090HSV5 User Manual

50
Single Zone Art Cool
TM
Mirror Wall Mount Installation Manual
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
ELECTRICAL SYSTEM INSTALLATION

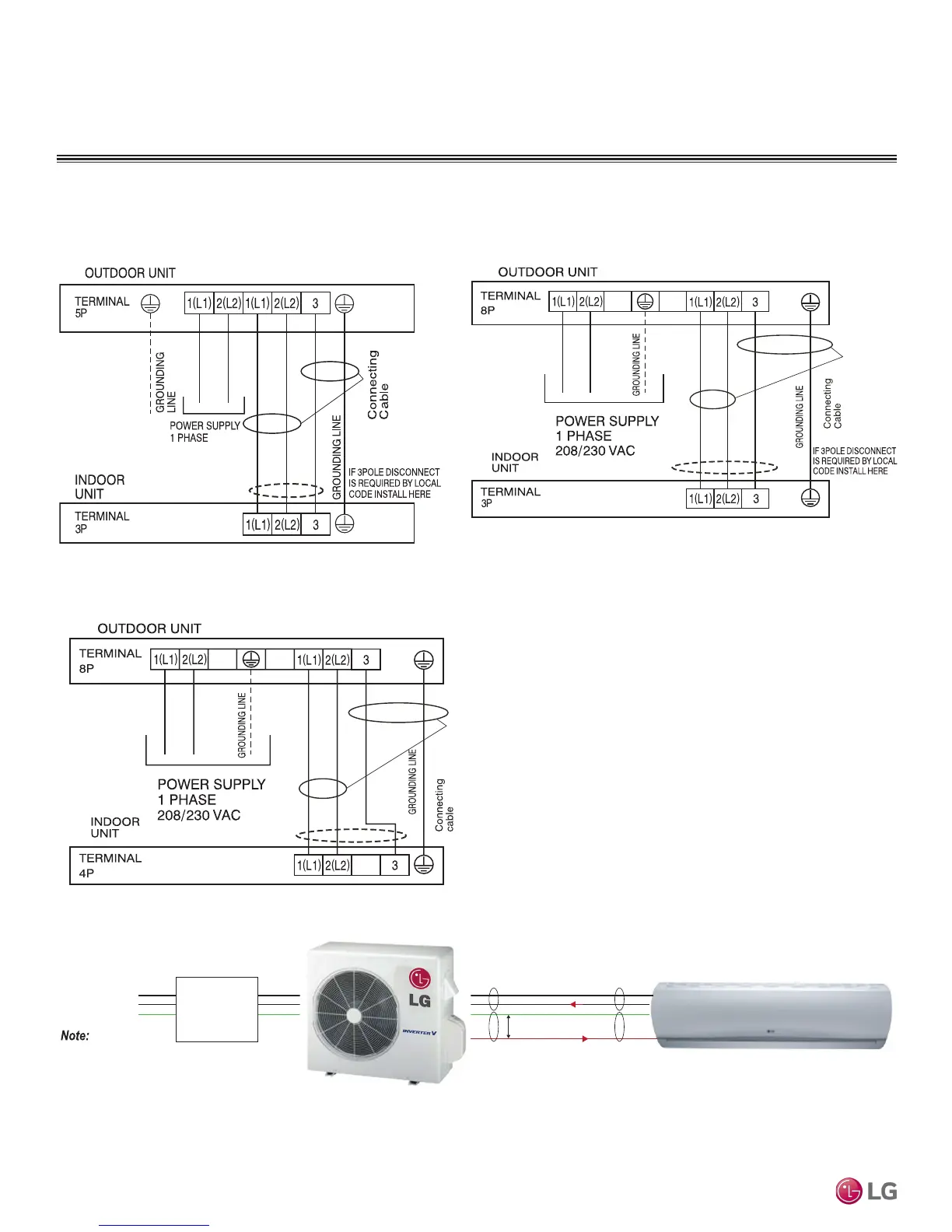

Power / Communication System Diagrams For Wiring Lengths GREATER THAN 130 Feet
Figure 81: Typical LA090-120HSV5 Power / Communication System
Diagram For Wiring Lengths GREATER THAN 130 Feet.
Figure 82: Typical LA180HSV5 Power / Communication System Diagram
For Wiring Lengths GREATER THAN 130 Feet.
Figure 83: Typical LA240HSV3 Power / Communication System
Diagram For Wiring Lengths GREATER THAN 130 Feet.
Figure 84: Schematic of a Single Zone System When the Wiring is GREATER THAN 130 Feet.
Connections and Specications
208/230 VAC
Power
Supply
1(L1) (Power, L)
2(L2) (Neutral, N)
G (Ground)
Power Flow: L → N
Diagram is an example of communication and power
cables when the wiring is GREATER THAN 130 feet.
Terminals may be labeled differently depending on the model.
Outdoor and Indoor Unit appearances may vary depending on the model.
Communication Flow: Comm → N
3 (Communications)
GREATER THAN 130 feet: Must Separate Communications Cable from the Power (1[L1]), Neutral
(2[L2]), and Ground (G) Cable at Least Two (2) Inches
At Least Two (2) Inches
