LG ARUB80LT2 - HR Unit PCB

52 Outdoor Unit

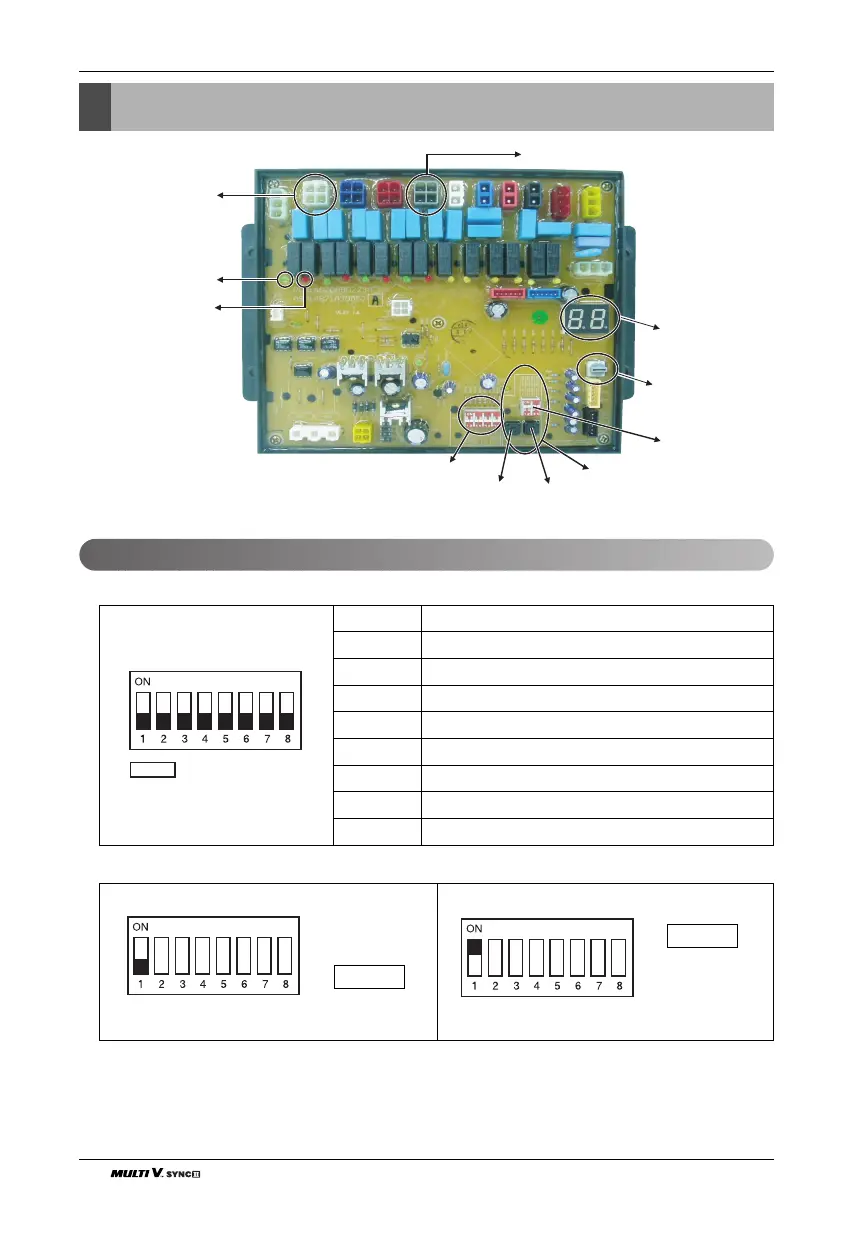

HR Unit PCB
HR Unit PCB
Switch for setup of HR Unit
1. Main function of SW02M
ON S/W Selection
No.1 Method for addressing valves of an HR unit (Auto/Manual)
No.2 Model of HR unit
No.3 Model of HR unit
No.4 Valve group setting
No.5 Valve group setting
No.6 Valve group setting
No.7 Use only in factory production (preset to “OFF”)
No.8 Use only in factory production (preset to “OFF”)
SW02M
1) Selection of the method for addressing valves of an HR unit (Auto/Manual)
Auto
Manual
SW02M
(Dip switch for setup of
the function of HR unit)
SW03M SW04M
SW01M/SW03M/SW04M
(Switch for manual valve
addressing)
SW01M
SW05M
(Switch for
addressing
HR unit)
7-SEG
#1 valve housing
#1 cooling valve LED(green)
#1 heating valve LED(red)
#4 valve housing
Switch No.1 OnSwitch No.1 Off
