LG ARUN040lSS0 - Page 118

Multi V S Outdoor Unit
3. Installation Space
6
Installation of Outdoor Units

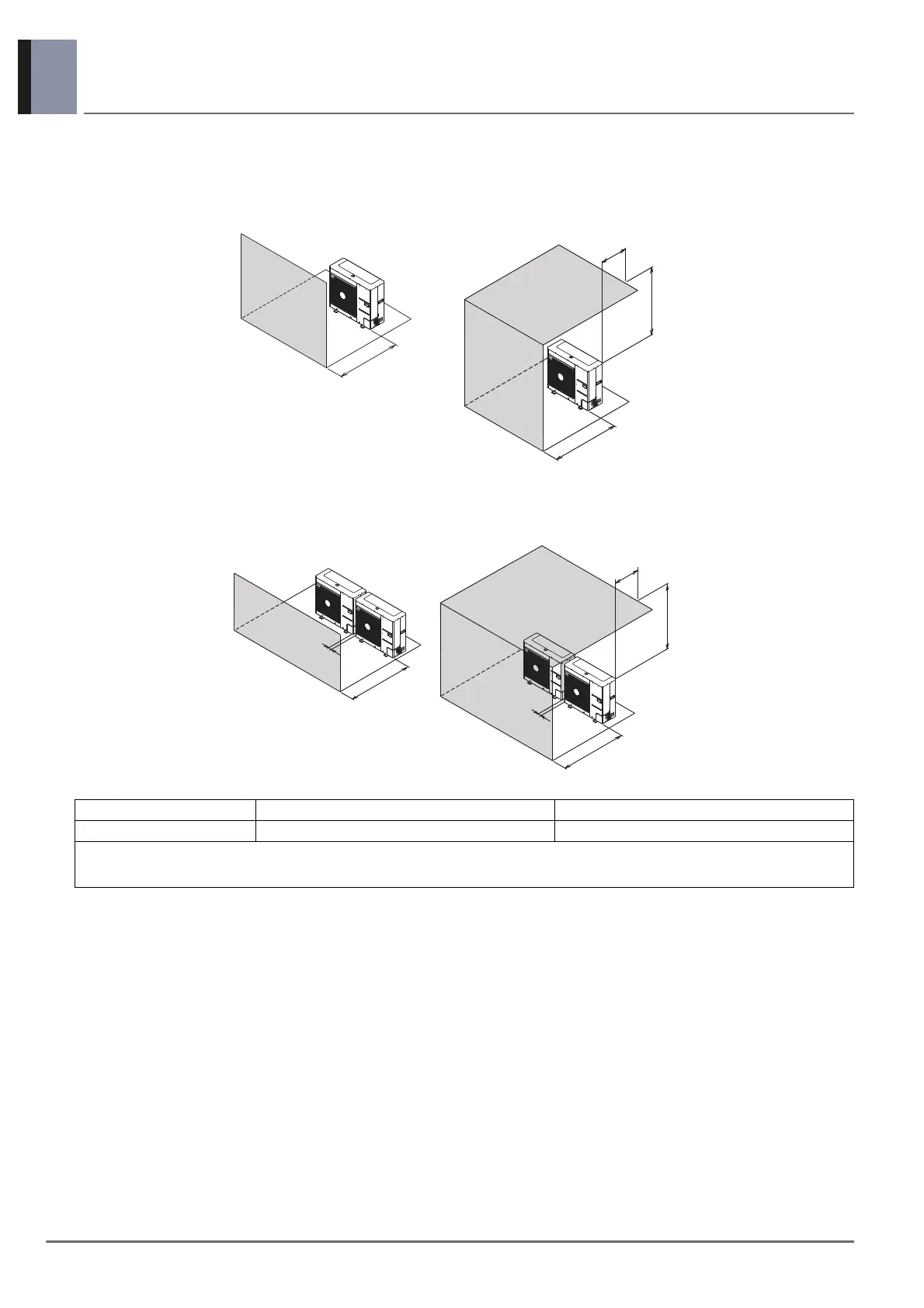

■ In case of obstacles on the discharge side
1. Stand alone installation
2. Collective installation
Chassis code U4 / U3 Chassis U7 Chassis
a 500 or more 700 or more
Note
• Depending on the sales region or product type, external appearance and applicability of each “Chassis” might be varied.
a
≤ 500
a
1,000 or
more
≤ 500
500
500 or
less
[Unit:mm]
100 or
more
1,000 or
more
100 or
more
1,000 or
more
1,000 or
more
≤ 500
500
500 or
less
[Unit:mm]
