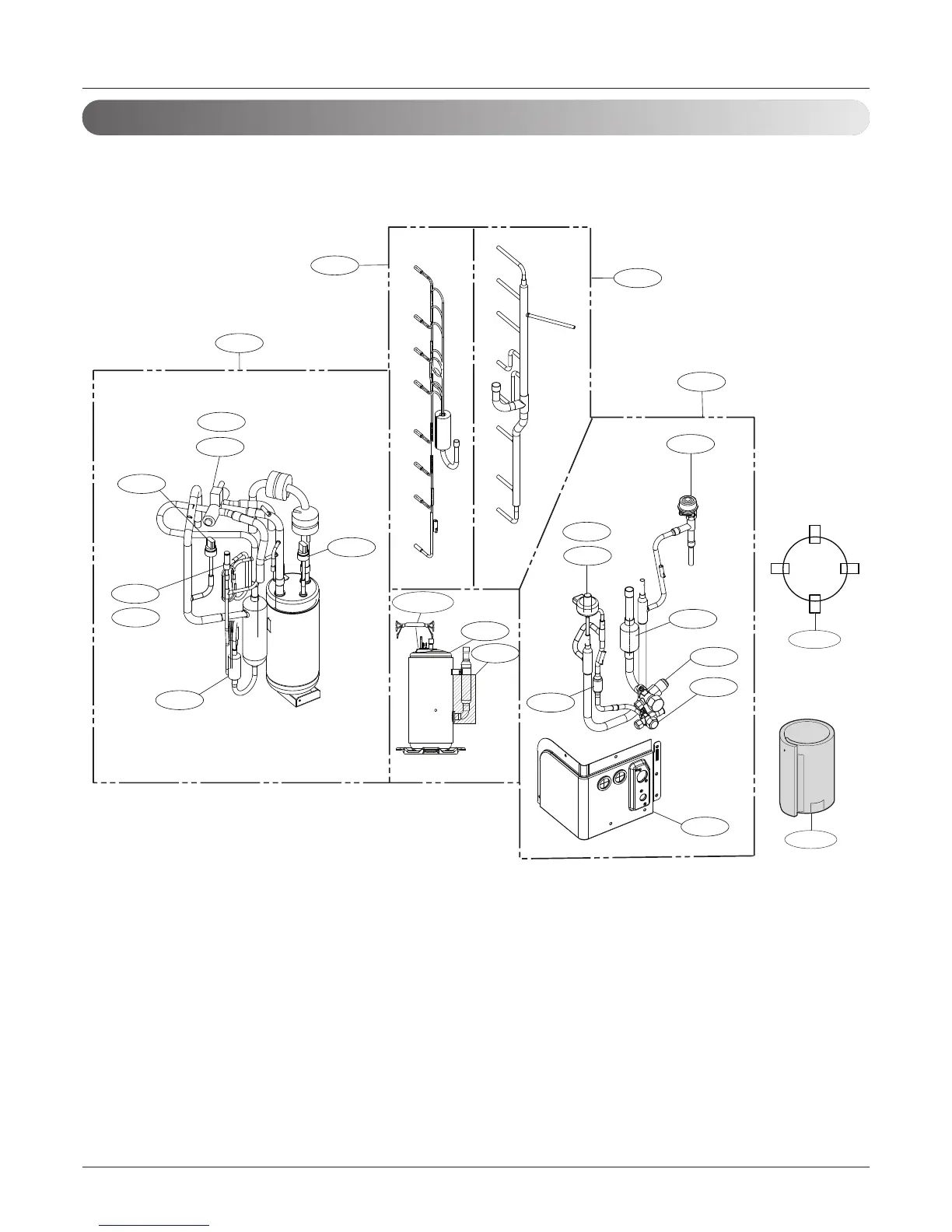

Exploded View
Cycle Parts
n U4 chassis, ARUN040GSS0
W4986B
165000A
561410A
552202
552116
552113
552115
55211G
552209
661400
552200
W52240B
552203B
552203A
135500
554160
W54102
W52240A
561410B
552204
165000B
W4986A
W52240C
W6631
h When you order compressor
(554160)SVC part, Butyl(W54102) has
to be ordered together. And attach butyl
to compressor like the picture.
