LG AS-H0966KA2 - Dimensional Drawings

2005 Product Data 39

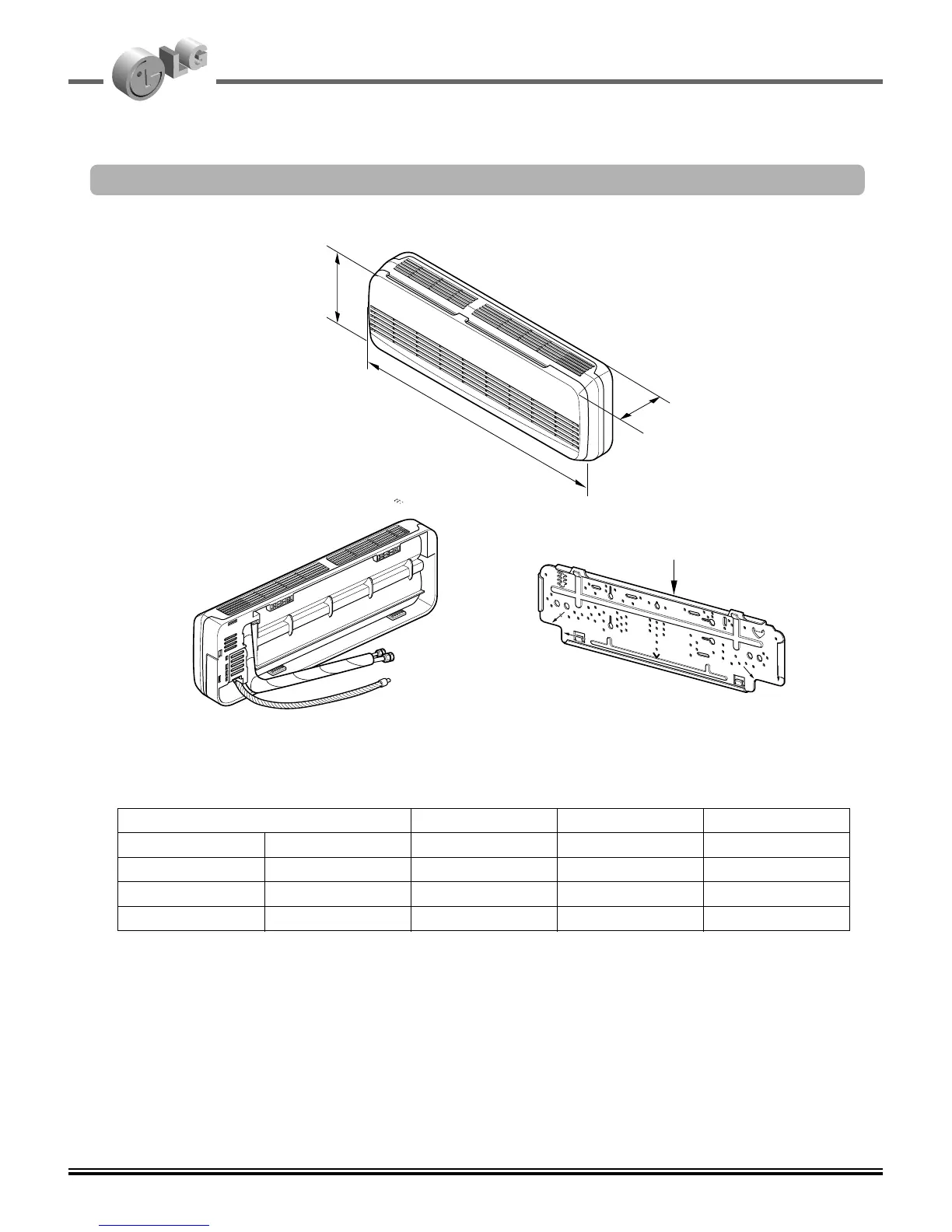

5. Dimensional Drawings Indoor Units
1. Indoor Unit
Installation plate
D
H
W
Capacity(Btu.)
SW
SQ
SR
ST
5k
7k/9k
9k/12k
18k/24k
726
824
900
1090
260
260
285
314
150
155
156
172
WHD
(Unit : mm)
General Wall Mounted (5~24k Btu.), SW, SQ, SR, ST
