3. Battery Charging Block
1. It can be used to charge Lithium Ion and/or Nickel Metal Hydride batteries.
Charger initialization, trickle charging, and Li-Ion charging control are implemented in
hardware.
2. Charging Process
-Check charger is inserted or not
-If AD6537B detects that Charger is inserted, the CC-CV charging starts.
-Exception : When battery voltage is lower than 3.2V, the precharge
(low current charge mode)starts firstly.-And the battery voltage reach to 3.2V the CC-CV
charging starts.

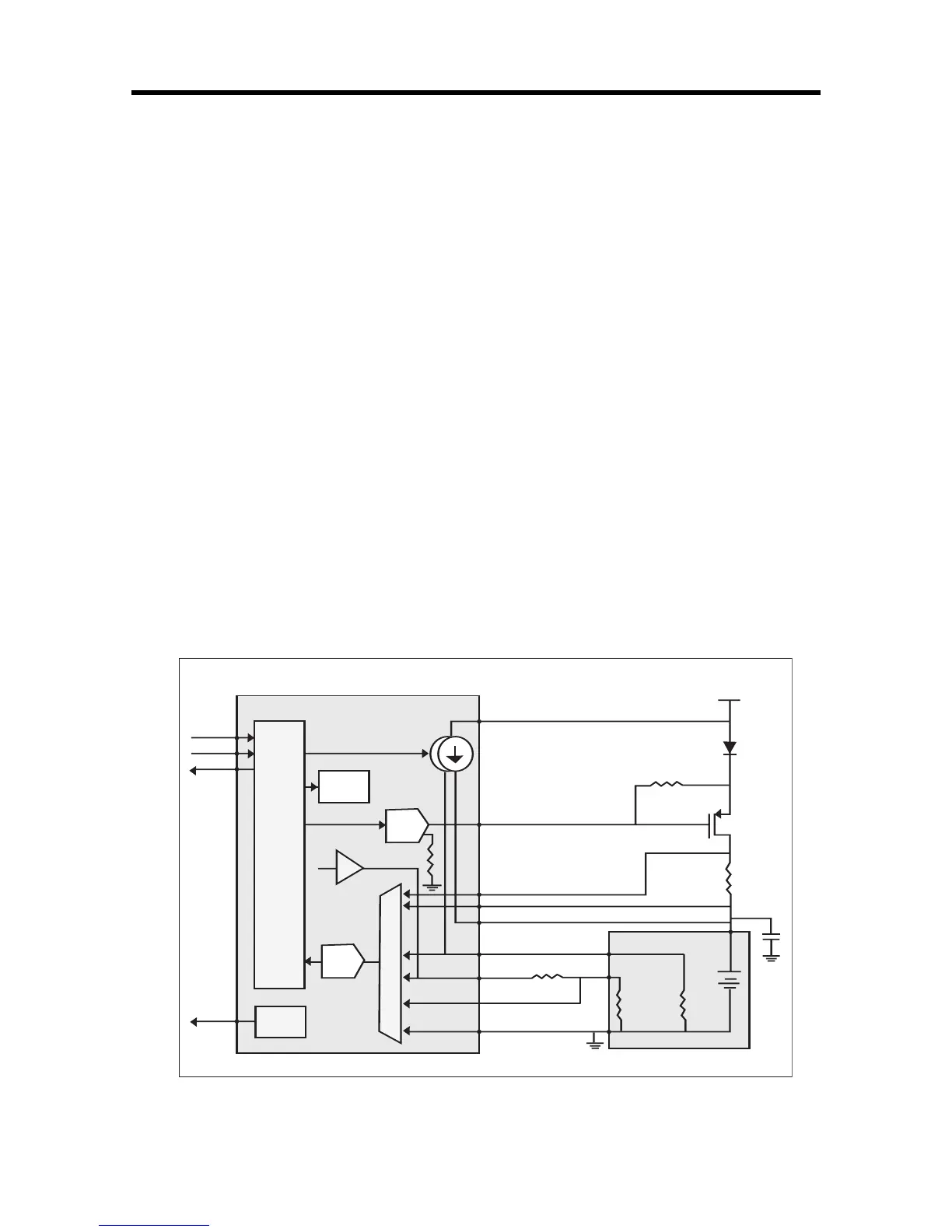

3. Pins used for charging
-VCHG : charger supply.
-GATEDRIVE : charge DAC output
-ISENSE : charge current sense input
-VBATSENSE : battery voltage sense input.
-BATTYPE : battery type identification input
-REFCHG : voltage reference output
4. TA (Travel Adaptor)
-Input voltage: AC 85V ~ 260V, 50~60Hz
-Output voltage: DC 5.2V ( 0.2 V )
-Output current: Max 800mA ( 50mA )
5. Battery
-Li-ion battery (Max 4.2V, Nom 3.7V)
-Standard battery: Capacity -830mAh
