Connecting to an
Amplifier
Make one of the following connections, depending
on the capabilities of your existing equipment.
y
HDMI Audio connection (page 18)
y
Digital Audio connection (page 18)
y
2CH Analog Audio connection (page 19)
Since many factors aect the type of audio output,
see “Audio Output Specications” for details (page
52).
Connecting to an Amplifier via
HDMI Output

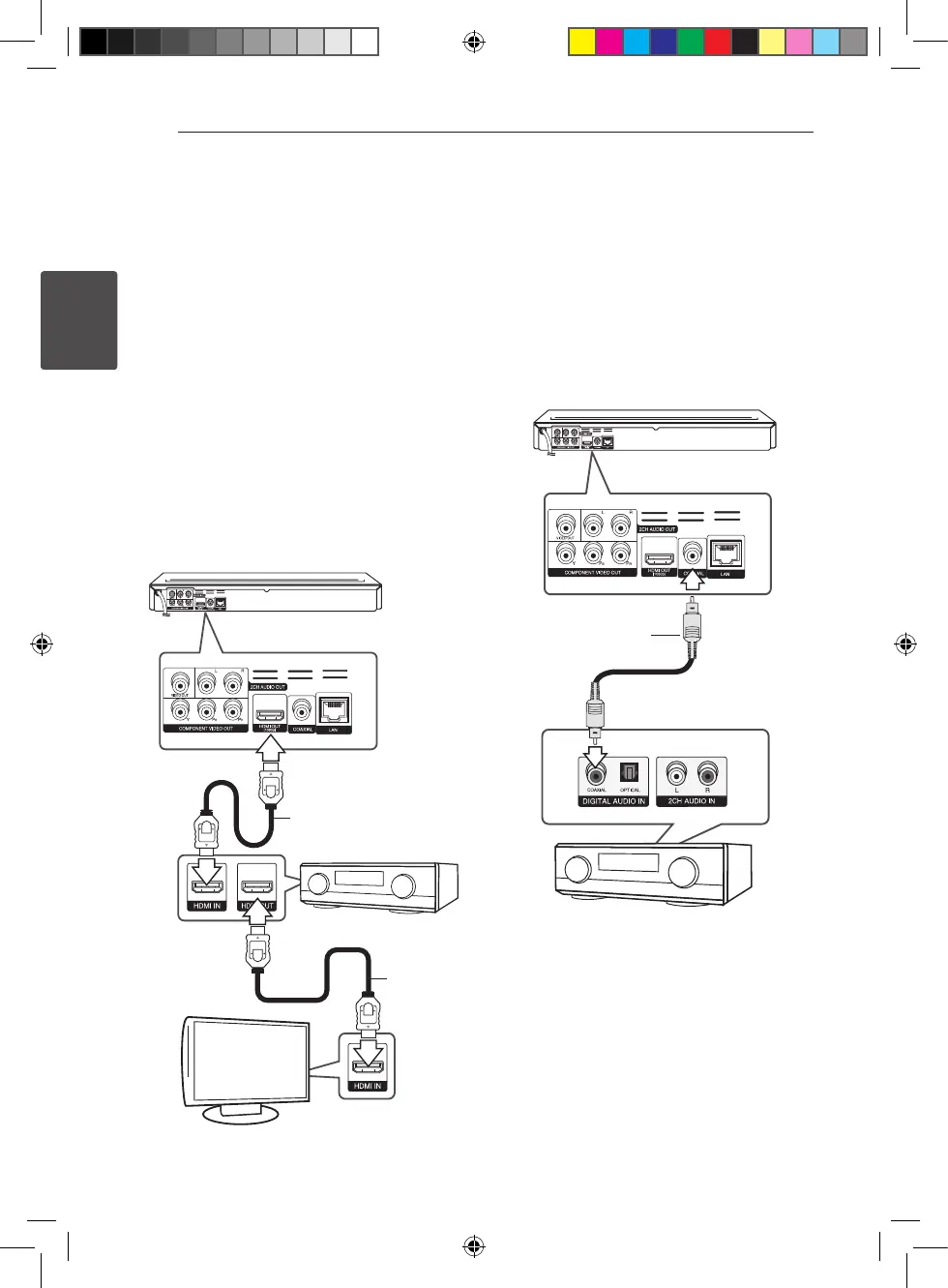

Connect the player’s HDMI OUT jack to the
corresponding in jack on your amplier using a
HDMI cable.
HDMI cable
HDMI
cable
TV
Receiver/Amplier
Rear of the unit
Connect the amplier’s HDMI output jack to HDMI
input jack on your TV using a HDMI cable if your
amplier has HDMI output jack.
You will need to activate the player’s digital output.
(See “[AUDIO] Menu” on page 27.)
Connecting to an Amplifier via
Digital Audio Output
Connect the player’s DIGITAL AUDIO OUT jack
to the corresponding in jack (COAXIAL) on your
amplier using an optional digital audio cable.
Coaxial
cable
Receiver/Amplier
Rear of the unit
You will need to activate the player’s digital output.
(See “[AUDIO] Menu” on pages 27.)
