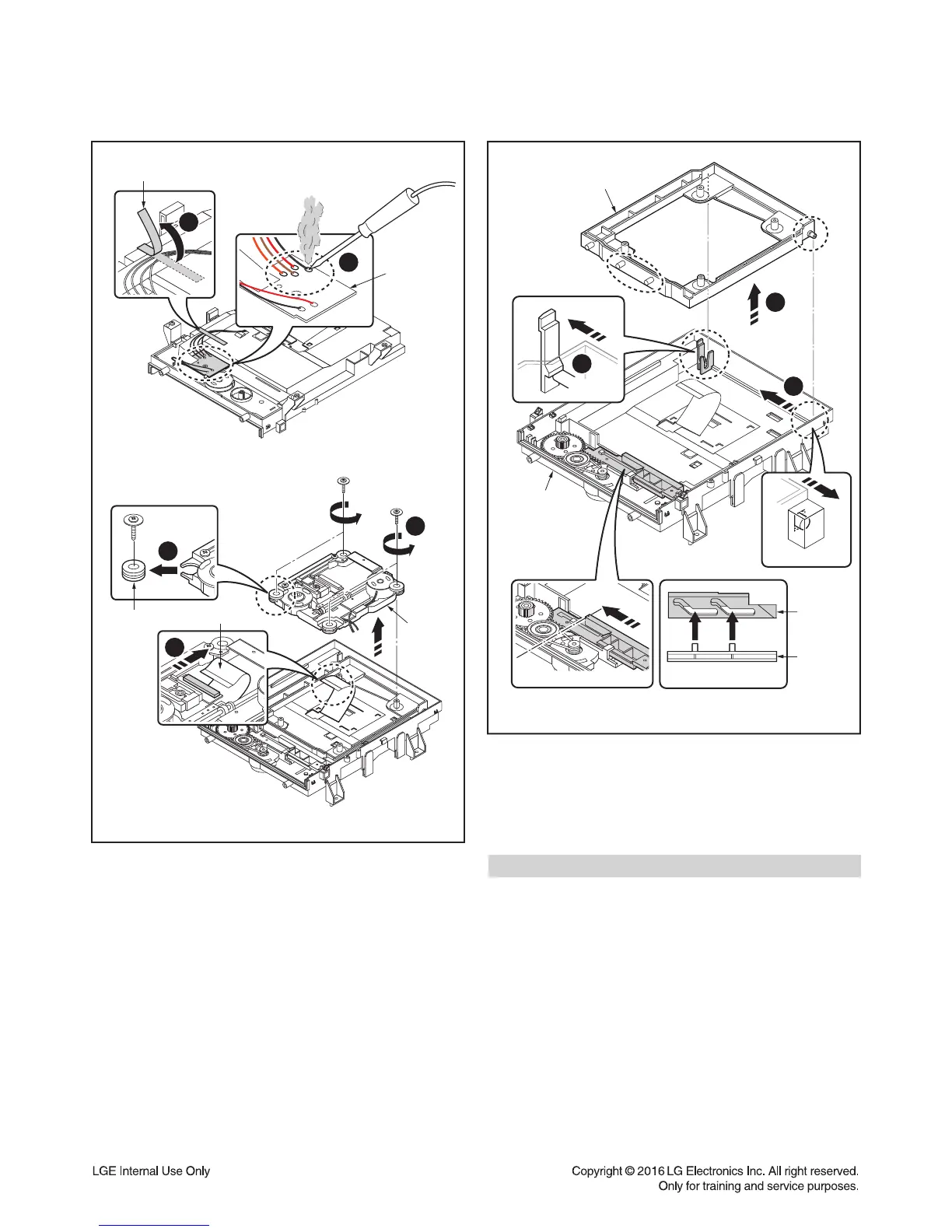

DECK MECHANISM DISASSEMBLY
5. Base Up/Down
Unlock the Locking Tab (L2) in direction of arrow
and then lift up the Base Up/Down to separate it
from the Base Main.
Note
• When reassembling move the Guide in direction
of arrow (A) until it is positioned as Figure G-1.
• When reassembling insert the (B) portion of the
Base Up/Down in the (C) portion of the Guide as
Figure G-2.
• When reassembling insert the (D) portion of the
Base Up/Down in the Hole (H2) of the Base Main
as Figure G-3.
3
2
1
(L2)
Base Up/Down
Figure G-2Figure G-1
(C)
(B)
Guide
Base
Up/Down
Base Main
< Figure G >
(B)
(H2)
(A)
Figure G-3
(D)
4. Pick Up Assembly
1) Detach the Gasket Tape.
2) Disconnect the wires (BLK, RED, BRN, ORN)
from the Deck PCB Assembly by desoldering.
3) Remove the 4 screws (S2).
4) Disconnect the FFC Cable from the Pick Up
Assembly.
5) Remove the 4 Rubber Dampers.
3
4
(S2)
FFC Cable
Rubber
Damper
Pick Up
Assembly
< Bottom side view >
< Figure F >
5
B
L
K
RED
B
RN
ORN
R
ED
B
K
1
Gasket Tape
Deck PCB
Assembly
2
