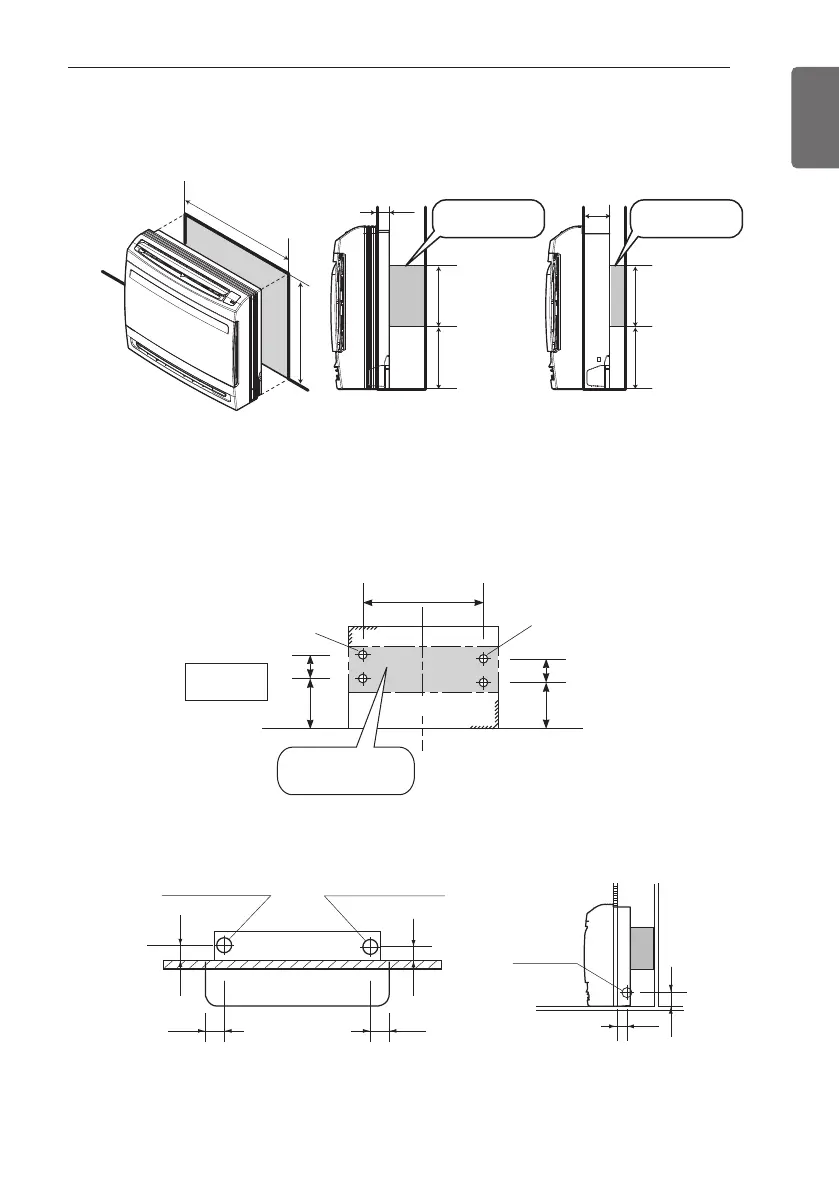

THE INDOOR UNIT INSTALLATION
35
ENGLISH
Half concealed installation.
1 Make a wall hole of the size shown Fig-1.
2
Installation of supplemental plate for attaching main unit.
• The rear of the unit can be fixed with screws at the points shown in the Fig-2. Be sure to install
the supplemental plate in accordance with the depth of the inner wall.
3
Piping Hole
670
45
585
200
150
Wall
Hole
Supplemental plate
(Field supply)
200
150
95
Supplemental plate
(Field supply)
647
170
140
170
140
Screw hole
Screw hole
Fixing point
on the back
Supplemental plate
(Field supply)
Opening hole
1) Normal concealed 2) Deep concealed
(Unit: mm)
(Unit: mm)
<Fig - 1>
Wall
Wall
75
50
35
75
Left bottom piping
Left piping
45
50
Right bottom piping
(Unit: mm)
