46

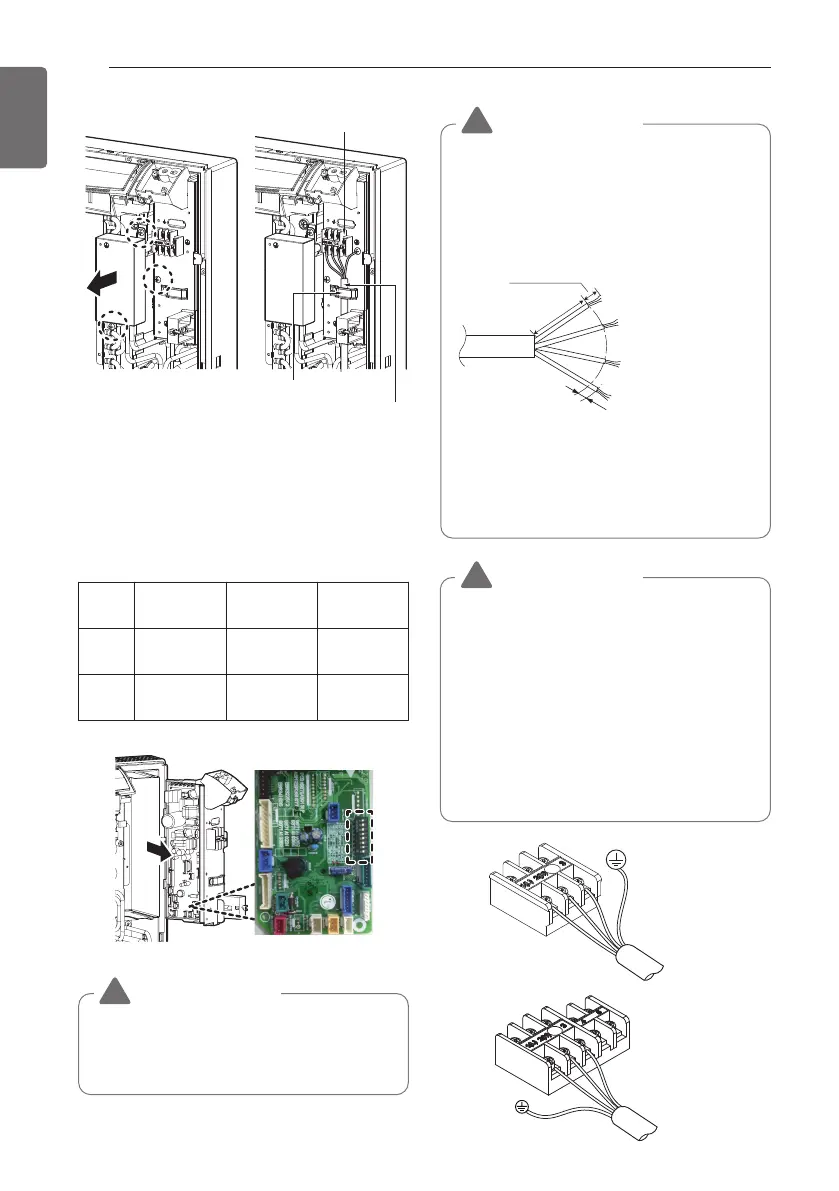

THE INDOOR UNIT INSTALLATION
ENGLISH
CAUTION
!
The Power cord connected to the unit
should be selected according to the
following specifications.
CAUTION
!
The connecting cable connected to the
indoor and outdoor unit should be
complied with the following specifications
(This equipment shall be provided with a
cord set complying with the national
regulation).
NORMAL
CROSS-SECTIONAL
AREA 0.75 mm
2
20 mm
35±5 mm
GN/YL
10±3 mm
If the supply cord is damaged, it must be
replaced by a special cord or assembly
available from the manufacturer of its
service agent.
1
3
2
Connecting Cable
Clamp Cord
Terminal Block
3
Secure the cable onto the Control panel
with the Clamp cord.
4
If indoor unit's setting is needed, loosen
No.3 screw and lift up the PCB. (option:
usage of bottom vanes, limit angle of top
vane)
DIP
S/W
Description
S/W OFF S/W ON
S/W 5
Install
scene
Exposed
Half
Concealed
S/W 7 Vane
Top+Bottom
vane
Top vane
only
CAUTION
!
- The circuit diagram is a subject to
change without notice.
- The earth wire should be longer than the
common wires.
- When installing, refer to the circuit
diagram on the chassis cover.
- Connect the wires firmly so that they
may not be pulled out easily.
- Connect the wires according to color
codes, referring to the wiring diagram.
To Next Page
