58

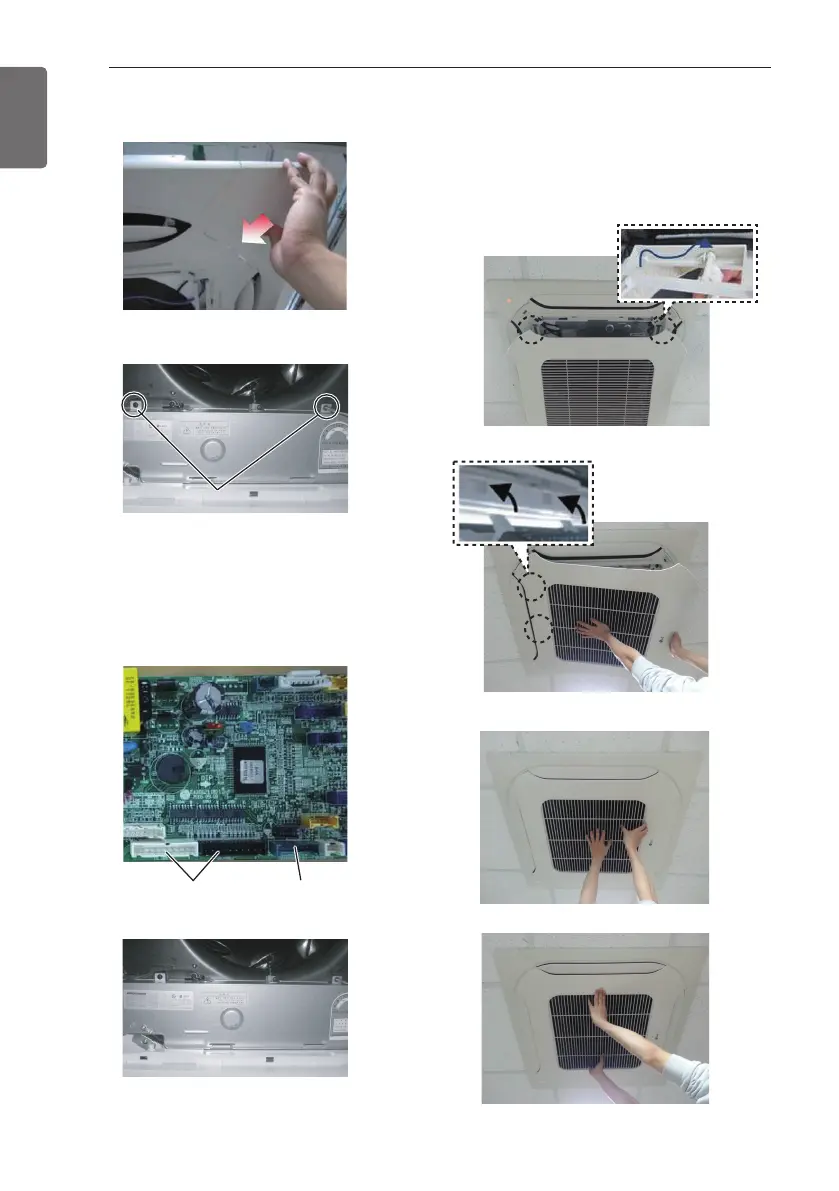

INSTALLATION OF DECORATIVE PANEL(ACCESSORY)
ENGLISH
5 Fit the corner covers.
Installing the grill link on the panel body
Inserting the edge into the panel body
Closing the door lock
Check the left, right and central sections
6 Open two screws of control panel cover.
7 Connect one display connector and two
vane control connectors of front panel to
indoor unit PCB.
The position marking on PCB is as:
Display connector : CN_DISPLAY
Vane control connector: CN_VANE 1,2
8 Close the cover for control box.
9 Install the air inlet grille and Filter on the
panel.
- After inserting the edge of the grill into
the panel body, close the door lock and
press on the left, right, and center
sections.
To Next Page
