a
Power cord
b
Speaker connectors
Connects the speaker cables.
c
Cooling Fan
d
Antenna Connector
FM- Connects the FM wired antenna
e
VIDEO OUT
Connects to a TV with video inputs.
f
COMPONENT VIDEO (Y P
B
P
R
)OUTPUT
Connects to a TV with Y P
B
P
R
inputs.
g
HDMI OUT
Connects to TV with HDMI inputs.
(Interface for digital audio and video)
h
OPTICAL IN
Connects to optical audio equipment.
i
AUX (L/R) INPUT
Connects to an external source with 2 channel
audio outputs.

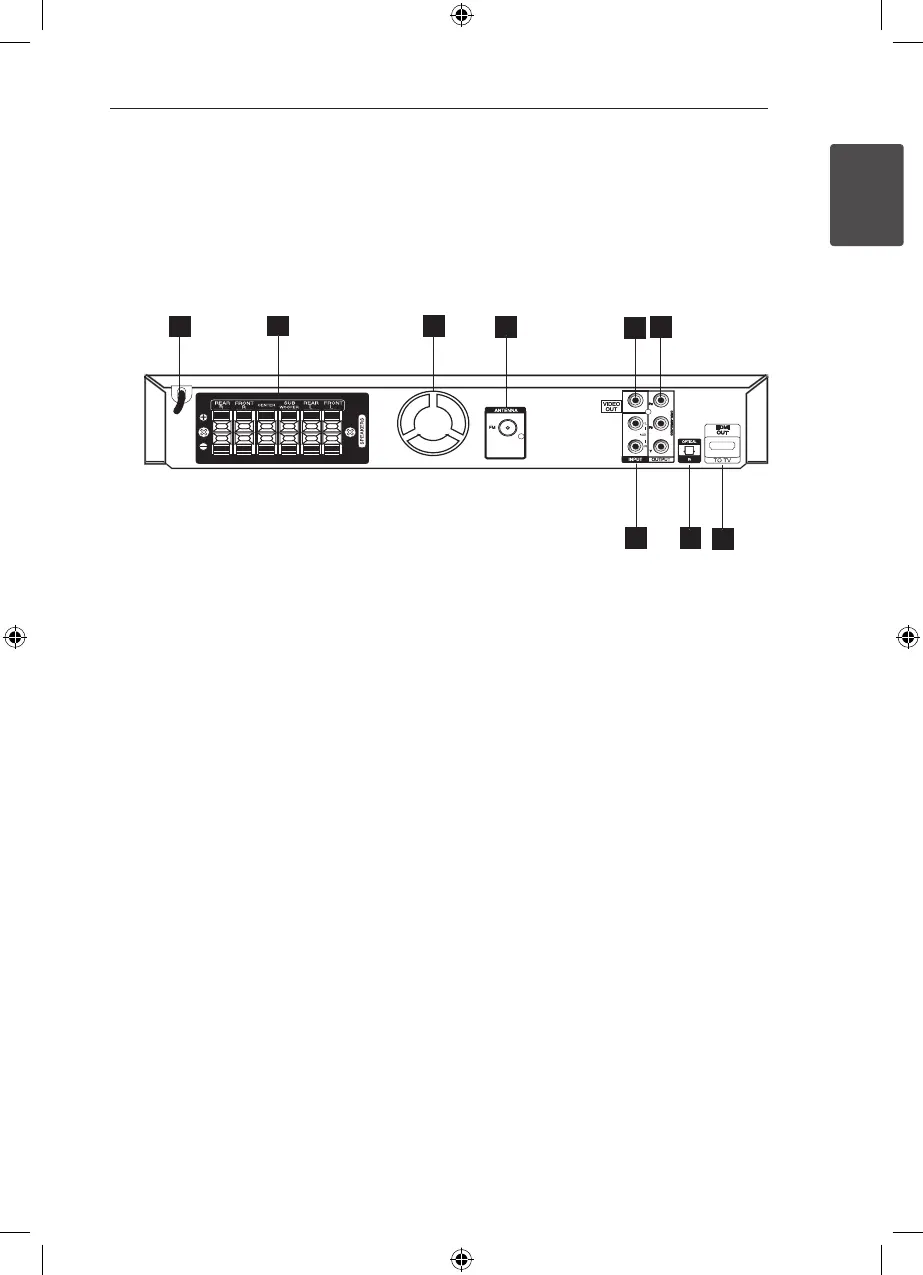

Rear panel
1
2
3
4
5
6
7
89
