6

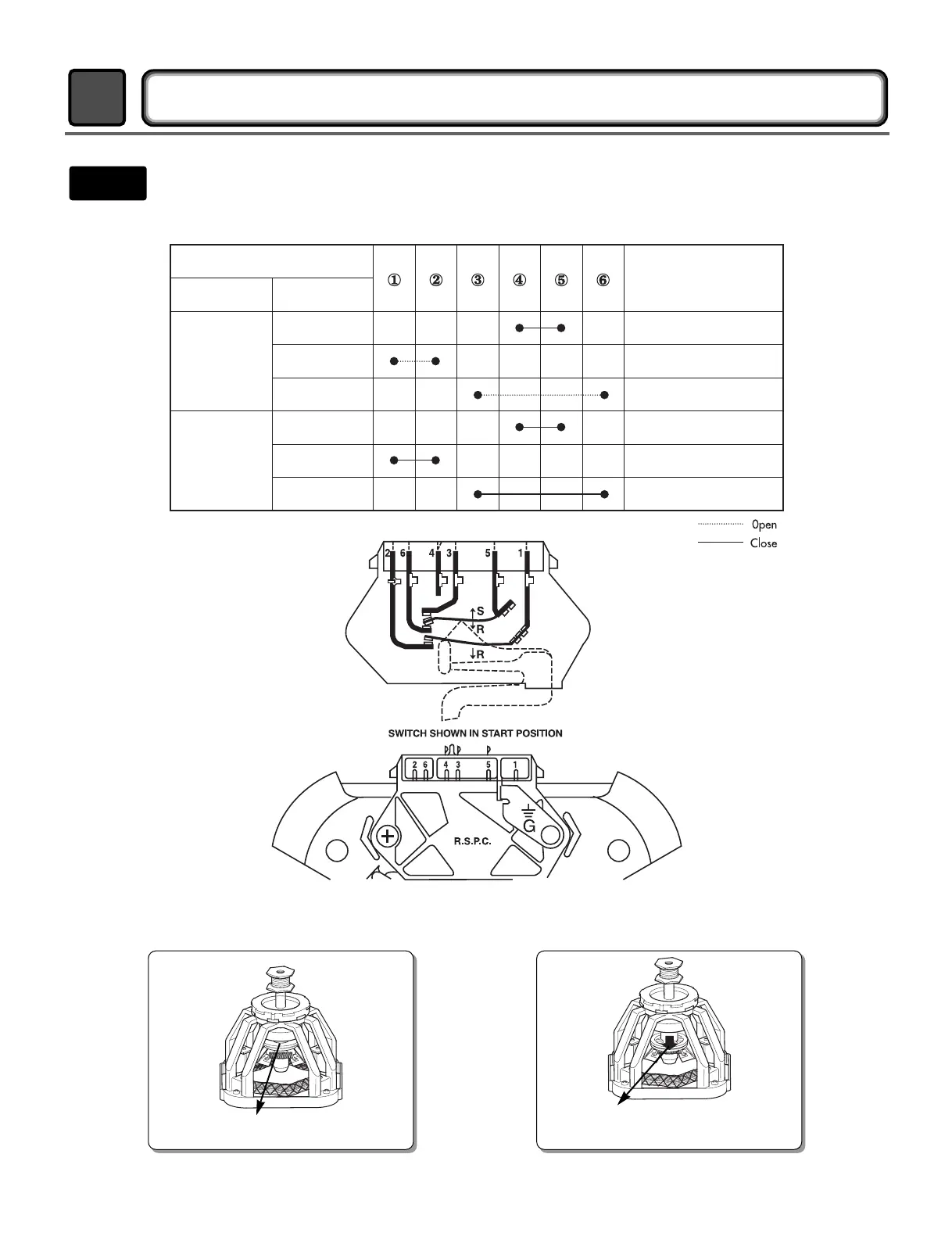

MOTOR DIAGRAM AND SCHEMATIC
NOTE
When checking Component, be sure to turn Power off, then do voltage discharge sufficiently.
■Contact On / Off by Centrifugal Switch
■.RUN MODE
(Motor operates)
■ STOP MODE
(When Motor does not operate)
Motor
2 ~ 3Ω
3 ~ 5
Ω
< 1 Ω
< 1 Ω
ᴾᴬ
ᴾᴬ
Terminal No
Mode
Centrifugal switch
Centrifugal switch
(Pull Drive forward)
Resistance
Remark
Motor
STOP
Motor
RUN
Motor
Heater (Electric Models)
Heater (Electric Models)
Gas Valve (Gas Models)
Gas Valve (Gas Models)
15
