7

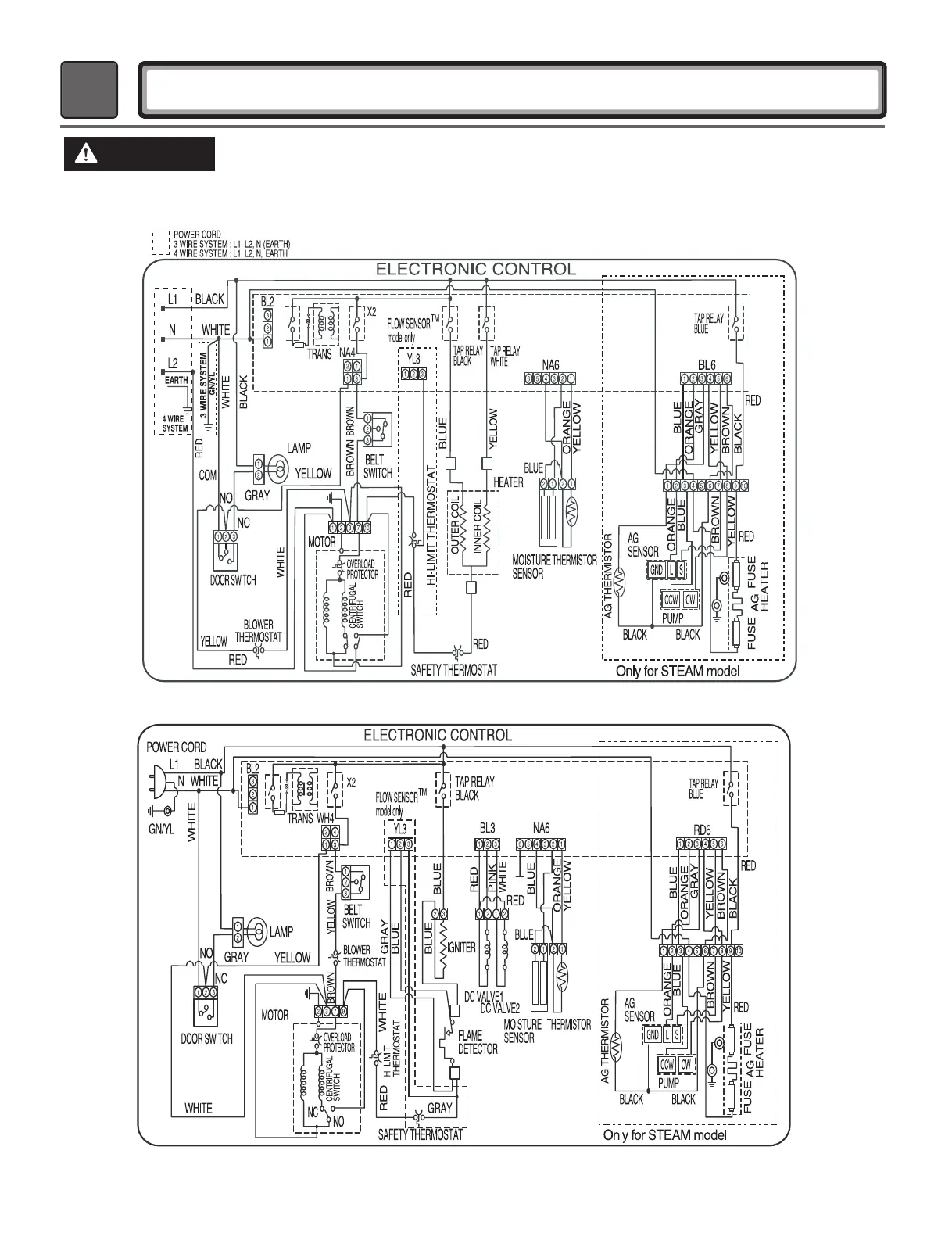

WIRING DIAGRAM
Label all wires prior to disconnection when servicing controls. Wiring
errors can cause improper and dangrous operation. Verify proper
operation after servicing.
CAUTION
ELECTRIC DRYER WIRING DIAGRAM
GAS DRYER WIRING DIAGRAM
