LG DLE5001 Series User Manual

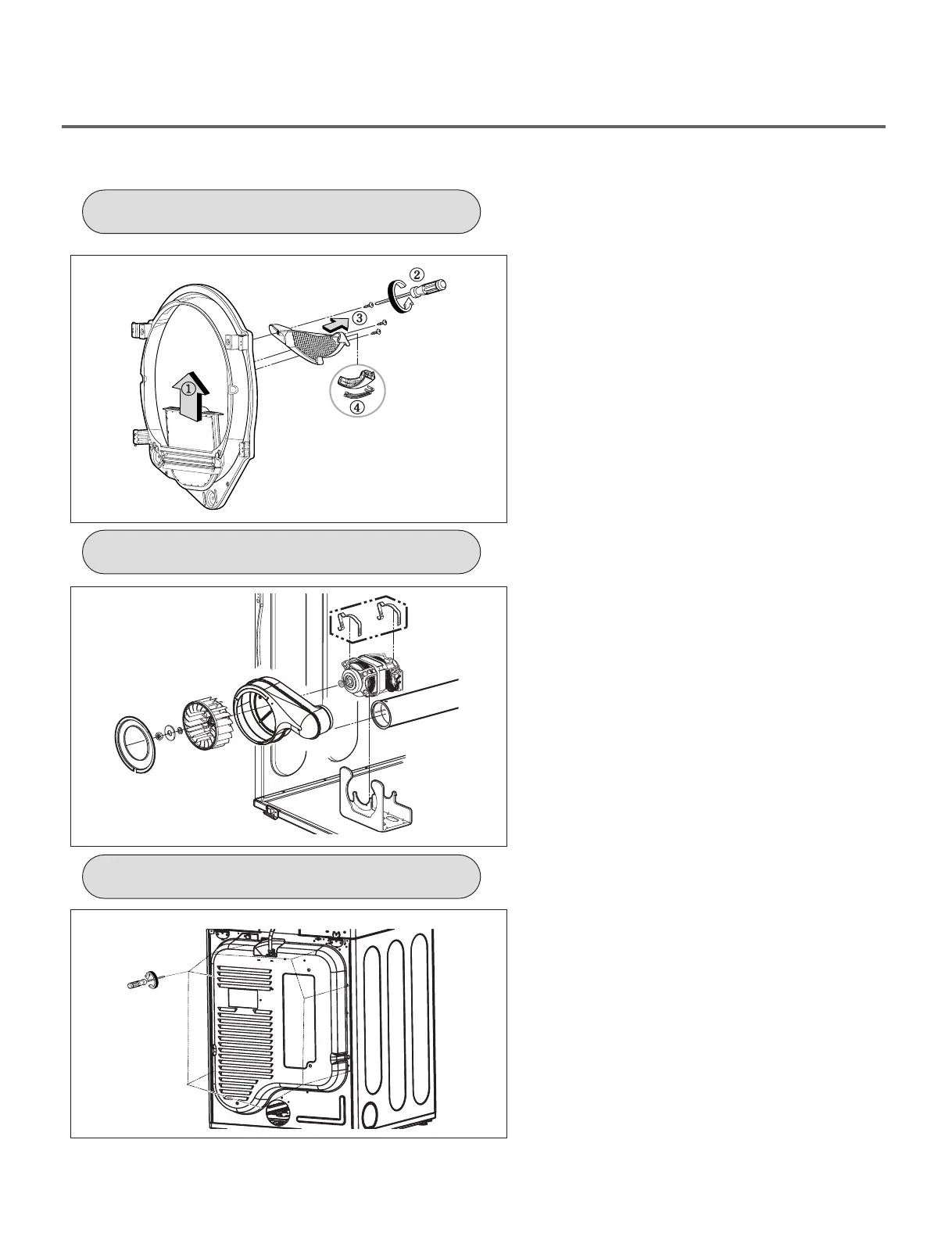

FILTER ASSEMBLY
BLOWER HOUSING
BACK COVER
1.
Remove the filter.
2.
Remove 3 screws.
3.
Remove the cover grid.
4.
Disconnect the electrode sensor.
1.
Disassemble the top plate.
2.
Remove the cabinet cover and tub drum [Front ].
3.
Remove the drum assembly.
4.
Remove 2 screws and cover (Air guide).
5.
Remove the bolt and washer.
1.
Disassemble the top plate.
2.
Remove the cabinet cover and tub drum [Front ].
3.
Remove the drum assembly.
4.
Remove 7 screws.
5.
Pull the tub drum [Rear] towards the front.
6.
Remove the fan.
7.
Disconnect the motor clamp and motor.
40
