LG DLE6977W Service Manual

33

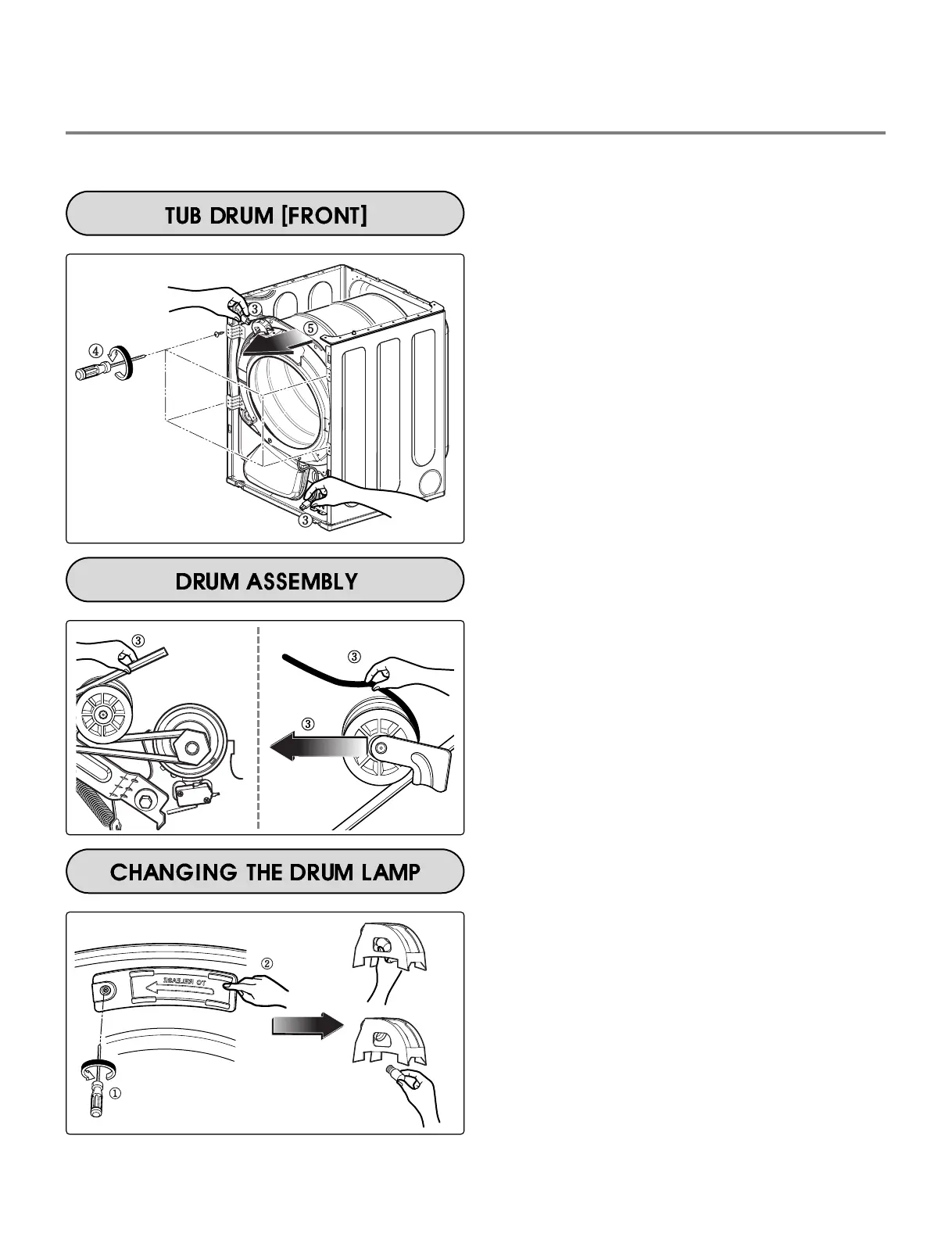

1.
Disassemble the top plate.
2.
Remove Cover Cabinet.
3.
Disconnect the door lamp and electrode
sensor connector.
4.
Remove 4 screws.
5.
Disassemble the Tub Drum [Front].
1.
Disassemble the top plate.
2.
Remove the Cabinet Cover and
Tub drum [front].
3.
Loosen belt from motor and idler pulleys.
4.
Carefully remove Drum out.
-1
-2
-1
1.
Disassemble the door.
2.
Remove a screw by holding the drum lamp shield
in place.
3.
Slide the shield up and remove.
4.
Remove the bulb and replace with a 15 watt,
120 volt candelabra-base bulb.
5.
Replace the lamp shield and screw.
