18 19

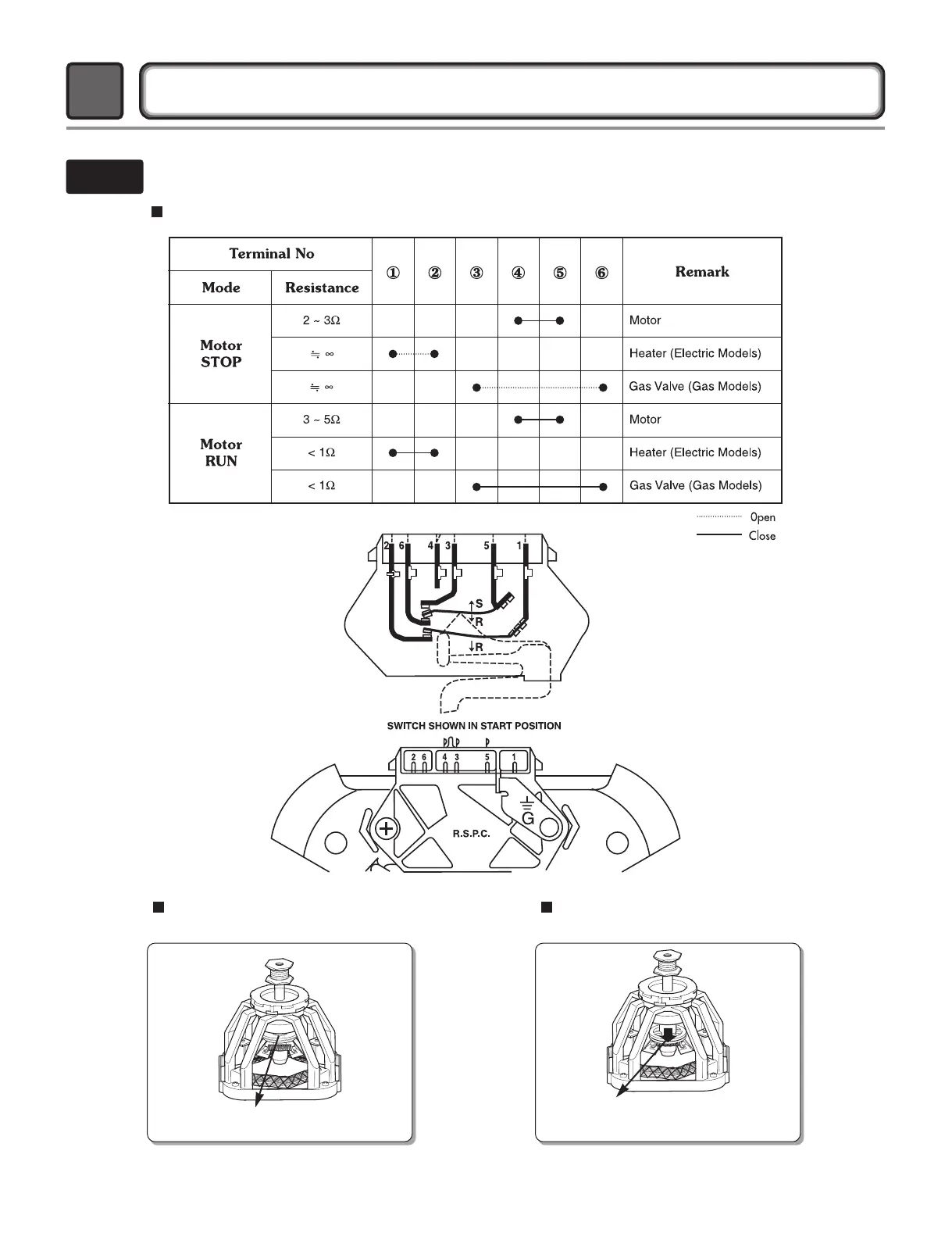

MOTOR DIAGRAM AND SCHEMATIC
6
Contact On / Off by Centrifugal Switch
STOP MODE
(When Motor does not operate)
RUN MODE
(Motor operates)
When checking component, be sure to turn power off, then do voltage discharge sufficiently.
NOTE
Centrifugal switch
Centrifugal switch
(Pull Drive forward)
