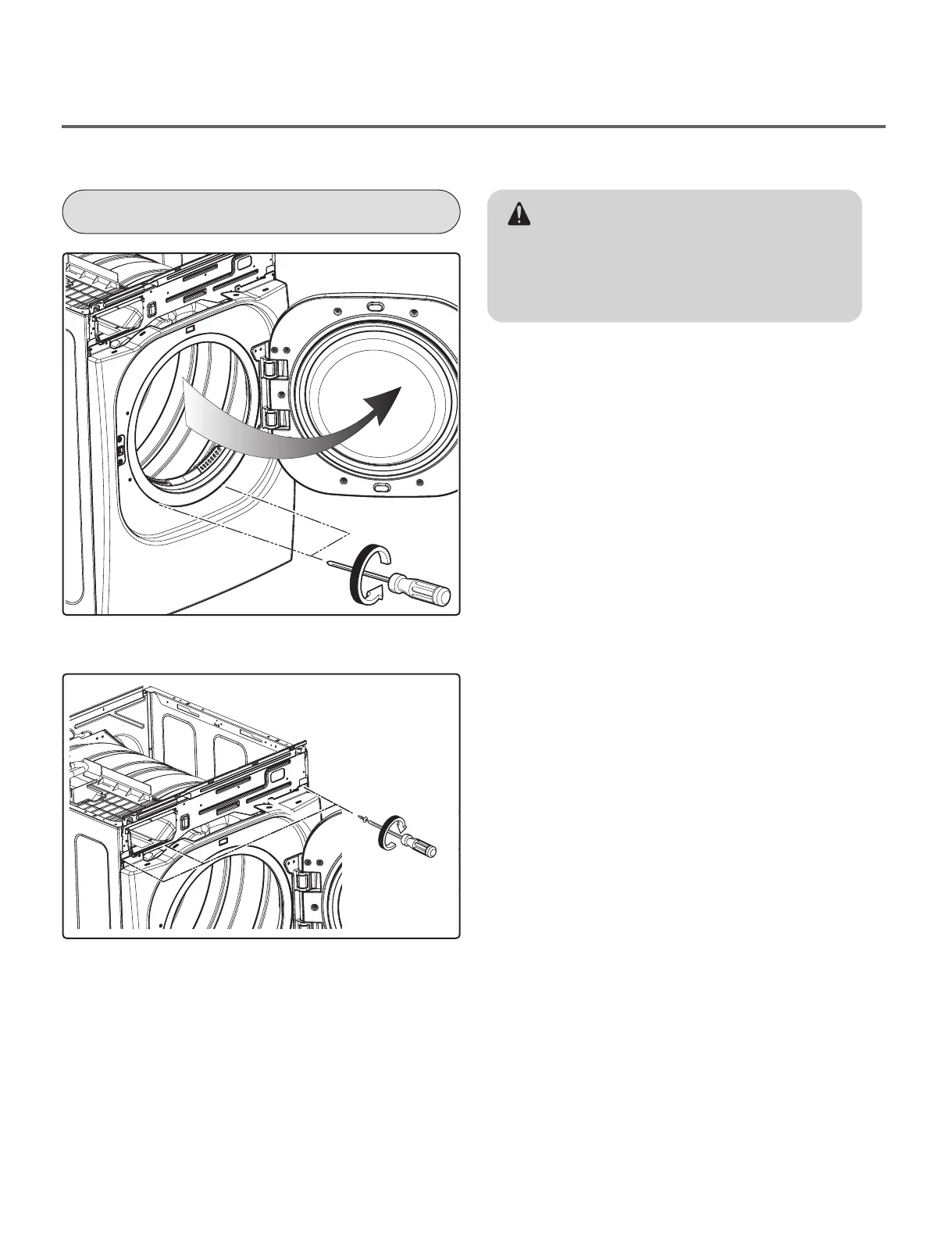

COVER CABINET
1.
Disassemble the top plate.
2.
Disassemble the control panel assembly.
3.
Disassemble the door assembly.
4.
Remove 2 screws.
5.
Remove 3 screws from the top of cabinet cover.
6.
Disconnect the harness of door switch.
WARNING !
When you disassemble the door switch
connector, be sure to take gloves and handle the
frame and other parts carefully to avoid cuts.
Failure to do this could lead to a serious injury.
CONTROL PANEL ASSEMBLY
1. Remove 2 screws on the control
panel frame.
2. Disconnect the connectors.
3. Pull the control panel assembly
upward and then forward.
4. Remove 8 screws on the PCB
PCB) assembly, display.
5. Disassemble the control panel
assembly.
WARNING !
When you disassemble the control panel,
be sure to take gloves and handle the frame
and other parts carefully to avoid cuts.
Failure to do this could lead to a serious
injury.
