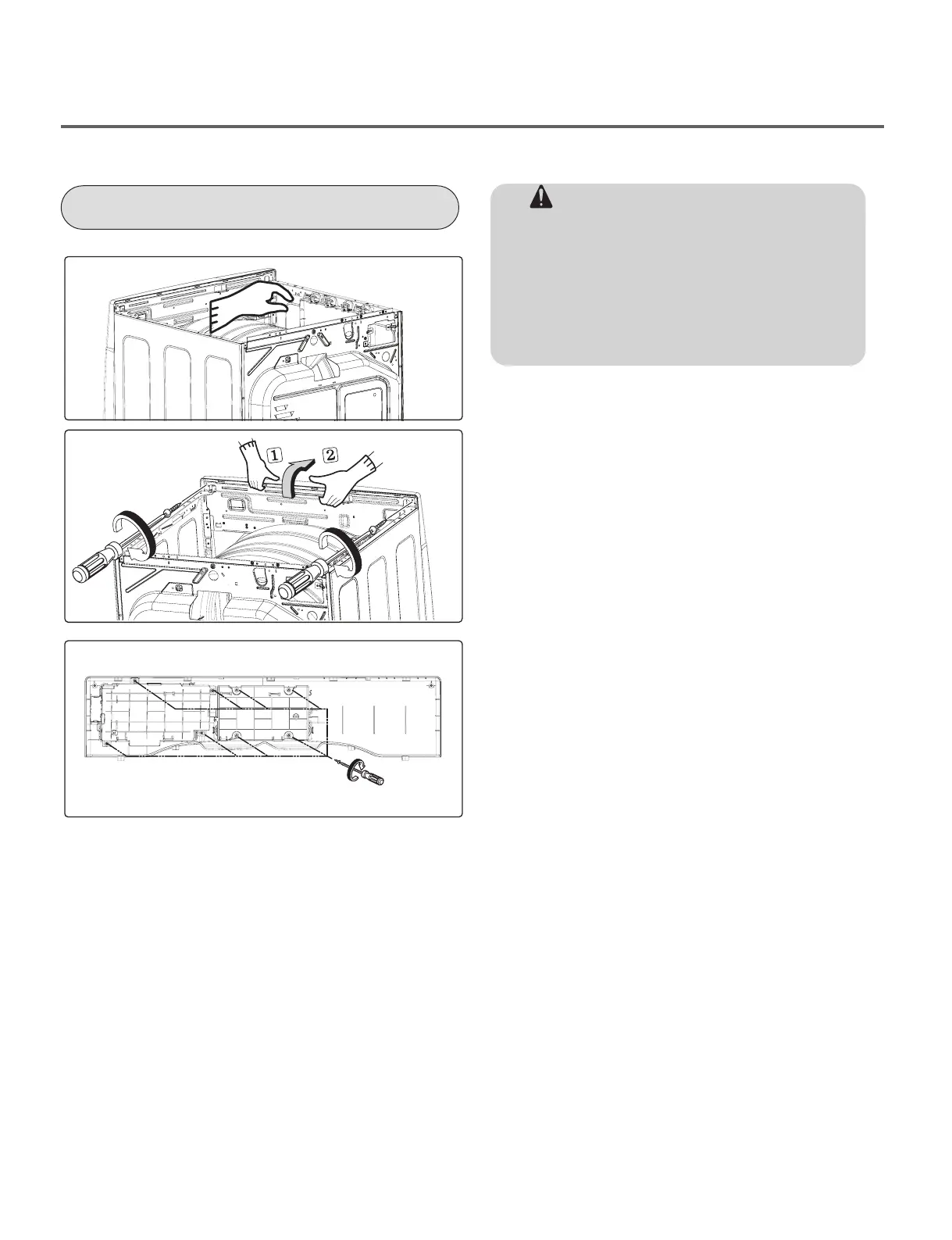

CONTROL PANEL ASSEMBLY
1. Disconnect the connectors.
2. Remove 2 screws on the control panel.
3. Pull the control panel assembly upward
and then forward.
4. Remove 8 screws on the PCB PCB)
assembly, display.
5. Disassemble the control panel assembly.
WARNING !
When you disassemble the control panel,
be sure to disconnect the dryer from its
electrical supply. Protect your hands and
arms from sharp edges when working. To
reduce the risk of Injury to persons adhere to
all industry recommended safety procedures
including the use of long sleeved gloves and
safety glasses.
To Next Page
