54 55
53
DRYER EXHAUST CHANGE
1.
Remove screw and exhaust duct.
2.
3.
4.
5.
WARNING !
Before performing this exhaust installation, be sure to
disconnect the dryer from its electrical supply. Protect your
hands and arms from sharp edges when working inside the
cabinet. To reduce the risk of Injury to persons adhere to all
industry recommended safety procedures including the useof
long sleeved gloves and safety glasses.
Note

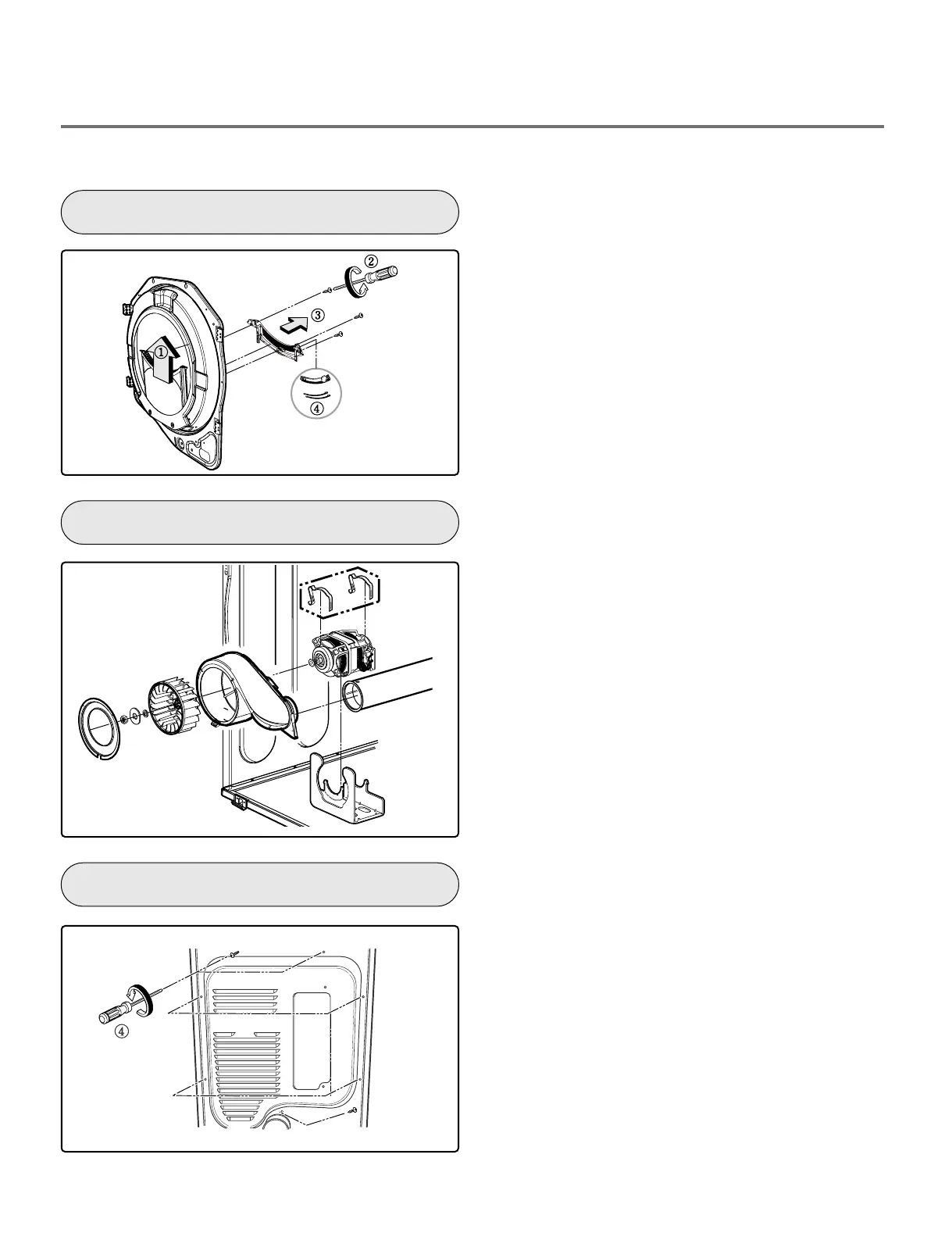

FILTER ASSEMBLY
BLOWER HOUSING
BACK COVER
1.
Remove the filter.
2.
Remove 3 screws.
3.
Remove the cover grid.
4.
Disconnect the electrode sensor.
1.
Disassemble the top plate.
2.
Remove the cabinet cover and front bulkhead.
3.
Remove the drum assembly.
4.
Remove 2 screws and cover (Air guide).
5.
Remove the bolt and washer.
1.
Open the top plate.
2.
Remove the cover cabinet and front bulkhead.
3.
Remove the drum assembly.
4.
Remove 7 screws.
5.
Pull the rear bulkhead towards the front.
6.
Remove the blower wheel. (Left-hand thread!).
7.
Disconnect the motor clamp and motor.
To Next Page
