LG DLGX4001 Series

56 57
54 55
AIR DUCT
ROLLERS

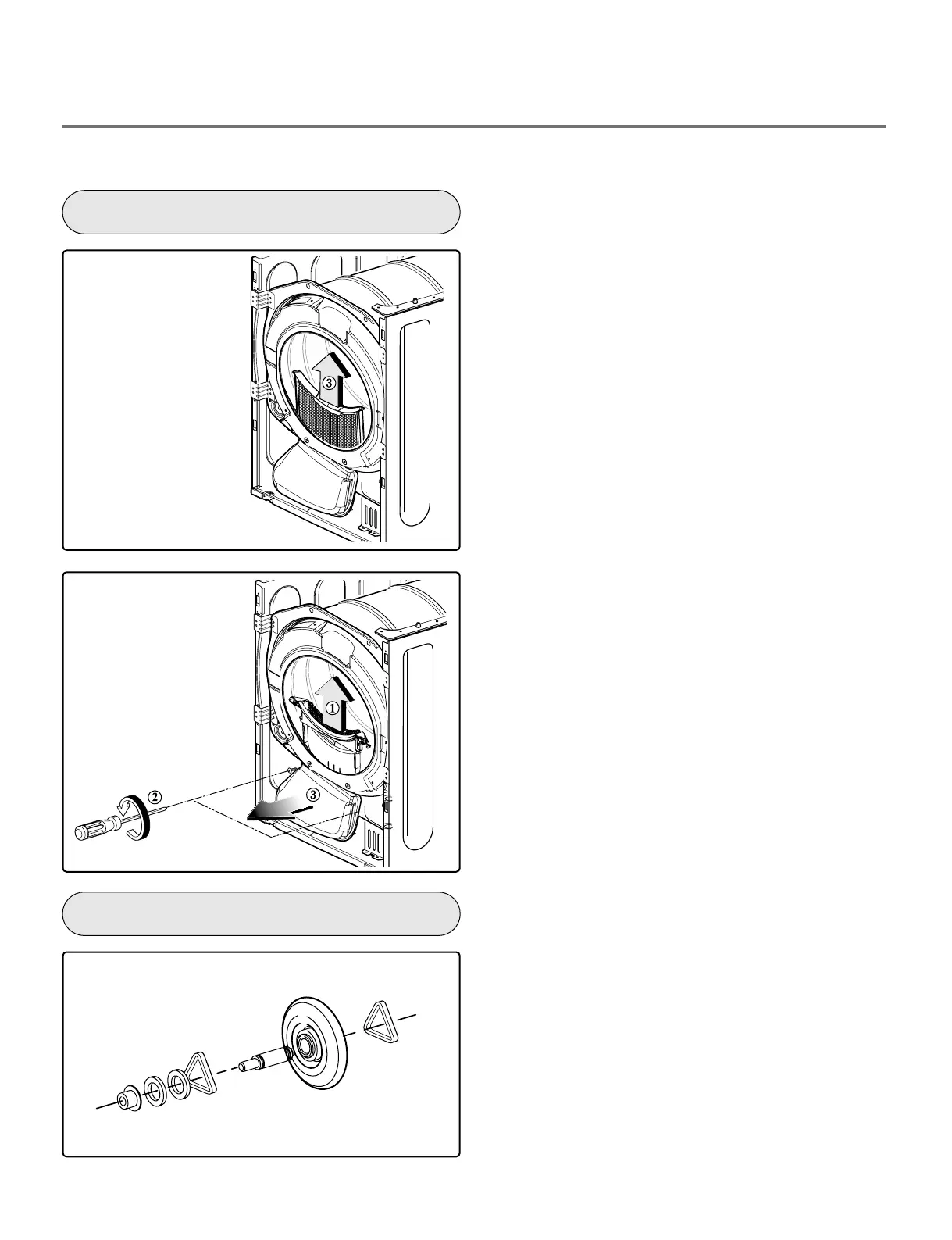

1.
Disassemble the top plate.
2.
Remove the cover cabinet.
3.
Remove the filter.
1.
Remove the cover guide.
2.
Remove 2 screws.
3.
Remove the air duct.
1.
Disassemble the top plate.
2.
Remove the cover cabinet and front bulkhead.
3.
Remove the drum assembly and front bulkhead.
4.
Disconnect the air duct from the front bulkhead.
5.
Remove the rollers from the front bulkhead.
and rear bulkhead.
