MOTOR DIAGRAM AND SCHEMATIC
6
Contact On / Off by Centrifugal Switch
STOP MODE
(When Motor does not operate)
RUN MODE
(Motor operates)
When checking components, turn the power off and discharge voltage.
NOTE
Centrifugal switch
Centrifugal switch
(Pull Drive forward)
21
7

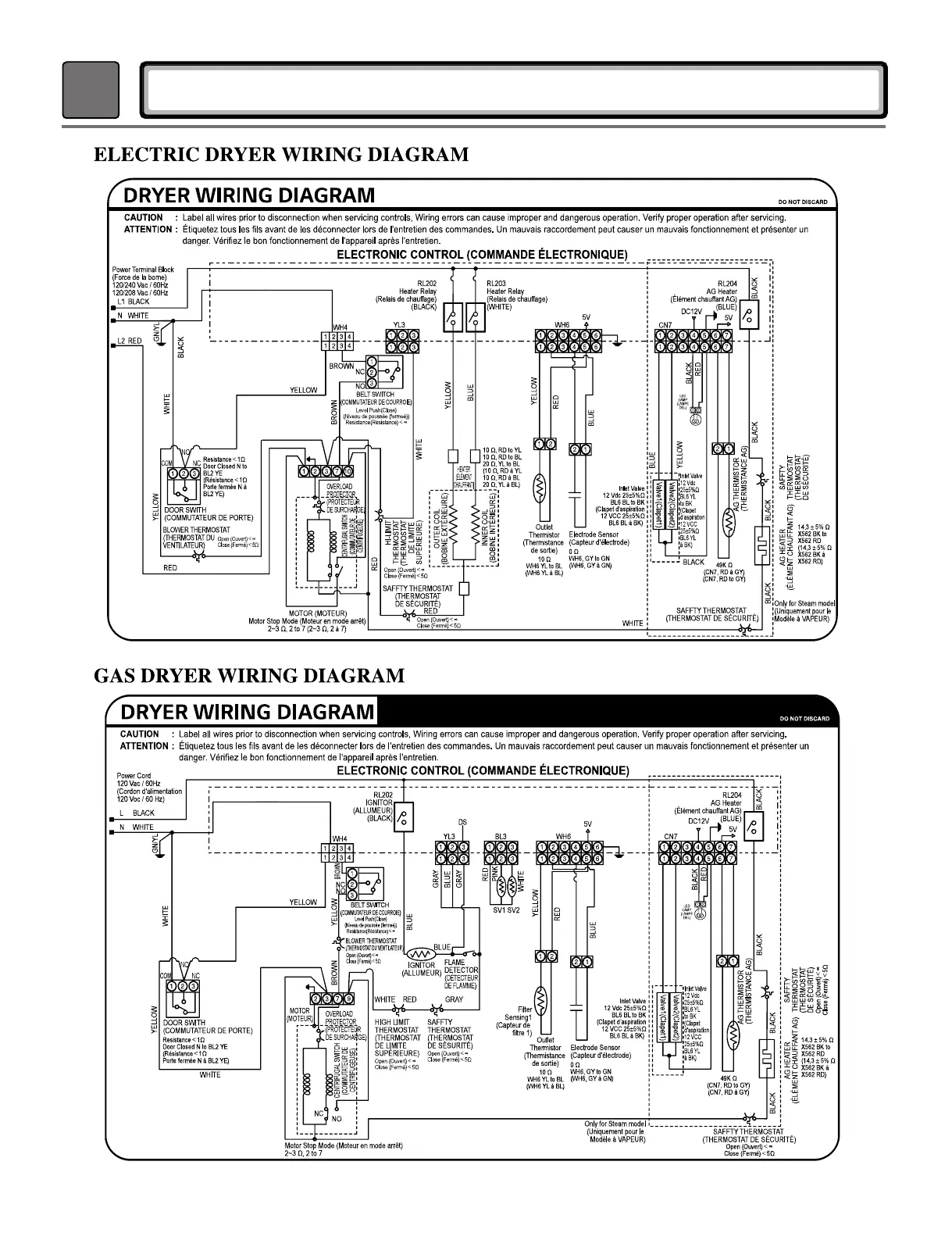

WIRING DIAGRAM
18
(ELECTRIC DRYER)
(GAS DRYER)

Other manuals for LG DLGX4001B

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the LG DLGX4001B and is the answer not in the manual?

LG DLGX4001B Specifications

General IconGeneral
Typefront load; gas
Colorblack steel; white (w), black steel (b)
Dryer Capactity7.4 cu. ft.
Number of Cycles12
Number of Options12; more time, less time, damp dry signal, wrinkle care, control lock, wi-fi, energy saver, turbosteam™, reduce static, remote start, drum light, signal
Drying Levelsvery dry, more dry, normal dry, less dry, damp dry
Ventingvented; electric: 4 way venting / gas: 3 way venting
Temperature Settingshigh, med.high, medium, low, ultra low; 5
Control Paneldigital and knobs
Cycle Signalyes
Interior Lightyes
Drying Rackno
Sensor Dry Optionyes
Sanitize Optionyes
Steamturbosteam™; yes
Smart Homeyes
Remote Controlyes
Wi-Fiyes
Voltage120 volts
Current15
Weight and Dimensions IconWeight and Dimensions
Depth30 1/8 inch
Height39 inch
Width27 inch
Net Weight139.3 lbs
