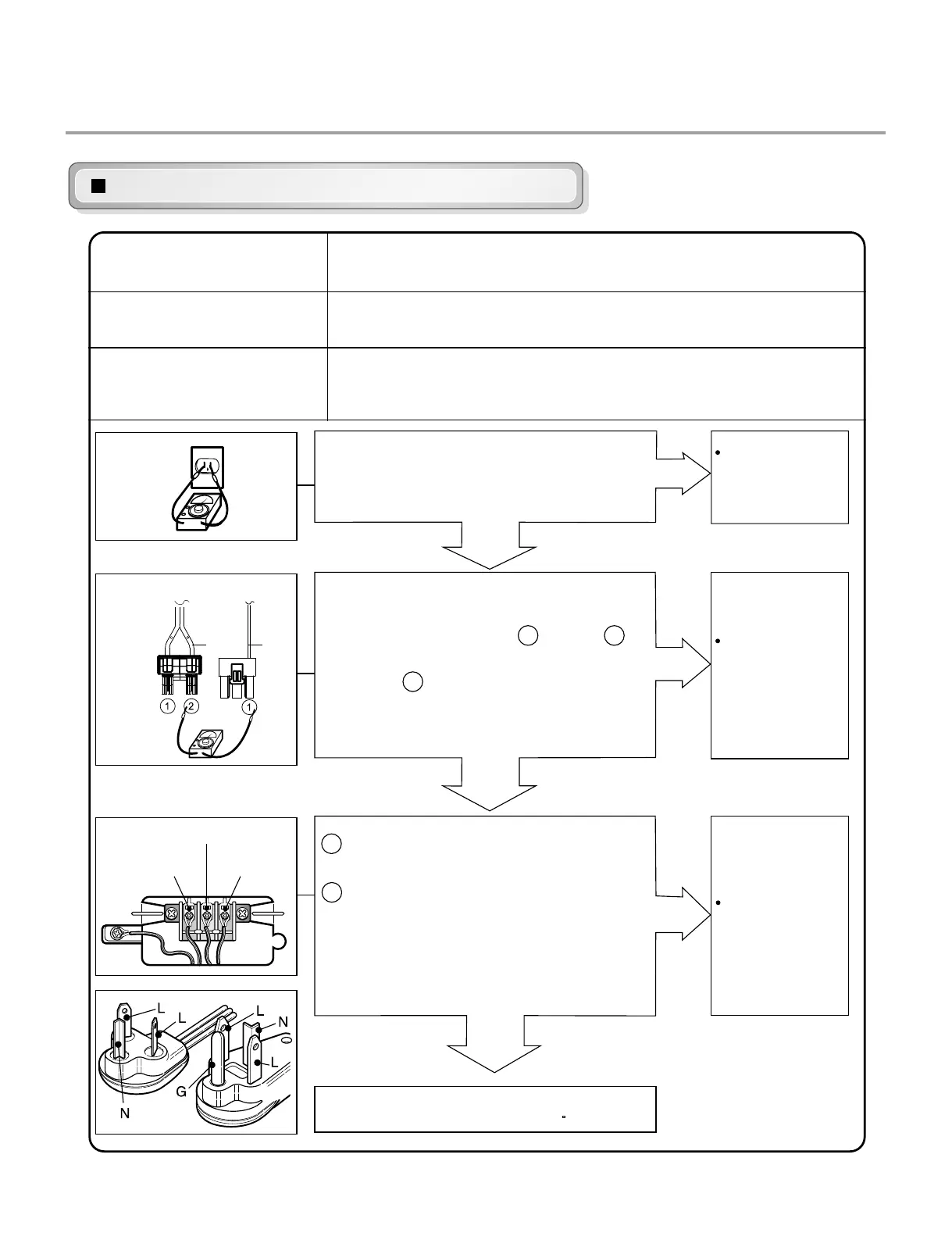

Test 1
XYW}GhjGlGz
When measuring power, be sure to wear insulated gloves to
avoid an electric shock.
No power was applied to controller. Display (LCD or LED) off.
Dryer power on, collector plugged in.
Check the outlet, is the voltage
110 V ~ 125 V AC?
YES
NO
Check the
fuse or circuit
breaker
YES
NO
Check if
power cord is
properly
connected.
Reconnect
the controller.
Replace controIler.
Check if the controller wire is
disconnected.
Check if terminal block and power
cord are connected (Check Plug ).
- Does power cord N (Naturall) line
match to terminal center
N (Natural) line?
1
YES
NO
2
L (Black) L (Red)
N (White)
BK or WH BL2
Check if the voltage measured
between connector BK- or WH-
(Black Wire) linked to the controller
and BL2- (White Wire) Is 110~125 V?
2 2
1
j
{GzG
t
jG
36

LG DLGX4001B Specifications

General

Type	front load; gas
Color	black steel; white (w), black steel (b)
Dryer Capactity	7.4 cu. ft.
Number of Cycles	12
Number of Options	12; more time, less time, damp dry signal, wrinkle care, control lock, wi-fi, energy saver, turbosteam™, reduce static, remote start, drum light, signal
Drying Levels	very dry, more dry, normal dry, less dry, damp dry
Venting	vented; electric: 4 way venting / gas: 3 way venting
Temperature Settings	high, med.high, medium, low, ultra low; 5
Control Panel	digital and knobs
Cycle Signal	yes
Interior Light	yes
Drying Rack	no
Sensor Dry Option	yes
Sanitize Option	yes
Steam	turbosteam™; yes
Smart Home	yes
Remote Control	yes
Wi-Fi	yes
Voltage	120 volts
Current	15

Weight and Dimensions

Depth	30 1/8 inch
Height	39 inch
Width	27 inch
Net Weight	139.3 lbs
