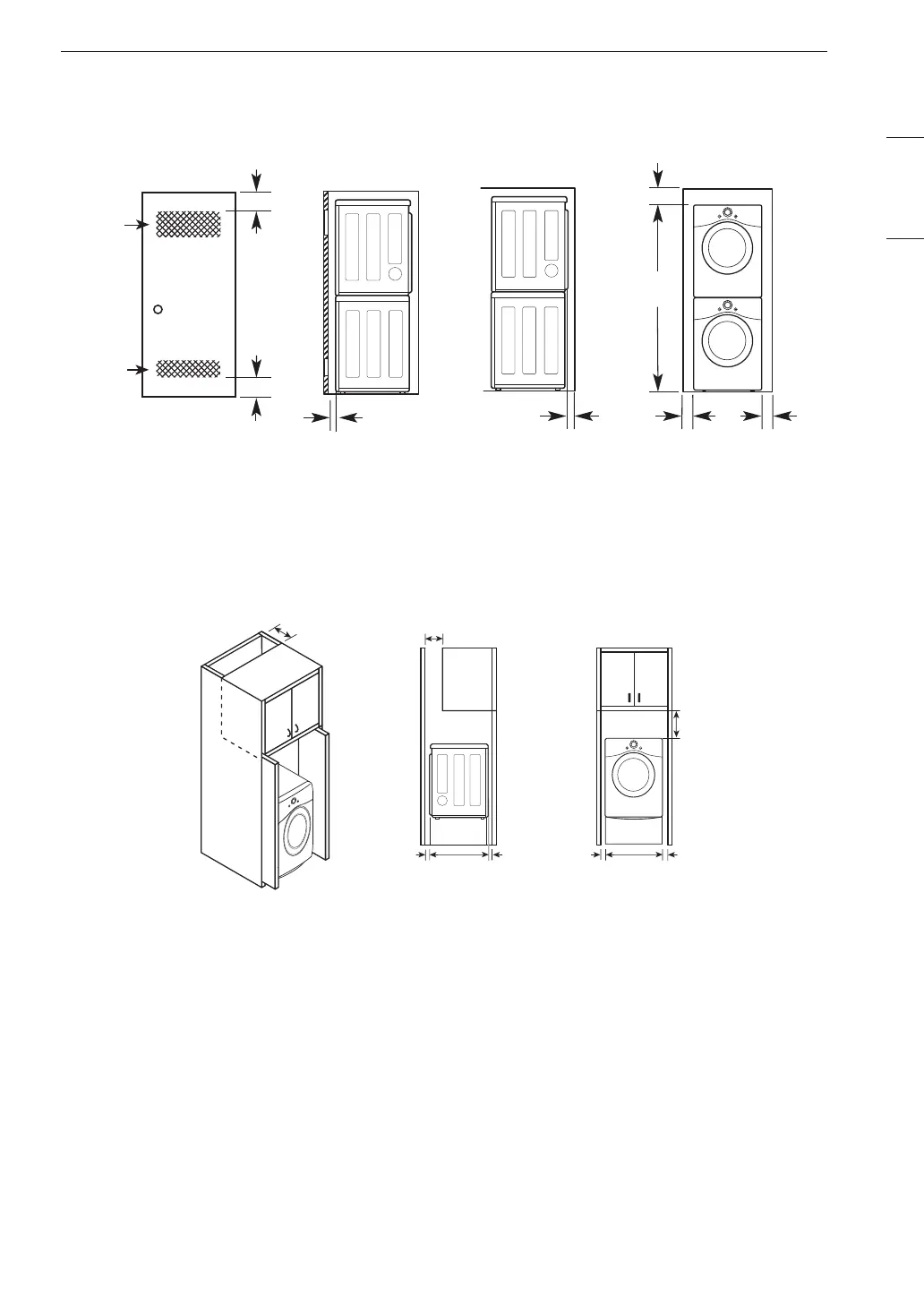

Installation Spacing for Recessed Area or Closet, with Stacked Washer and
Dryer
24 in.
2*
(155 cm
2
)
2*
(310 cm
2
)
48 in.
3" *
(76 mm)
3"
*
(76 mm)
1" *
(25 mm)
1"
(25 mm)
1"
(25 mm)
27"
(686 mm)
5 ½" **
(140 mm)
6"
*
(152 mm)
77 ½"
(1968 mm)
* Required spacing
** For side or bottom venting, 2-inch (5.1 cm) of spacing is allowed.
Installation Spacing for Cabinet
For cabinet installation with a door, minimum ventilation openings in the top of the cabinet are required.
* Required spacing
7" *
(178 mm)
7" *
(178 mm)
9" *
1"
(25 mm)
1"
(25 mm)
27"
(686 mm)
5"*
(127 mm)
1"*
(25 mm)
30 - 30 1/8"
(761 - 765mm)
(229 mm)
NOTE
• The images in this manual may be different from the actual components and accessories which are
subject to change by the manufacturer without prior notice for product improvement purposes.
