31INSTALLATION
ENGLISH
5
End of cycle.
(DLEX4200*,DLGX4201*, DLEX4000*,
DLGX4001*, DLEX4500*, DLGX4501*)
At the end of the test cycle, will display.
The test cycle will end and the dryer will shut off
automatically after a short delay.
(DLE3600*,DLG3601*)
At the end of the test cycle, will display. The
test cycle will end and the dryer will shut off
automatically after a short delay.
Check the display for results.
(DLEX4200*,DLGX4201*, DLEX4000*,
DLGX4001*, DLEX4500*, DLGX4501*)
During the test cycle, monitor the Flow Sense™
display on the control panel. If the Flow Sense™
LED has not turned on, when the cycle ends,
the exhaust system is adequate. If the exhaust
system is severely restricted, the Flow Sense™
LED will turn on. Other problems may also be
shown with error codes. See the chart on the
next page for error code details and solutions.
LED turned on:
RESTRICTED
The Flow Sense™ LED indicates that the
exhaust system is severely restricted. Have the
system checked immediately, as performance
will be poor.
(DLE3600*,DLG3601*)
During the test cycle, monitor the Flow Sense™
display on the control panel. If no bars are
displayed, when the cycle ends, the exhaust
system is adequate. If the exhaust system is
severely restricted, the display will show four
bars. Other problems may also be shown with
error codes. Refer to the next page for error
code details and solutions.
NO BARS:
OK
FOUR BARS:
RESTRICTED
Four bars indicates that the exhaust system is
severely restricted. Have the system checked
immediately, as performance will be poor.
3
Press the START/PAUSE button.
The dryer will start the test, which will last a
few minutes. The heat will be turned on and the
temperatures in the drum will be measured.
4
(DLEX4200*, DLGX4201*, DLEX4000*,
DLGX4001*, DLEX4500*, DLGX4501*) Press
and hold Signal and Temp.
(DLE3600*, DLG3601*) Press and hold
Energy Saver and Temp.
Then press the Power button.
(On models with a glass touch control panel,
press the Power button then IMMEDIATELY
press and hold the other 2 buttons.
This button sequence activates the installation
test. The code will display if the activation
is successful.
(DLE3600*,DLG3601*)
(DLEX4200*,DLGX4201*
DLEX4000*,DLGX4001*,
DLEX4500*, DLGX4501*)
2

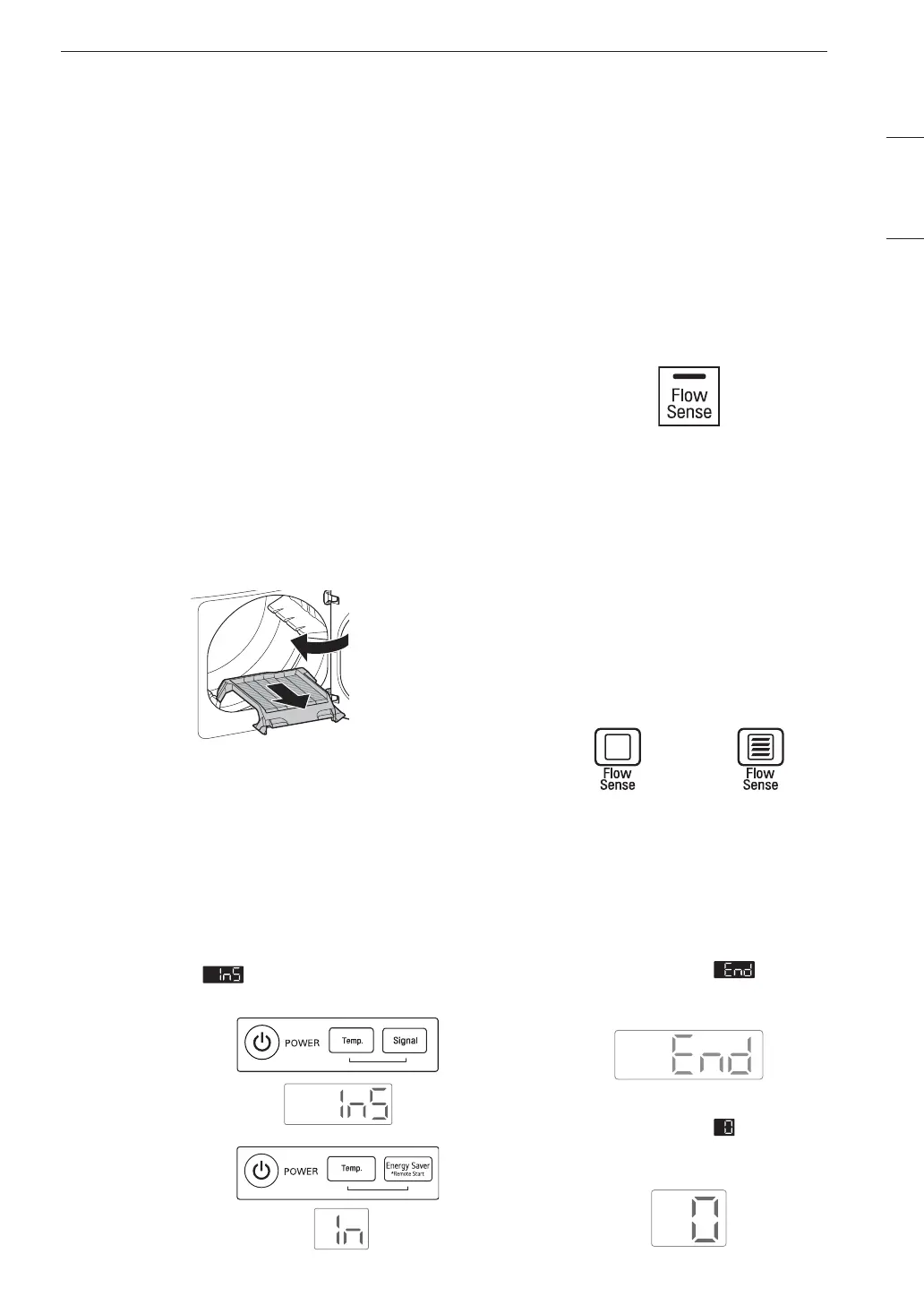

Installation Test (Duct Check)
Once you have completed the installation of the
dryer, use this test to make sure the condition of the
exhaust system is adequate for proper operation of
the dryer. This test should be performed to alert you
to any serious problems in the exhaust system of
your home.
Your dryer features Flow Sense™, an innovative
sensing system that automatically detects
blockages and restrictions in dryer ductwork.
Keeping ductwork clean of lint buildup and free of
restrictions allows clothes to dry faster and reduces
energy use.
NOTE
The dryer should be cool before starting this test. If
the dryer was warmed up during installation, run the
Air Dry cycle for a few minutes to reduce the interior
temperature.
Activating the Installation Test
1
Remove the drying rack and literature, and
then close the door.
Do not load anything in the drum for this test, as
it may affect the accuracy of the results.
