28 INSTALLATION
Three-Wire Power Cord
• A 3-wire connection is NOT permitted
on new construction after January 1,
1996.
• A UL-listed strain relief is required.
• Use a 30-amp, 240-volt, 3-wire,
UL-listed power cord with #10 AWG-
minimum copper conductor and closed
loop or forked terminals with upturned
ends.

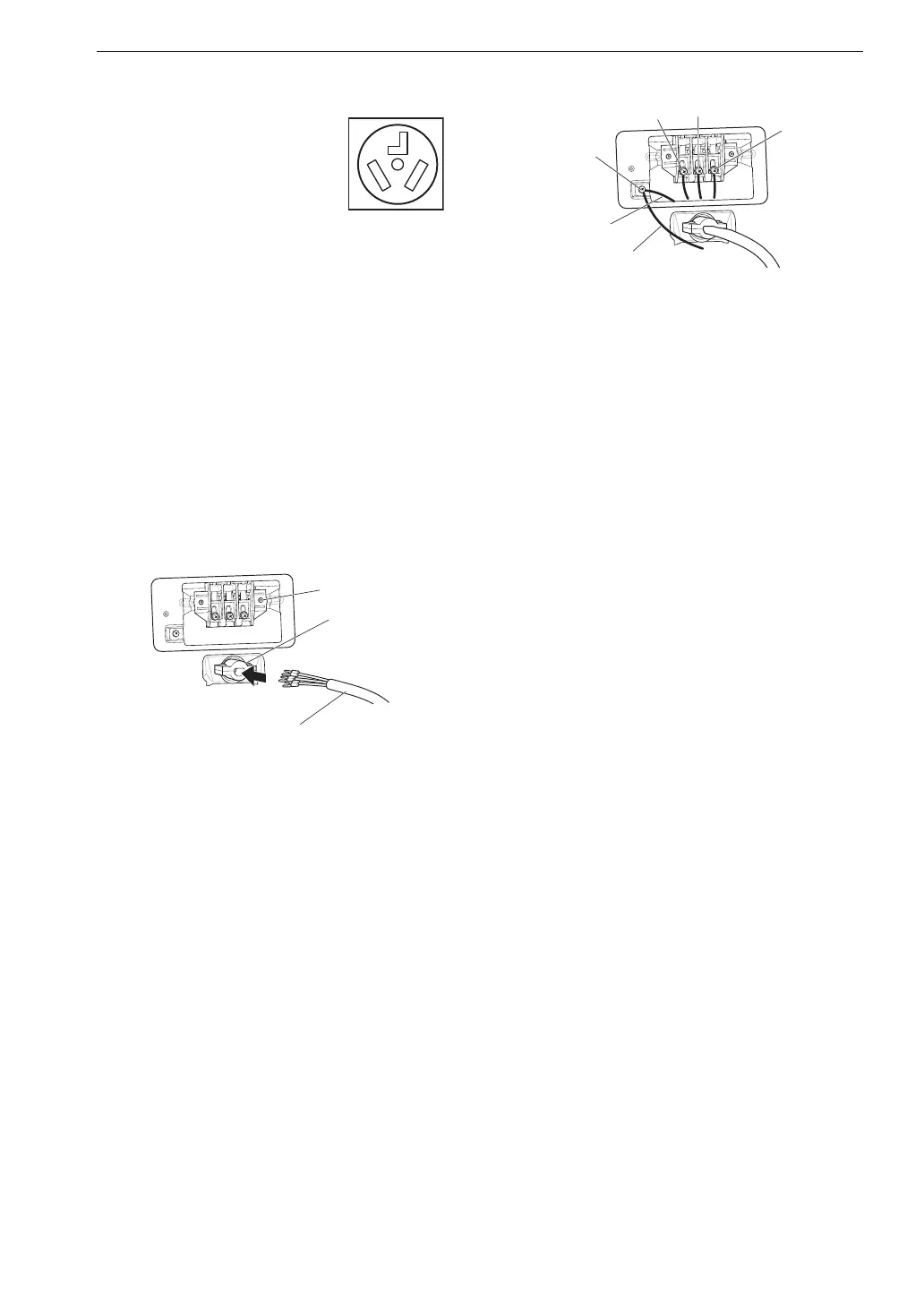

1
Remove the terminal block access cover on the
upper back of the dryer.
2
Install a UL-listed strain relief into the power
cord through-hole.
3
Thread a 30-amp, 240-volt, 3-wire, UL-listed
power cord with #10 AWG-minimum copper
conductor through the strain relief.
Terminal Block
UL-Listed Strain
Relief
UL-Listed 3-Wire Power
Cord
4
Attach the two hot leads (black and red) of the
power cord to the outer terminal block screws.
5
Attach the neutral (white) wire to the center
terminal block screw.
6
Connect the external ground (if required by local
codes) to the green ground screw.
7
Tighten all screws securely.
8
Reinstall the terminal block access cover.
Hot (Black)
Ground Screw
White Wire from Dryer
harness
External Ground Wire (If
required by local codes)
Hot (Red)
Neutral (White)

LG DLGX4001B Specifications

General

Type	front load; gas
Color	black steel; white (w), black steel (b)
Dryer Capactity	7.4 cu. ft.
Number of Cycles	12
Number of Options	12; more time, less time, damp dry signal, wrinkle care, control lock, wi-fi, energy saver, turbosteam™, reduce static, remote start, drum light, signal
Drying Levels	very dry, more dry, normal dry, less dry, damp dry
Venting	vented; electric: 4 way venting / gas: 3 way venting
Temperature Settings	high, med.high, medium, low, ultra low; 5
Control Panel	digital and knobs
Cycle Signal	yes
Interior Light	yes
Drying Rack	no
Sensor Dry Option	yes
Sanitize Option	yes
Steam	turbosteam™; yes
Smart Home	yes
Remote Control	yes
Wi-Fi	yes
Voltage	120 volts
Current	15

Weight and Dimensions

Depth	30 1/8 inch
Height	39 inch
Width	27 inch
Net Weight	139.3 lbs
