LG DLGX5171W - CHANGE GAS SETTING; Valve Setting Procedure; Orifice Change Procedure

35
GAS IGNITION

 

 
 

VALVE 1
IGNITER
VALVE 2
FLAME
DETECT

GAS VALVE STRUCTURE

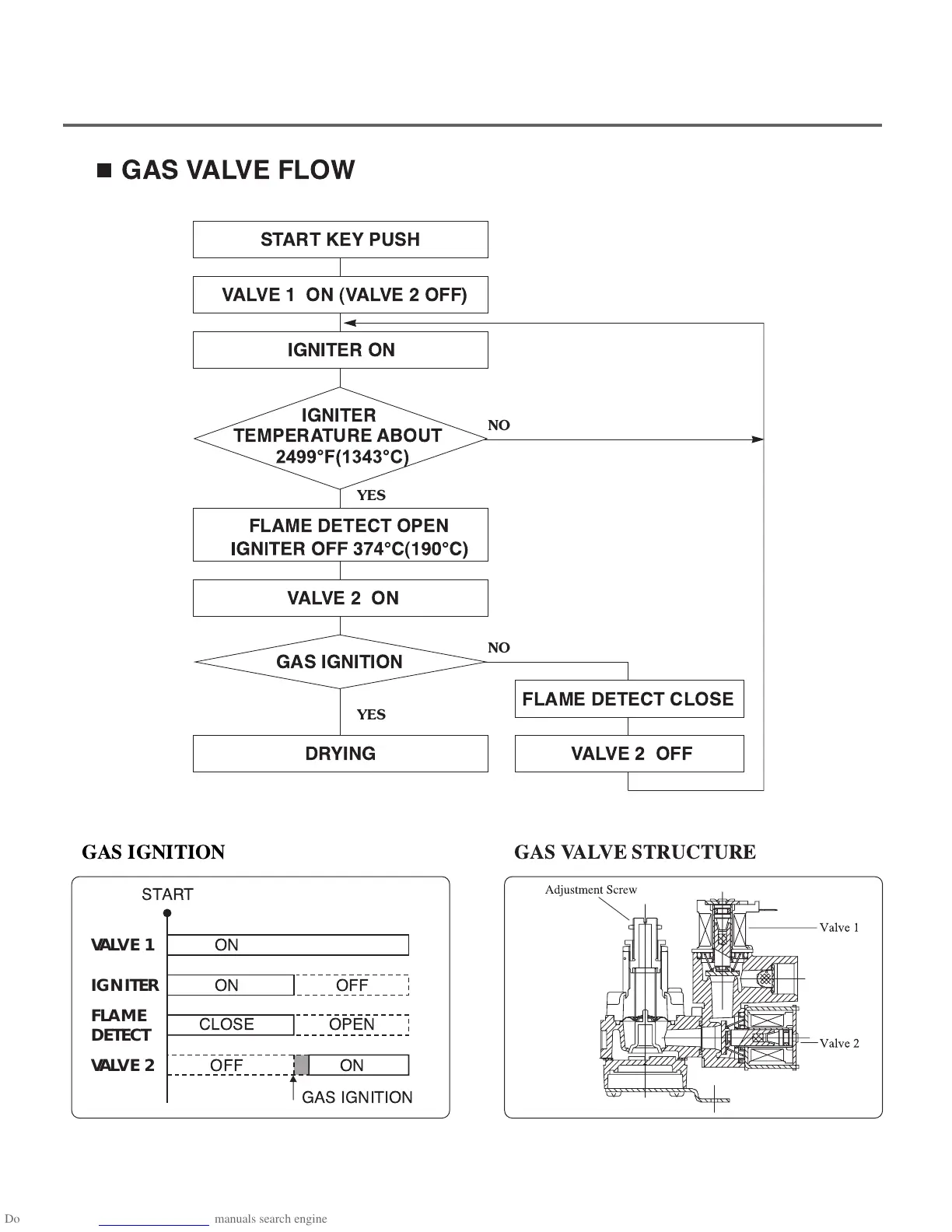

GAS VALVE FLOW
START KEY PUSH
DRYING
)FFO2EVLAV(NO1EVLAV
VALVE 2 ON
IGNITER ON
FLAME DETECT OPEN
IGNITER
TEMPERATURE ABOUT
GAS IGNITION
FLAME DETECT CLOSE
VALVE2 OFF
NO
NO
YES
YES
