INSTALLATION

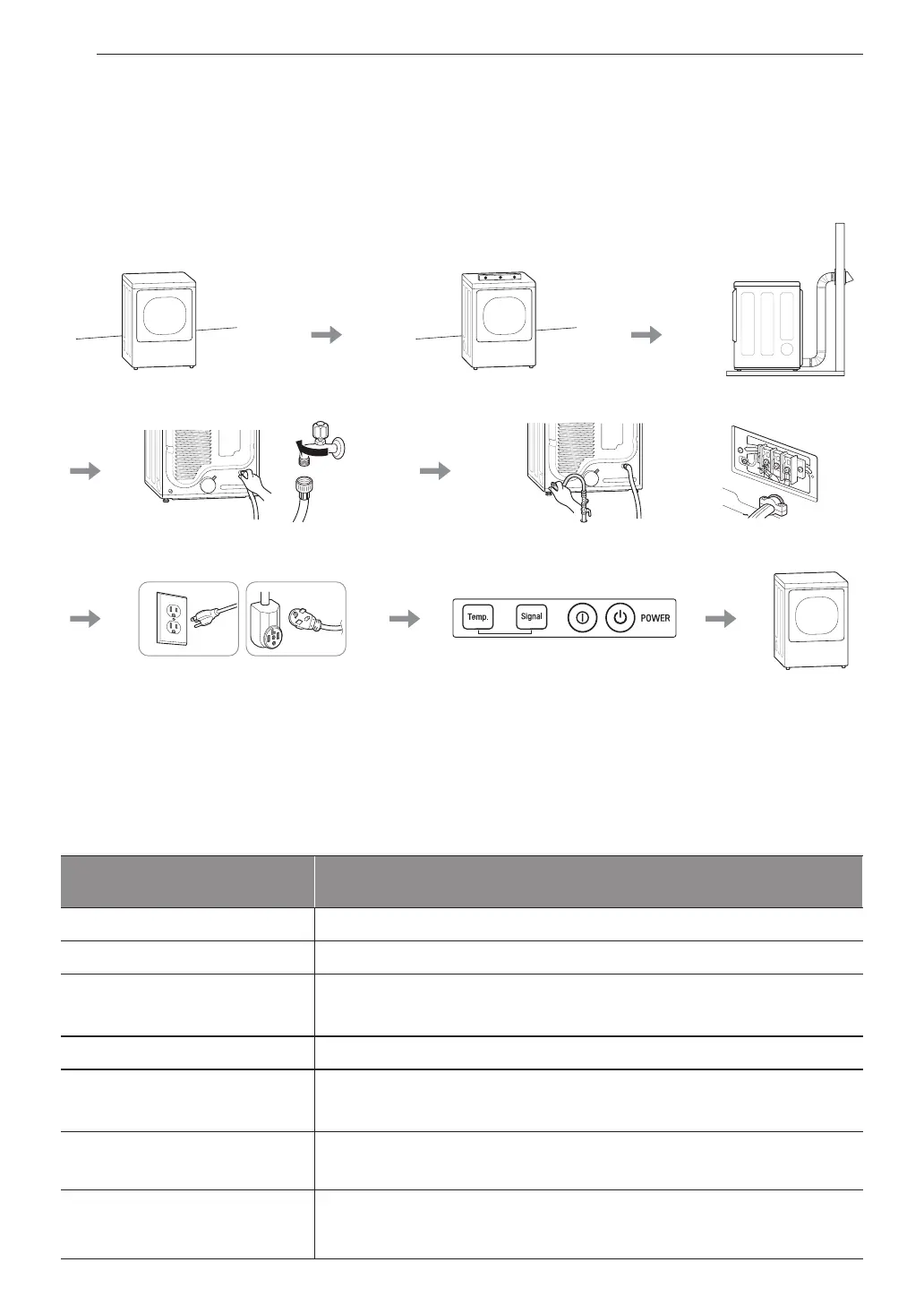

InstallationOverview

Please read the following installation instructions first after purchasing this product or transporting it to another

location.

Check and choose

the proper location

Connect the inlet hose

(steam models)

Connect gas dryers

Connect electric dryers

Plug in the power cord Installation test Test run

Gas dryer Electric dryer

Level the dryer

Vent the dryer

Product Specifications

The appearance and specifications listed in this manual may vary due to constant product improvements.

Dryer Models

DLEX7900*E, DLEX7800*E, DLEX7880*E

DLGX7901*E, DLGX7801*E, DLGX7881*E

Description Steam Dryer

Electricalrequirements

Please refer to the rating label regarding detailed information.

Gasrequirements

NG: 4–10.5-inch WC

LP: 8–13-inch WC

Max. water pressure 20–120 psi (138–827 kPa)

Dimensions

27” (W) X 29 1/2” (D) X 44 1/4” (H), 50 1/4” (D with door open)

68.6 cm (W) X 75.0 cm (D) X 112.3 cm (H), 127.5 cm (D with door open)

Net weight

Gas dryer : 129.8 lb (58.9 kg)

Electric dryer : 124.8 lb (56.6 kg)

Drying capacity

- Normal cycle

- Steam cycle

IEC 7.3 cu.ft. (22.5 lb/10.2 kg)

IEC 7.3 cu.ft.(8 lb/3.6 kg)

LG DLGX7801 E Series User Manual
