LG DS80QY User Manual

37
Connecting to an External Device
Connecting with an HDMI Cable
Connect the TV and external device (game console, DVD player, etc.) with an HDMI cable and enjoy a deep and rich
sound.

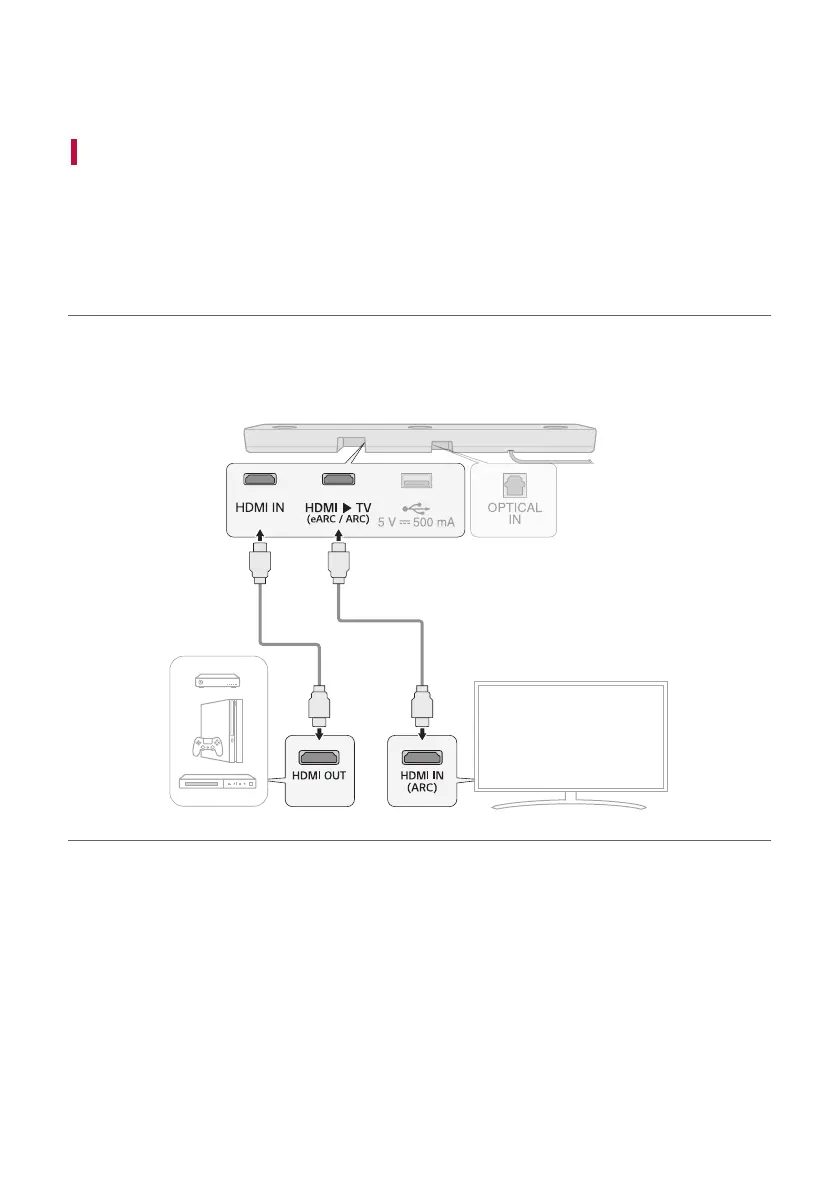

Connecting an external device via HDMI
a Connect an external device such as a DVD or Blu-ray player. Following the picture below, connect the HDMI
OUT terminal of the device to the HDMI IN terminal on the back of the product.
b Using the HDMI cable, connect the HDMI d TV (eARC / ARC) terminal on the back of the product to the
HDMI IN (ARC) terminal on the TV.
Connecting to an External Device

LG DS80QY Specifications

General

Audio decoders	DTS Digital Surround, DTS-HD HR, DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD
TV Sound Share	Yes
RMS rated power	480 W
Audio output channels	3.1.3 channels
Audio sample rate (24bit)	96 kHz
Soundbar speaker RMS power	- W
Subwoofer location	Separate
Subwoofer connectivity	Wireless
Product color	Steel
Wall mountable	-
Virtual assistant	Amazon Alexa & Google Assistant
Audio formats supported	AAC, AAC+, FLAC, LPCM, MP3, OGG, WAV
High Dynamic Range (HDR) technology	Dolby Vision
HDCP version	2.3
Bluetooth version	5.0
Number of products included	1 pc(s)

Weight and Dimensions

Depth	135 mm
Width	1000 mm
Height	63 mm
Subwoofer depth	403 mm
Subwoofer width	201.7 mm
Subwoofer height	407 mm
