LG DS80QY User Manual

53

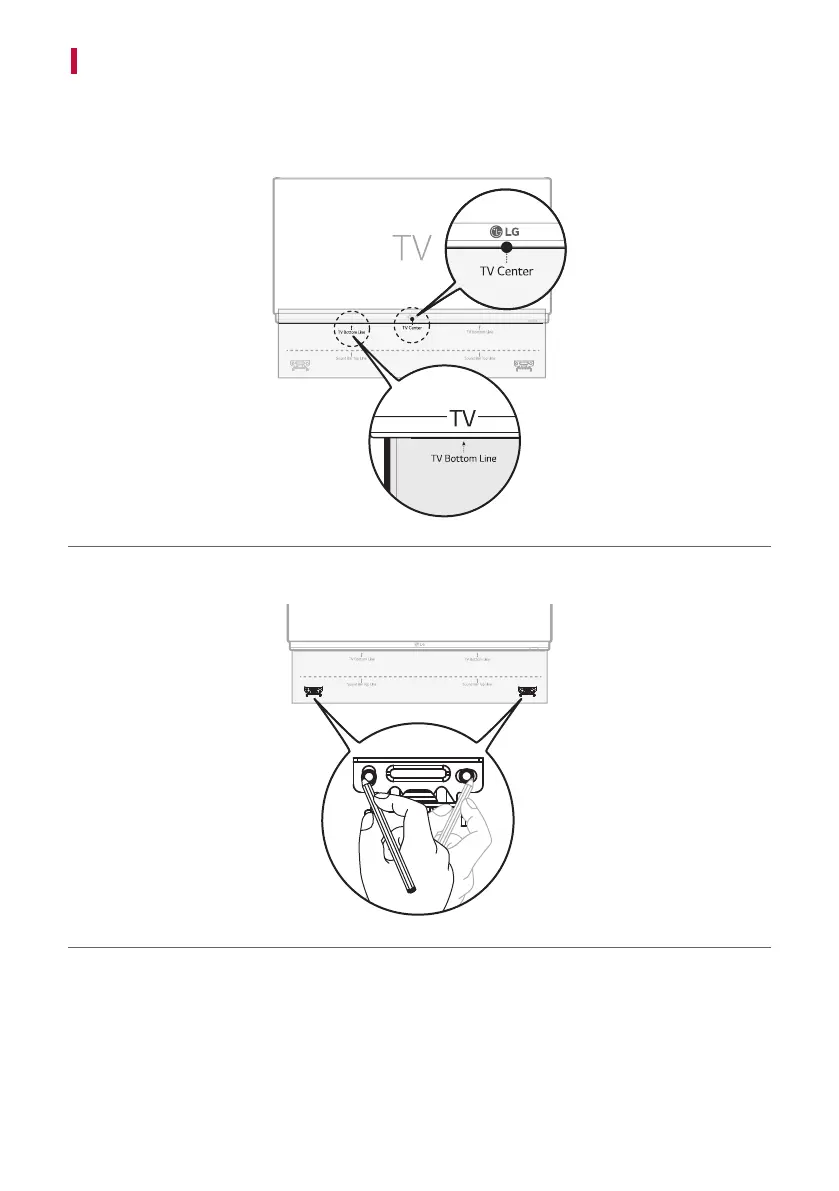

Mounting the Product to a Wall
a Find the wall bracket installation guide in the product package.
b Align the “TV Bottom Line” on the wall bracket installation guide with the bottom of the TV, and attach it to
the wall. Align the centre of the wall-mounted TV with the part marked “TV Center” in the installation guide.
c With a pen, mark screw holes on the installation guide where the wall brackets will be attached.
d Drill screw holes in the marked positions on the installation guide.
e Remove the wall bracket installation guide from the wall.

LG DS80QY Specifications

General

Audio decoders	DTS Digital Surround, DTS-HD HR, DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD
TV Sound Share	Yes
RMS rated power	480 W
Audio output channels	3.1.3 channels
Audio sample rate (24bit)	96 kHz
Soundbar speaker RMS power	- W
Subwoofer location	Separate
Subwoofer connectivity	Wireless
Product color	Steel
Wall mountable	-
Virtual assistant	Amazon Alexa & Google Assistant
Audio formats supported	AAC, AAC+, FLAC, LPCM, MP3, OGG, WAV
High Dynamic Range (HDR) technology	Dolby Vision
HDCP version	2.3
Bluetooth version	5.0
Number of products included	1 pc(s)

Weight and Dimensions

Depth	135 mm
Width	1000 mm
Height	63 mm
Subwoofer depth	403 mm
Subwoofer width	201.7 mm
Subwoofer height	407 mm
