4
Hooking up the unit

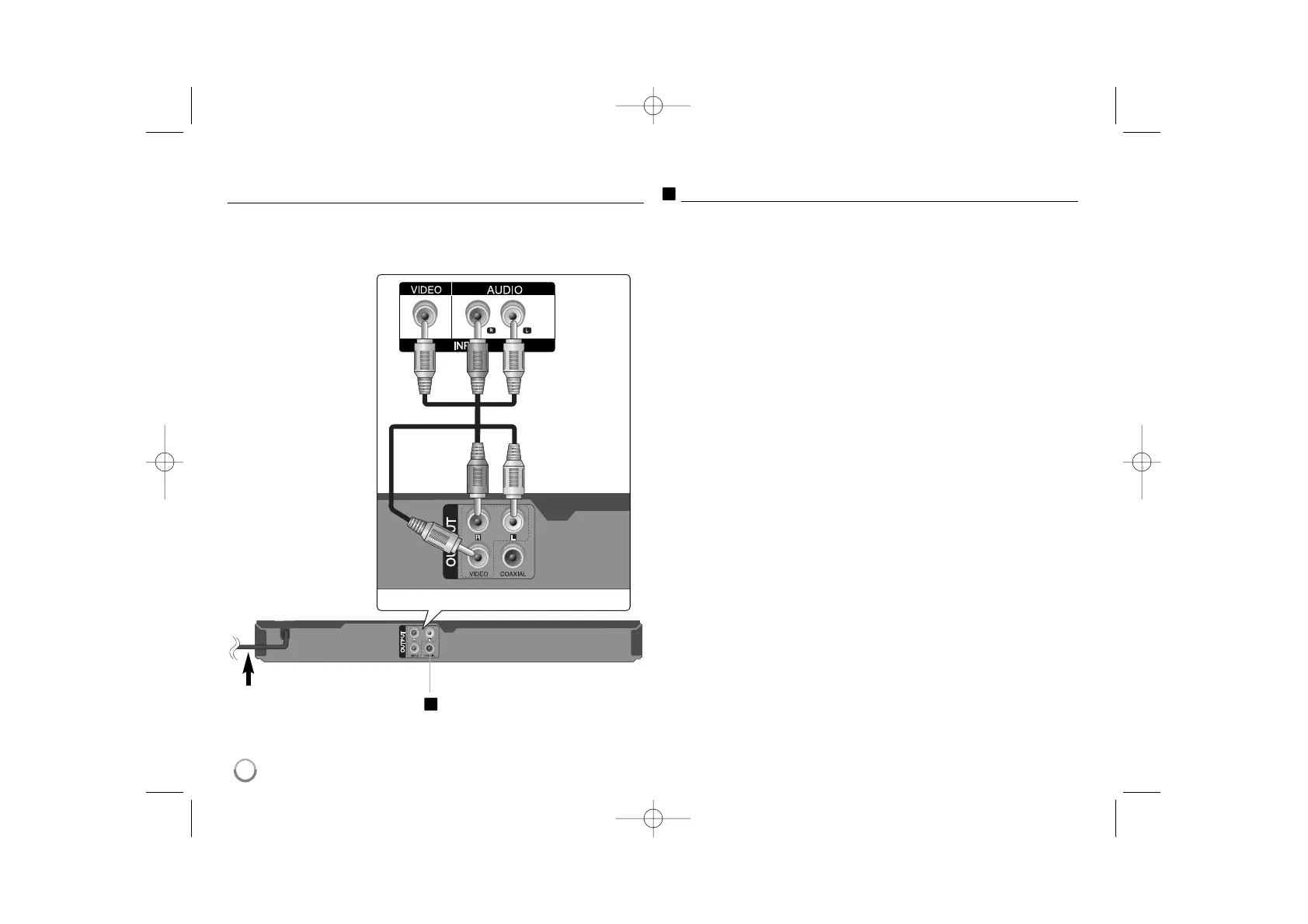

Audio and Video Connection
The unit’s Audio/Video jacks are color coded (yellow for video, red for right
audio and white for left audio). If your TV has only one input for audio (mono),
connect it to the left (white) audio jack on the unit.
Hooking up the unit - more you can do
Digital Audio Output Connection
Connect one of the unit’s COAXIAL jack to the corresponding jack on your
amplifier.
• If the audio format of the digital output does not match the capabilities of
your amplifier, the amplifier will produce a strong, distorted sound or no
sound at all.
• To see the audio format of the current disc in the on-screen display, press
AUDIO.
• This unit does not perform internal (2 channel) decoding of a DTS sound
track. To enjoy DTS multi channel surround, you must connect this unit to
a DTS compatible amplifier via one of this unit’s digital audio outputs.
A
A
Connect the AC
power cord into the
power outlet.
Rear of DVD player
Rear of TV
To Next Page
