- 15 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
4. Manual Adjustment
4.1. ADC adjustment need not. Because of
OTP(Auto ADC adjustment)
4.2. EDID DATA
HDMI EDID DATA 3D
- HDMI1 ~ HDMI4
- In the data of EDID, bellows may be different by Input mode.
ⓐ Product ID
ⓑ Serial No: Controlled on production line.
ⓒ Month, Year: Controlled on production line:
ex) Monthly : ‘01’ → ‘01’, Year : ‘2014’ → ‘18’
ⓓ Model Name(Hex): LGTV
ⓔ Checksum(LG TV): Changeable by total EDID data.
ⓕ Vendor Specific(HDMI)
ⓖ Colorimetry Data Block(HDMI) : Not supporting XvYcc
5. White Balance Adjustment
5.1. Overview
5.1.1. W/B adj. Objective & How-it-works
(1) Objective: To reduce each Panel's W/B deviation
(2) How-it-works : When R/G/B gain in the OSD is at 192, it
means the panel is at its Full Dynamic Range. In order to
prevent saturation of Full Dynamic range and data, one of
R/G/B is fixed at 192, and the other two is lowered to find
the desired value.
(3) Adjustment condition : normal temperature
1) Surrounding Temperature : 25 °C ± 5 °C
2) Surrounding Humidity : 20 % ~ 80 %
3) Surrounding Humidity: 20% ~ 80%
4) Before White balance adjustment, Keep power on
status, don’t power off
5.1.2. Adj. condition and cautionary items
(1) Lighting condition in surrounding area surrounding lighting
should be lower 10 lux. Try to isolate adj. area into dark
surrounding.
(2) Probe location: Color Analyzer(CA-210) probe should be
within 10 cm and perpendicular of the module surface
(80°~ 100°).
(3) Aging time
1) After Aging Start, Keep the Power ON status during 5
Minutes.
2) In case of LCD, Back-light on should be checked using
no signal or Full-white pattern.
5.2. Equipment
(1) Color Analyzer: CA-210 (NCG: CH 9 / WCG: CH12 / LED:
CH14 / OLED : CH : 17)
(2) Adjustment Computer(During auto adj., RS-232C protocol
is needed)
(3) Adjustment Remote control
(4) Video Signal Generator MSPG-925F 720p/204-Gray
(Model: 217, Pattern: 49)
▪ Color Analyzer Matrix should be calibrated using CS-1000.

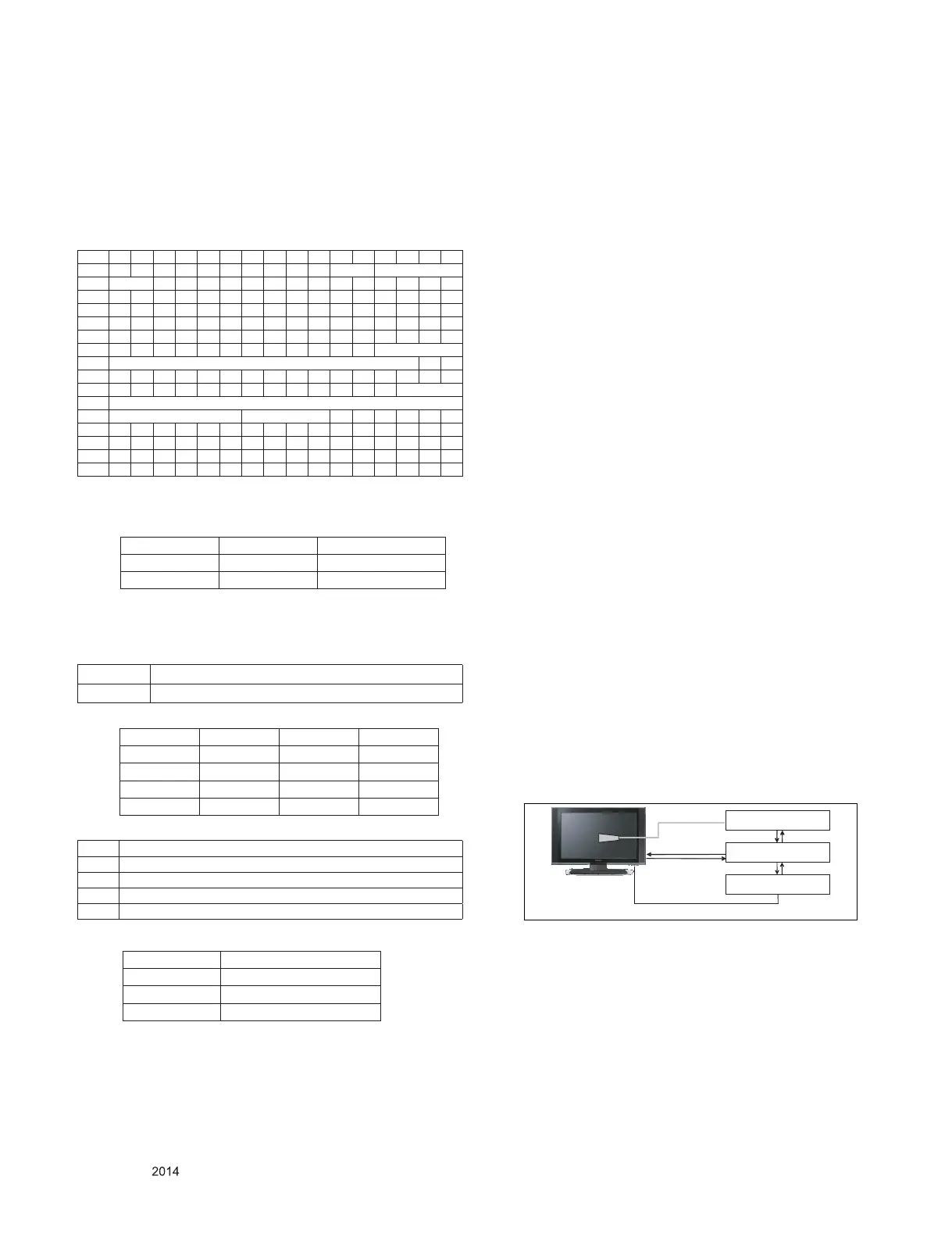

5.3. Equipment connection MAP
0 1 2 3 4 5 6 7 8 9 A B C D E F
0 00 FF FF FF FF FF FF 00 1E 6D
ⓐ ⓑ
10
ⓒ
01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 8 00 31 40 45 40 61 40 71 40 81 80
30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30
50 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20
ⓓ
70
ⓓ
01
ⓔ1
80 02 03 3A F1 4E 10 9F 04 13 05 14 03 02 12 20 21
90 22 15 01 29 3D 06 C0 15 07 50 09 57 07
ⓕ
A0
ⓕ
B0
ⓕ ⓖ
02 3A 80 18 71 38
C0 2D 40 58 2C 45 00 40 84 63 00 00 1E 01 1D 80 18
D0 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 01 1D
E0 00 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 00 1E
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
ⓔ2
HEX EDID Table DDC Function
0001 0100 Analog
0001 0100 Digital
Chassis MODEL NAME(HEX)
ED42D 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20
Input ⓔ1 ⓔ2 ⓔ3
HDMI1 E7 85 X
HDMI2 E7 75 X
HDMI3 E7 65 X
HDMI4 E7 55 X
INPUT MODEL NAME(HEX)
HDMI1 E3 05 00 00
HDMI2 E3 05 00 00
HDMI3 E3 05 00 00
INPUT MODEL NAME(HEX)
HDMI1 78 03 0C 00 10 00 B8 2D 20 C0 0E 01 4F 00 FE 08 10 06 10 18 10 28 10 38 10
HDMI2 78 03 0C 00 20 00 B8 2D 20 C0 0E 01 4F 00 FE 08 10 06 10 18 10 28 10 38 10
HDMI3 78 03 0C 00 30 00 B8 2D 20 C0 0E 01 4F 00 FE 08 10 06 10 18 10 28 10 38 10
HDMI4 78 03 0C 00 40 00 B8 2D 20 C0 0E 01 4F 00 FE 08 10 06 10 18 10 28 10 38 10
Color Analyzer
Computer
* Pattern Generator
RS-232C
USB to RS-232C
RS-232C
Probe
Signal Source
* If TV internal pattern is used, not needed
To Next Page
