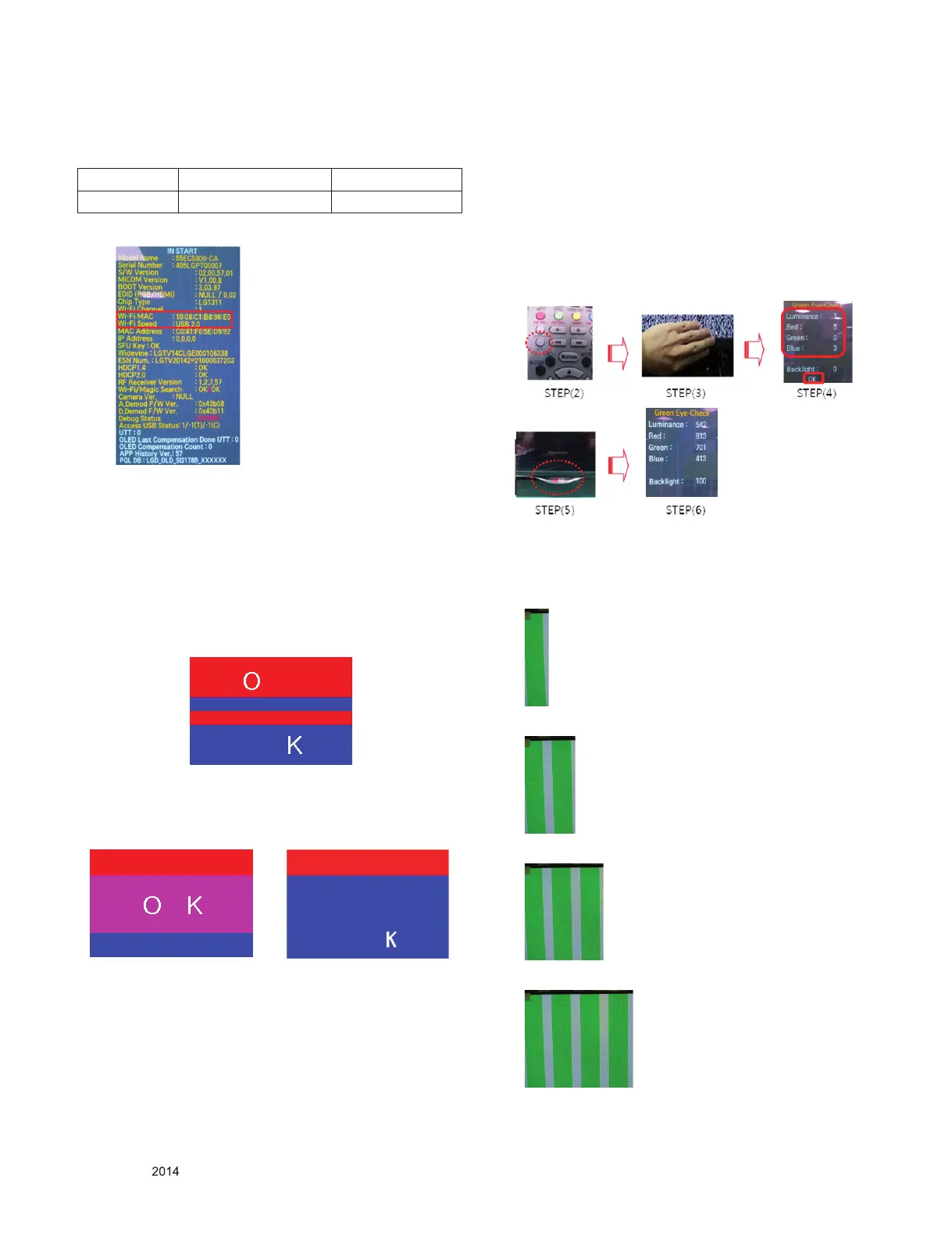

- 17 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
8. WIFI MAC ADDRESS CHECK
(1) Using RS232
(2) Check the menu on in-start
9. 3D pattern test
9.1. Test equipment
(1) Pattern Generator MSHG-600 or MSPG-6100 (HDMI 1.4
support)
(2) Pattern: HDMI mode (model No. 872, pattern No. 83)
9.2. Test method
(1) Input 3D test signal as below.
(2) Press ‘OK” key as a 3D input OSD is shown.
(3) Check pattern as Fig2 without 3D glasses. (3D mode
without 3D glasses)
10. Eye-Q function check
(1) Press 'EYE button' on the adjustment remote-control.
(2) Check each raw data.
(3) Cover 'Eye Q sensor' on the front of set with hand and wait
for 6 seconds.
(4) Check each data is lower than 10 and ‘OK’ message. If data
isn’t lower than 10 in 6 seconds, replace Eye Q sensor.
(5) Uncover hand from Eye Q sensor and wait for 6 seconds.
(6) Check each data increase or not. If data don’t increase,
replace Eye Q sensor.
11. Joystick function check
(1) Channel Up Test : Press UP KEY OF SET
(2) Channel Down Test : Press DOWN KEY OF SET
(3) Volume Up Test : Press Left KEY OF SET
(4) Volume Down Test : Press Right KEY OF SET
Command Set ACK
Transmission [A][I][][Set ID][][20][Cr] [O][K][X] or [NG]
<Fig.1> HDMI Mode No.872, Pattern No. 83
<Fig.2> OK in 3D mode without
3D glasses
<Fig.3> NG in 3D mode without
3D glasses
