LG F14030RD - Rotor, Stator, and Friction Damper Removal

44
• V ~ U (8~11Ω)
• U ~ W (8~11Ω)
• W ~ V (8~11Ω)
Motor Stator
U V W
Hall Sensor
Ha
Hb
Common
• Common ~ Ha (5~15kΩ)
• Common ~ Hb (5~15kΩ)
1

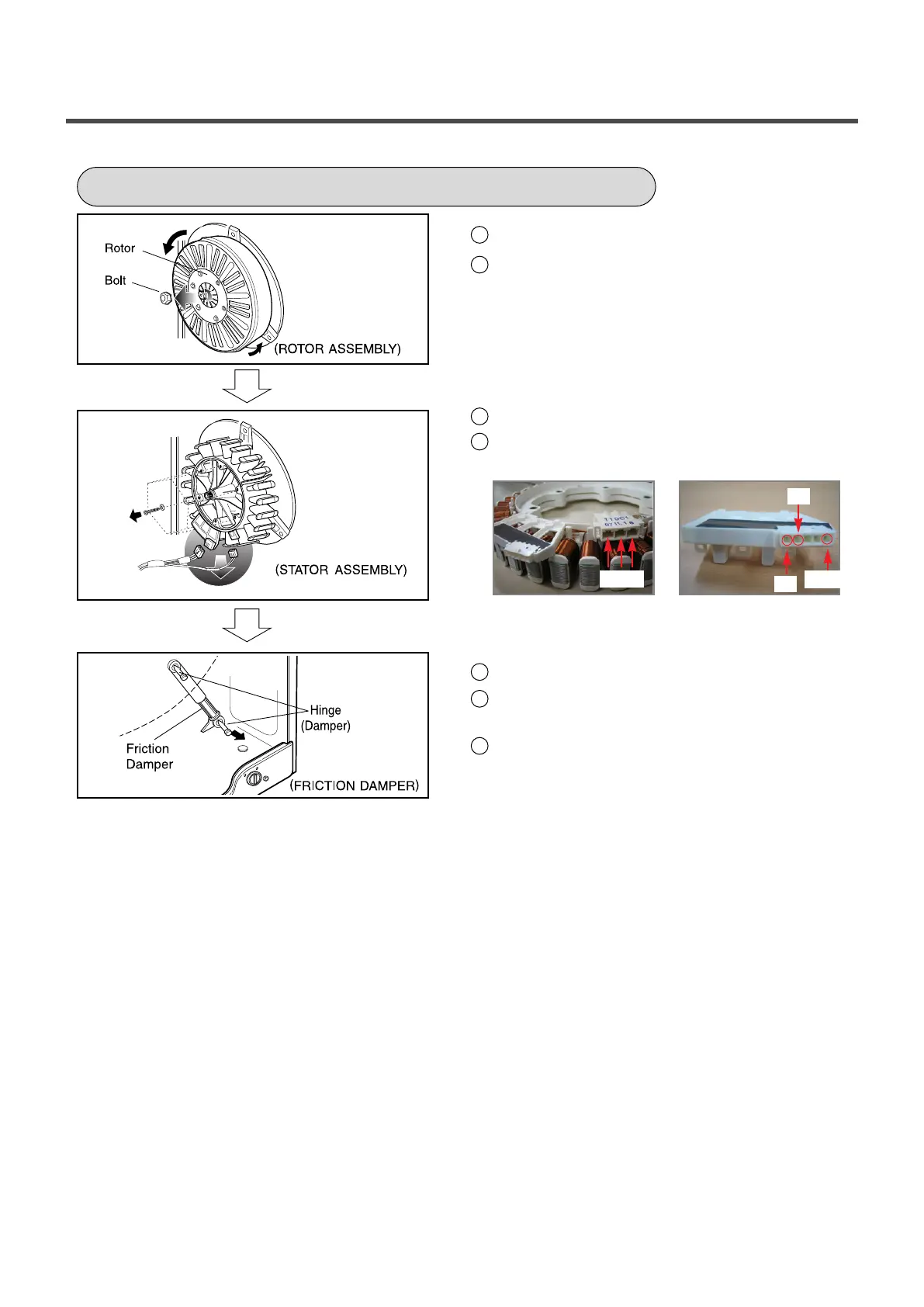

Remove the back cover.
2
After loosening the bolt, Rotor, pull out the
rotor.
1
Remove the 6 bolt from the stator.
2
Disconnect the 2 connectors.
1
Remove the hinges (Damper) at the Tub.
3
The hinge at the base is pulled off.
(To arrow direction)
2
The Hinge(Damper) at the base is pulled off
pressing on the snaps at the sharp end.
ROTOR ASSEMBLY, STATOR ASSEMBLY, FRICTION DAMPER
