- 2-42 -
■ KIA7805AP/API
THREE TERMINAL POSITIVE VOLTAGE REGULATORS 5V, 6V, 8V, 9V, 10V, 12, 15V, 18V, 24V.

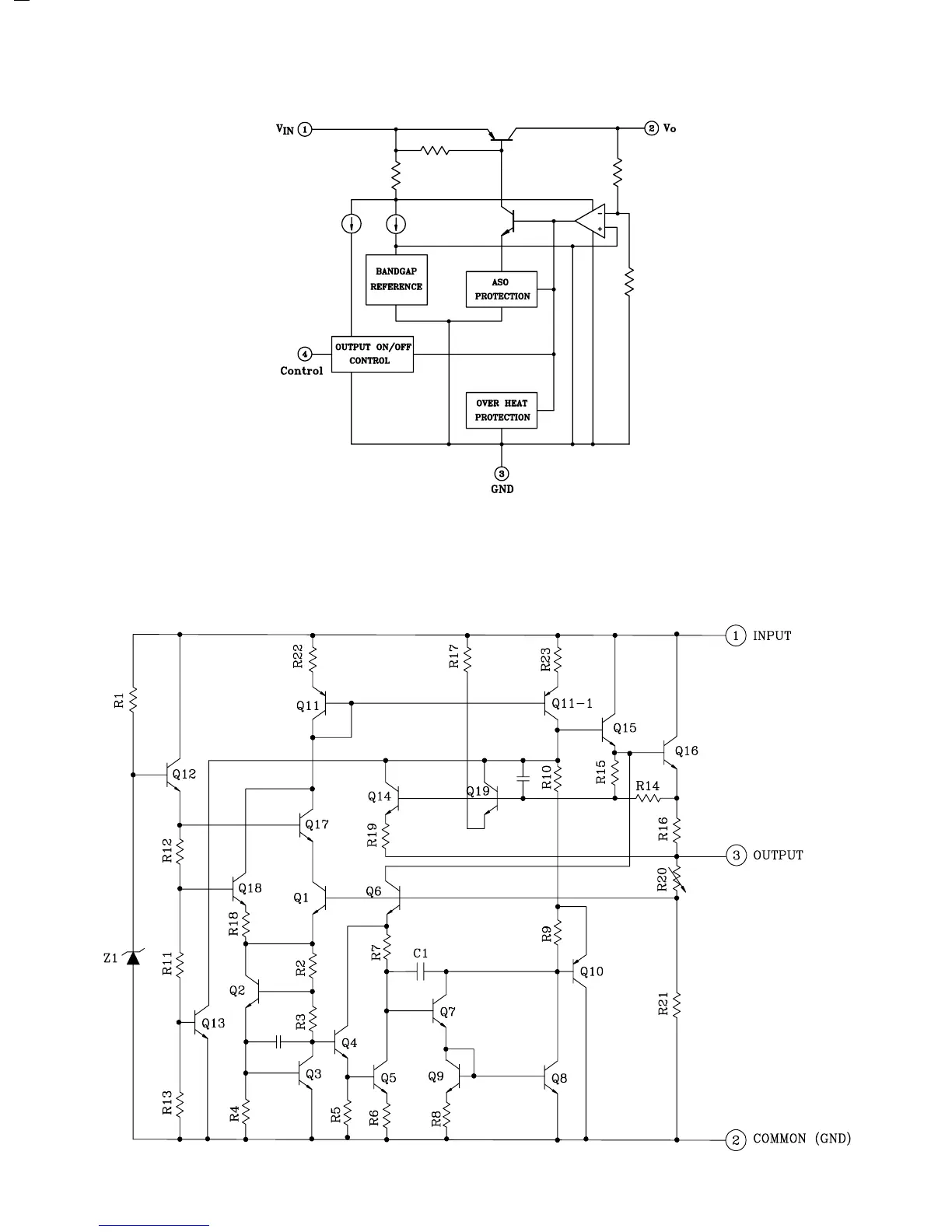

EQUIVALENT CIRCUIT
Block Diagram
