LG Flatron L1718S User Manual

2
CONTENTS
SPECIFICATIONS ................................................... 2
PRECAUTIONS ....................................................... 3
TIMING CHART ....................................................... 7
DISASSEMBLY ........................................................ 8
BLOCK DIAGRAM...................................................10
DISCRIPTION OF BLOCK DIAGRAM ................... 11
ADJUSTMENT ...................................................... 13
SERVICE OSD ............................................... .........14
TROUBLESHOOTING GUIDE .............................. 15
WIRING DIAGRAM ............................................... 22
EXPLODED VIEW ................................................... 24
REPLACEMENT PARTS LIST ............................... 25
SCHEMATIC DIAGRAM ......................................... 48
SPECIFICATIONS
1. LCD CHARACTERISTICS
Type : TFT Color LCD Module
Active Display Area : 17 inch
Pixel Pitch : 0.264 (H) x 0.264 (V)
Color Depth
: 16.2M colors
5. POWER SUPPLY
5-1. Power : AC 90~264V, 47.5~63Hz , <0.8A

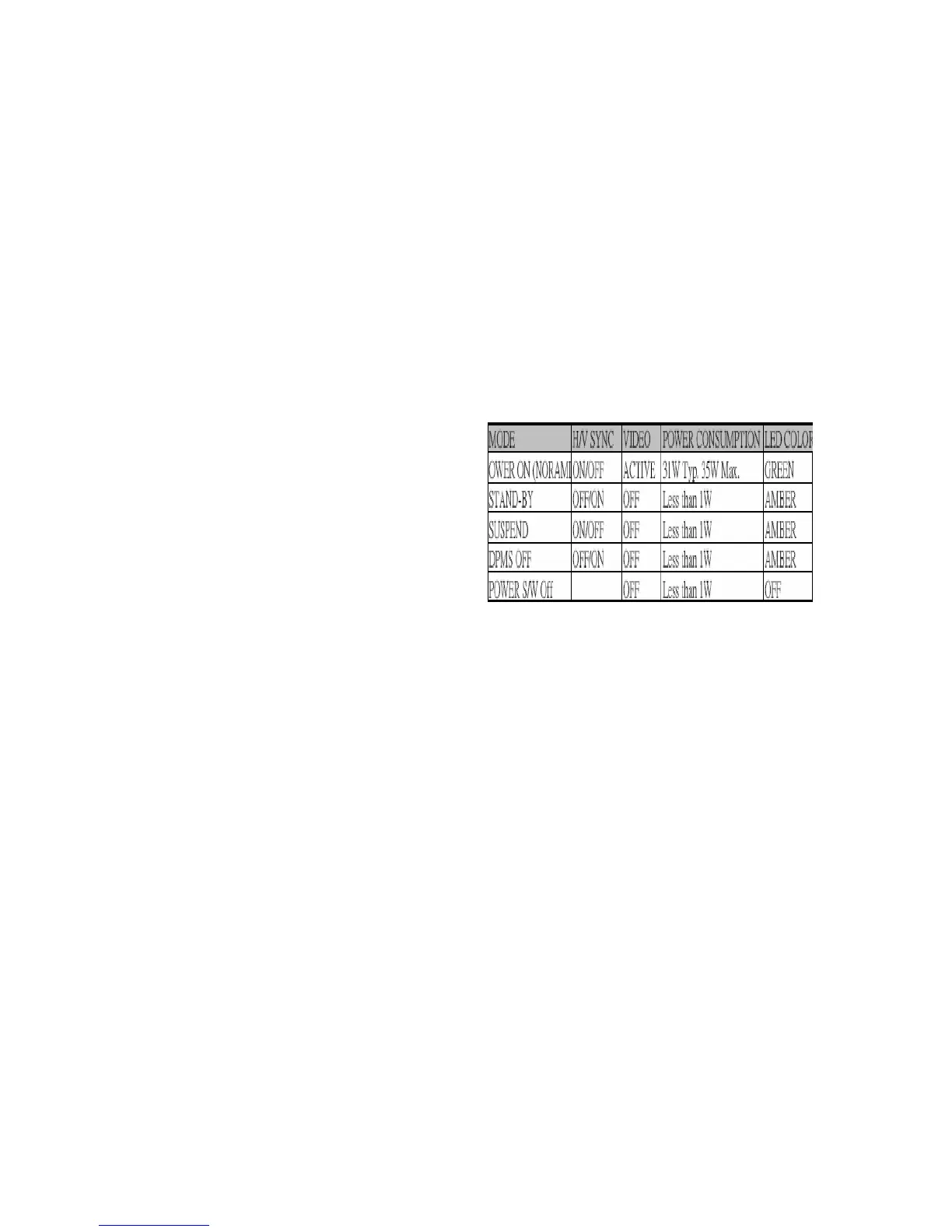

5-2. Power Consumption
Size : 358.5 (H) x 296.5 (V) x 17.5(D)
Electrical Interface : LVDS
Surface Treatment : Hard-coating(3H), Haze=25%
Anti-Glare treatment
Operating Mode
: Normally White, Transmissive mode
Backlight Unit : Top/Bottom edge side 4-CCFL
(Cold Cathode Fluorescent Lamp)
2. OPTICAL CHARACTERISTICS
2-1. Viewing Angle by Contrast Ratio ≥ 10
(a) For InnoLux MT170EN01 V.7(8ms),V9(5ms) panel
Left 75°(85°)/Right75°(85°);Top 75°(85°)
/Bottom60°(70°) at type CR≥10 (CR≥5)
(b)
For CLAA170EA07QG(8ms) ,CLAA170EA07P(5ms)
panel: Left 70°(85°)/Right70°(85°);Top
63°(85°)/Bottom67°(85°) at type CR≥10(CR≥5)
2-2. Luminance
(a) For
InnoLux MT170EN01 V.7 & V.9 panel:
300cd/m
2
(Typ.) 250cd/m
2
(Min.) (6500k);
200 cd/m
2
(Min.)(9300k)
(b)
For CLAA170EA07QG & 07P panel: 280cd/m
2
(Typ.)
250cd/m
2
(Min.) (6500k);200 cd/m
2
(Min.)(9300k)
2-3. Contrast Ratio
(a) For
InnoLux MT170EN01 V.7 & V.9 700:1 Typical
(b) For CLAA170EA07QG panel: 500:1 Typical
For CLAA170EA07P panel: 700:1 Typical
3. SIGNAL (Refer to the Timing Chart)
3-1. Sync Signal Type :
Separate Sync, Composite, SOG (Sync On Green)
3-2. Video Input Signal
1) Type : R, G, B Analog
2) Voltage Level : 0~0.71 V
a) Color 0, 0 : 0 Vp-p
b) Color 7, 0 : 0.467 Vp-p c)
Color 15, 0
: 0.714 Vp-p
3) Input Impedance : 75 Ω
3-3. Operating Frequency
Horizontal : 30 ~ 83kHz
Vertical : 56 ~ 775Hz
4 . Max. Resolution
D-sub Analog : 1280 x 1024@75Hz
6. ENVIRONMENT
6-1. Operating Temperature : 10°C~35°C (50°F~95°F)
(Ambient)
6-2. Relative Humidity : 10%~80%
(Non-condensing)
6-3. MTBF : 50,000 HRS with 90% Confidence
Lamp Life : 50,000 Hours(Min)
7. DIMENSIONS (with TILT/SWIVEL)
Width : 308.4 mm
Depth
: 180.1 mm
Height
: 380.7 mm
8. WEIGHT (with TILT/SWIVEL)
Net. Weight : 3.7 +/- 0.3 kg
Gross Weight
: 4.8 +/-0.4 kg
