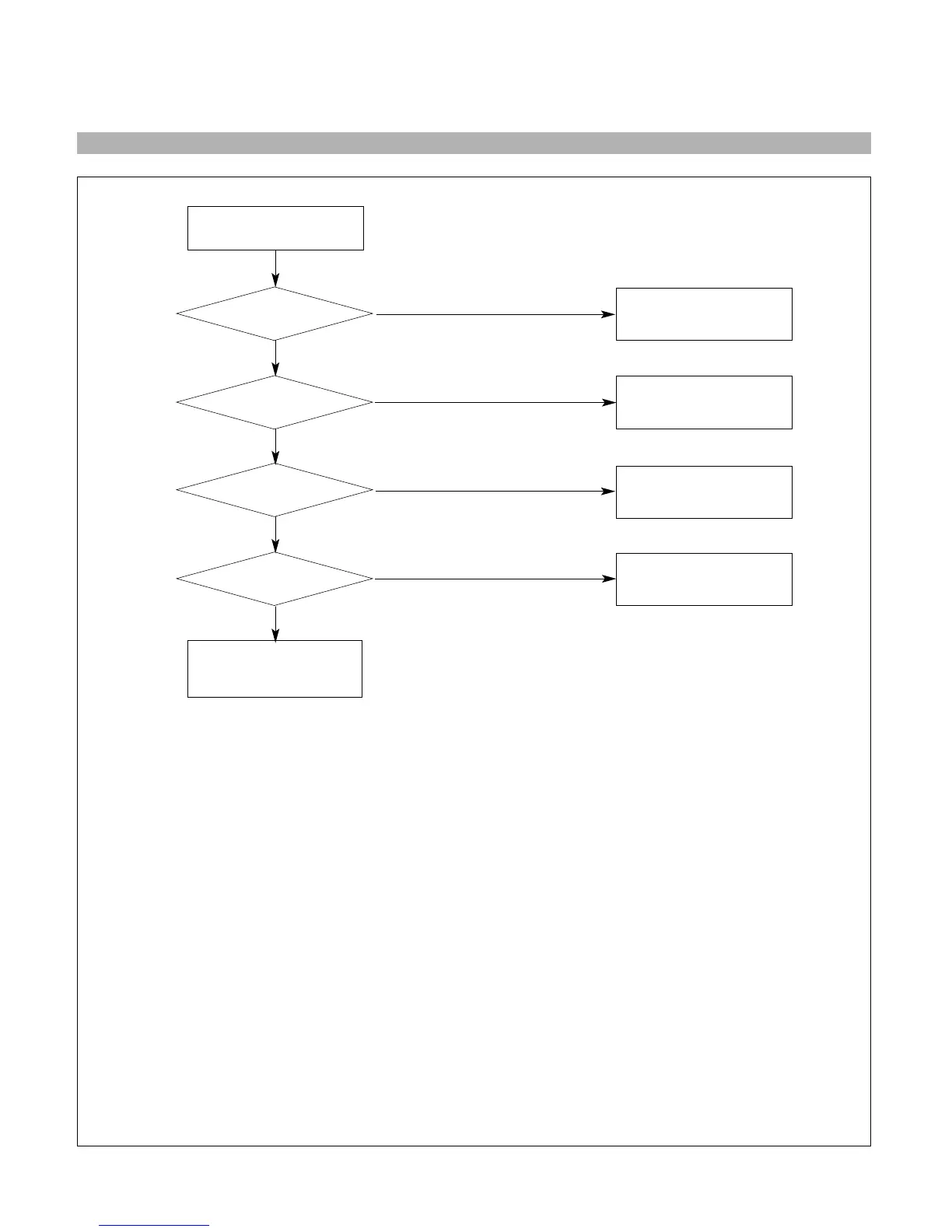

CHECK
Q953 COLLECTOR
VOLTAGE (0.5V)?
CHECK
P902?
CHECK
RL901?
CHECK
IC401 PIN 4 (5V)?
6. NO DEGAUSSING
NO DEGAUSSING
NO
NO
NO
NO
TROUBLE IN
TH901,
DEGAUSSING COIL
TROUBLE IN
IC401 (MICOM)
TROUBLE IN
D953
TROUBLE IN
P902
TROUBLE IN
RL901
YES
YES
YES
YES
- 23 -
