Stacking Coin
▶Coin Harness – provided by ESD

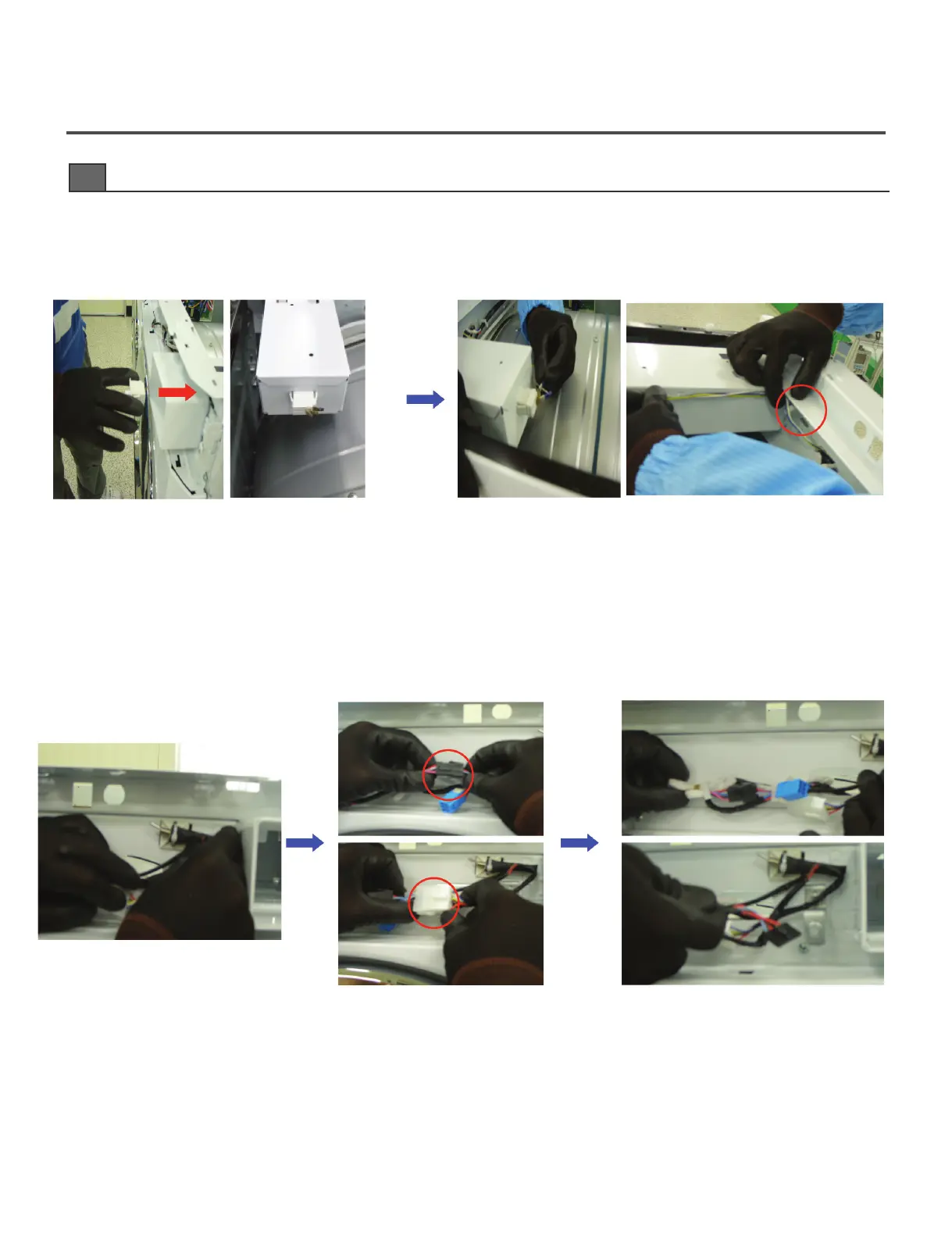

Assemble the switch
Insert the switch into the recess on the
back of the coin box. Face it toward the
front so the coin box will press the button
when it is in place.
Use an adhesive tie fastener and a cable
tie to affix the service switch to the front
panel.
The connectors should be visible on the
rear of the box for connection to the
harness later. Connect the coin box switch
at this time.
Installation Method (Dryer) – Coin Type Lower
44--22
To Next Page
