INSTALLATION
If the heights of the Freezer doors
are different
y
Method 1 is recommended.
y
For freezer doors, use spanner
2
.
1
(Method 1)
Open the door, and adjust the height by
screwing the nut above the foot with the
2
spanner.
2
(
Method 2, only allows a maximum of 3mm
of adjustment)
(1) Use the wider side of the number
2
spanner to turn locking nut (
)
clockwise to unscrew the locking nut.
(2) Use the narrower side of the spanner to
turn the adjustment hinge pin (
)
clockwise or ( ) counterclockwise,
and adjust the gap difference between the
fridge and the freezer door.
(3) After the door heights are adjusted,
completely tighten the locking nut (
)
counterclockwise.
CAUTION
Do not adjust the hinge pin height level
too much. The hinge pin can fall out.
(Range of height adjustment : Max. 3mm)

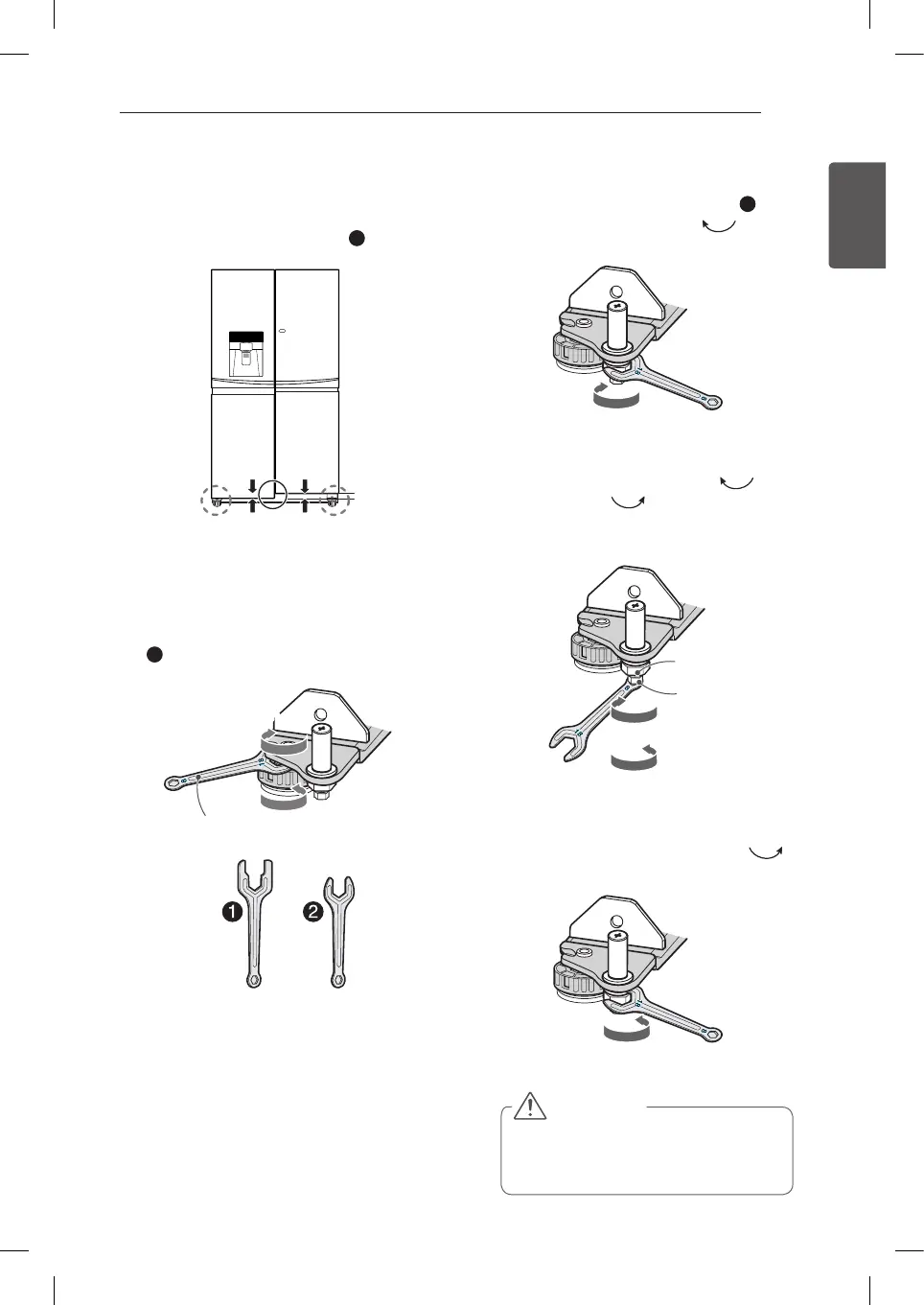

Height difference
Locking nut
Adjustment
hinge pin
Lower door
Lift door
Unscrew nut
Tighten nut
Spanner
Lower door
Lift doorLift door
