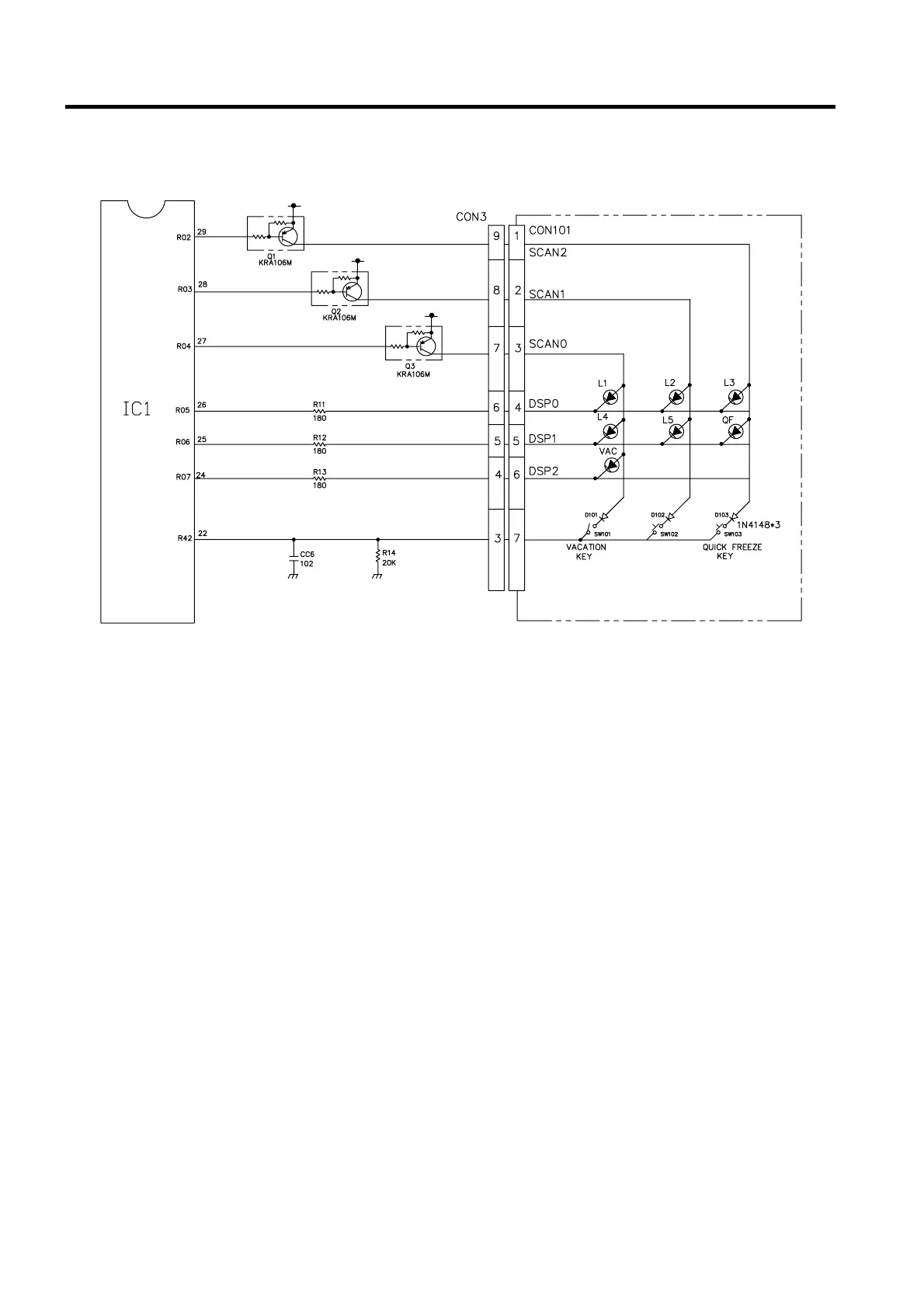

8) LIGHTING CIRCUITS OF KEY BUTTON INPUT AND DISPLAY PARTS
The above circuit is to judge the operation conditions of function key and to light each function indicating LED. It is operated
by SCAN method.
- 27 -
FREEZER TEMP
CONTROL KEY
DISPLAY PART
